Plans techniques
Plans d'installation et d'assemblage cotés liés aux pages produits Xiechang.
207 affichés
Aucun plan ne correspond aux filtres actuels.

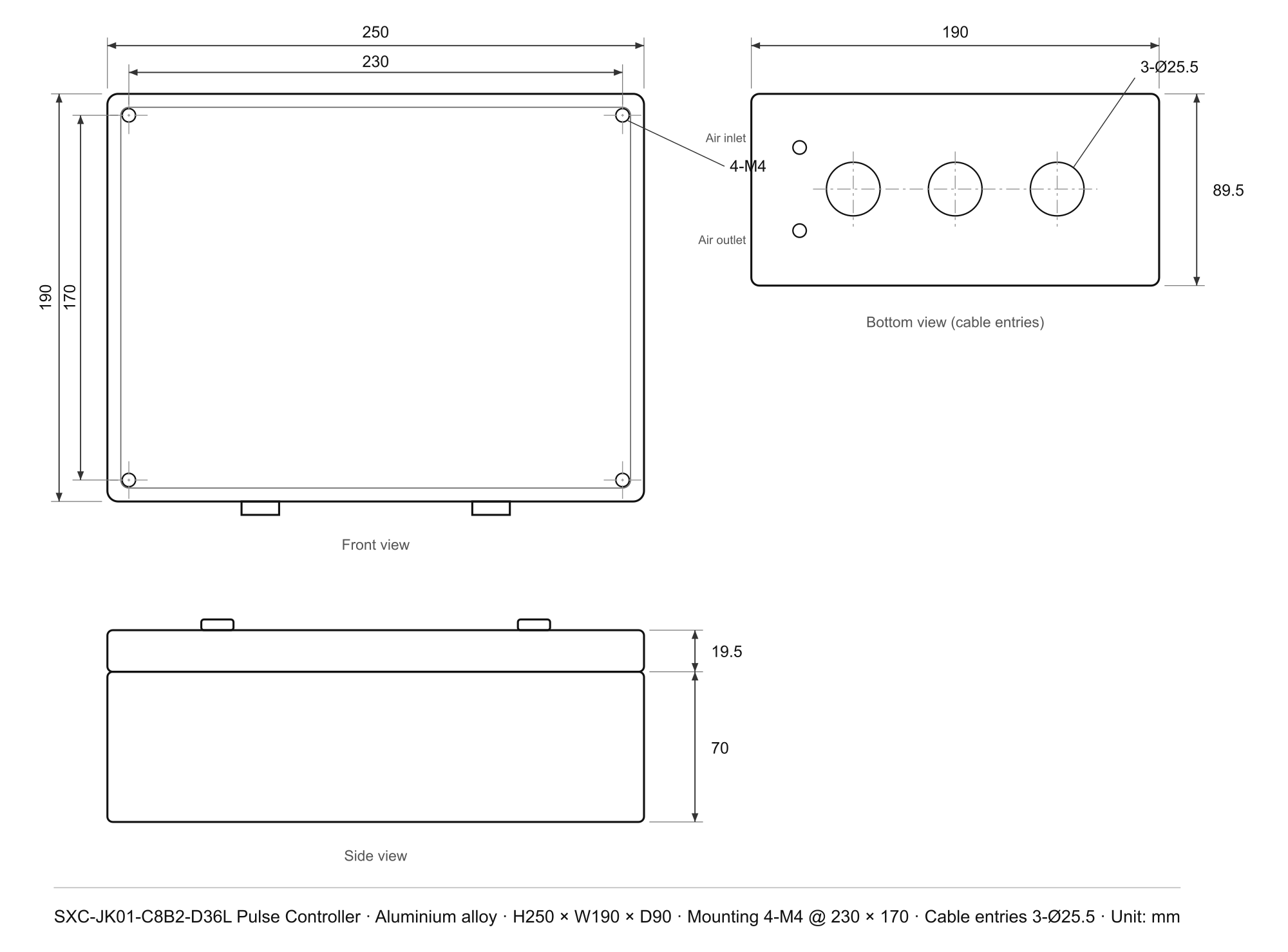

Contrôleur à impulsions 1–36 voies SXC-C8B2
🔍 Cliquer pour agrandirSXC-JK01-C8B2-D36L
| Overall height | 250 mm |
|---|---|
| Overall width | 190 mm |
| Depth | 90 mm (lid 19.5 + body 70) |
| Mounting holes | 4-M4 |
| Mounting hole spacing | 230 × 170 mm |
| Cable entries | 3-Ø25.5 mm |
Contrôleur à impulsions à pression différentielle Delta P SXC-D32L

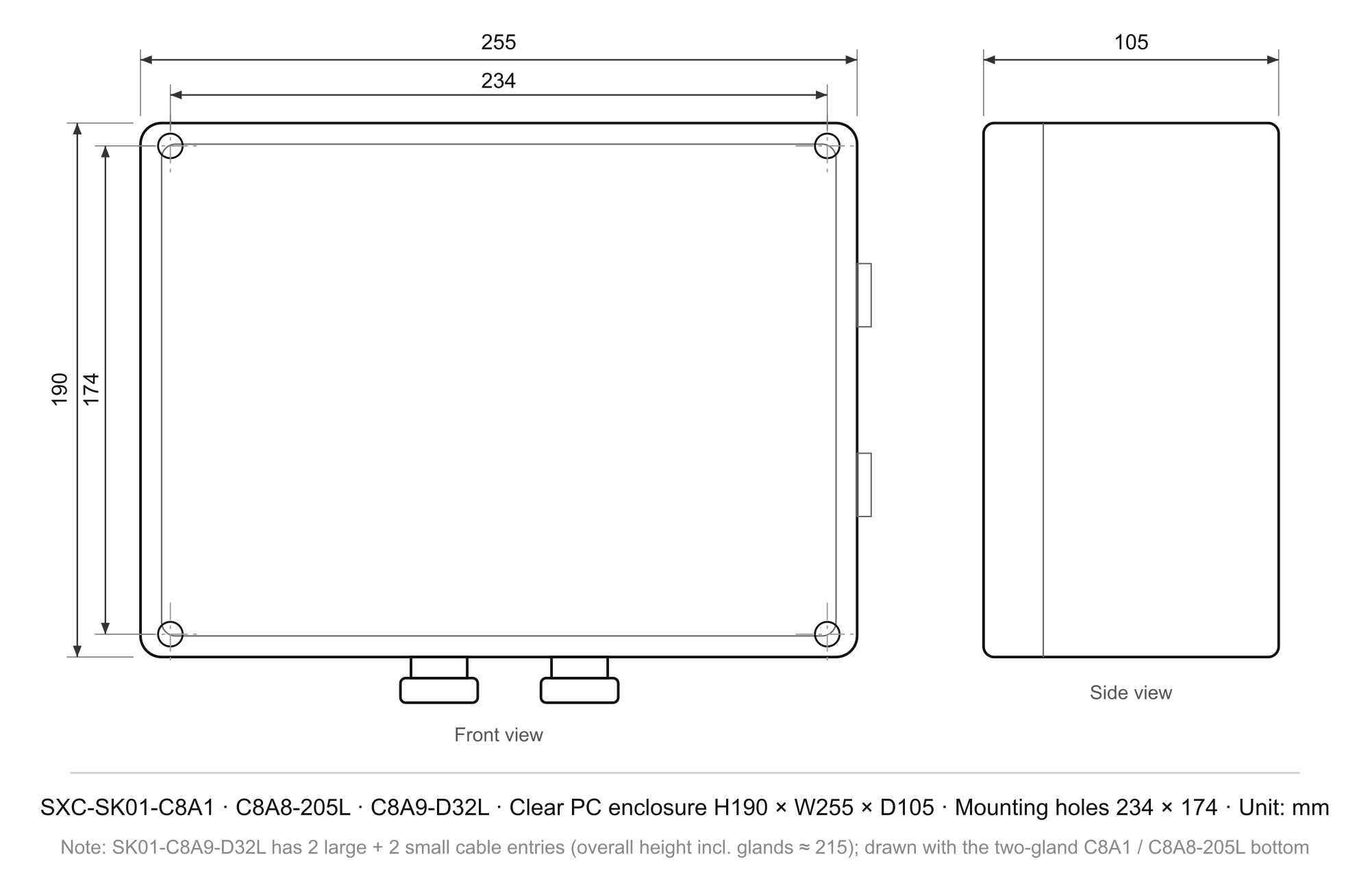

🔍 Cliquer pour agrandirSXC-SK01-C8A9-D32L
| Overall width | 255 mm |
|---|---|
| Overall height | 190 mm |
| Depth | 105 mm |
| Mounting hole spacing (W) | 234 mm |
| Mounting hole spacing (H) | 174 mm |

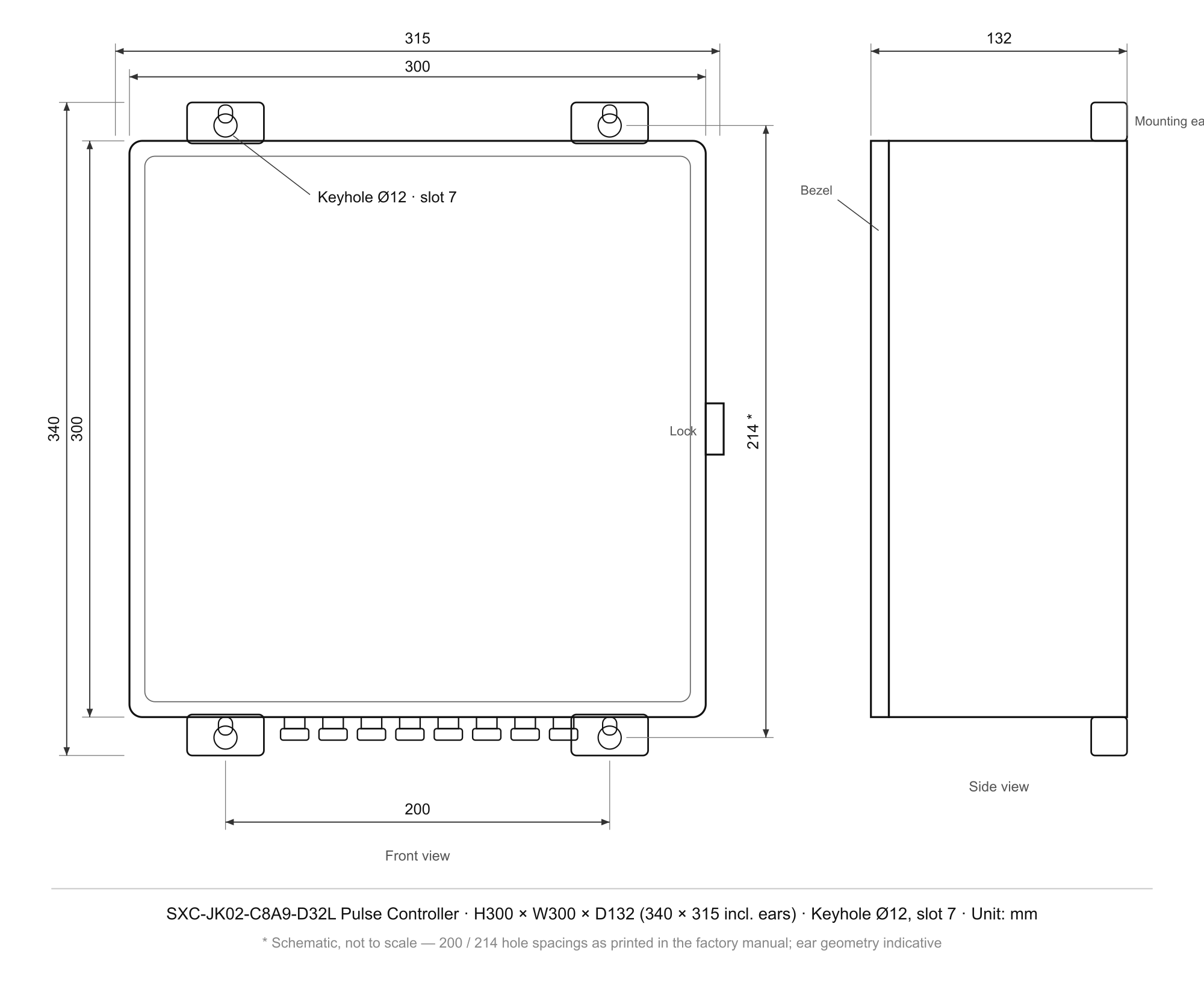

🔍 Cliquer pour agrandirSXC-JK02-C8A9-D32L
| Overall height | 300 mm |
|---|---|
| Overall width | 300 mm |
| Depth | 132 mm |
| Incl. mounting ears | 340 × 315 mm |
| Keyhole slots | Ø12 · slot width 7 mm |
| Ear hole spacing | 200 / 214 mm |
Contrôleur à impulsions hors ligne SXC-SK01-C8A8-205L
🔍 Cliquer pour agrandirSXC-SK01-C8A8-205L
| Overall width | 255 mm |
|---|---|
| Overall height | 190 mm |
| Depth | 105 mm |
| Mounting hole spacing (W) | 234 mm |
| Mounting hole spacing (H) | 174 mm |
Contrôleur à impulsions SXC-SK01-C8A1
🔍 Cliquer pour agrandirSXC-SK01-C8A1
| Overall width | 255 mm |
|---|---|
| Overall height | 190 mm |
| Depth | 105 mm |
| Mounting hole spacing (W) | 234 mm |
| Mounting hole spacing (H) | 174 mm |
DCF-F-T Électrovanne à impulsions antidéflagrante à passage direct

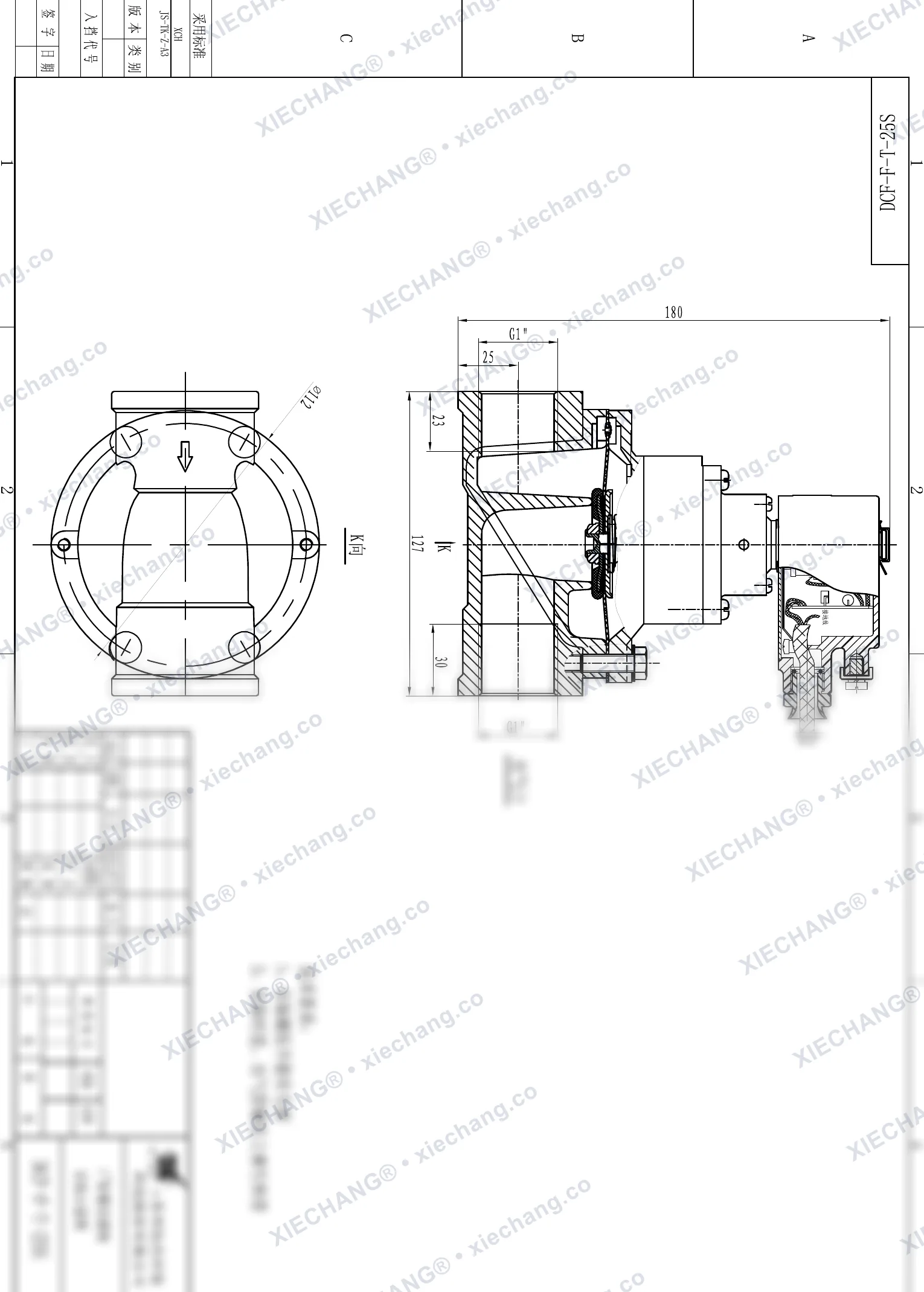

🔒 Dimensions disponibles sur demandeDCF-F-T-25S
| Overall length | 180 mm |
|---|---|
| Inlet length | 25 mm |
| Port top offset | 🔒 |
| Body height | 127 mm |
| Port bottom offset | 🔒 |
| Flange diameter | 🔒 |

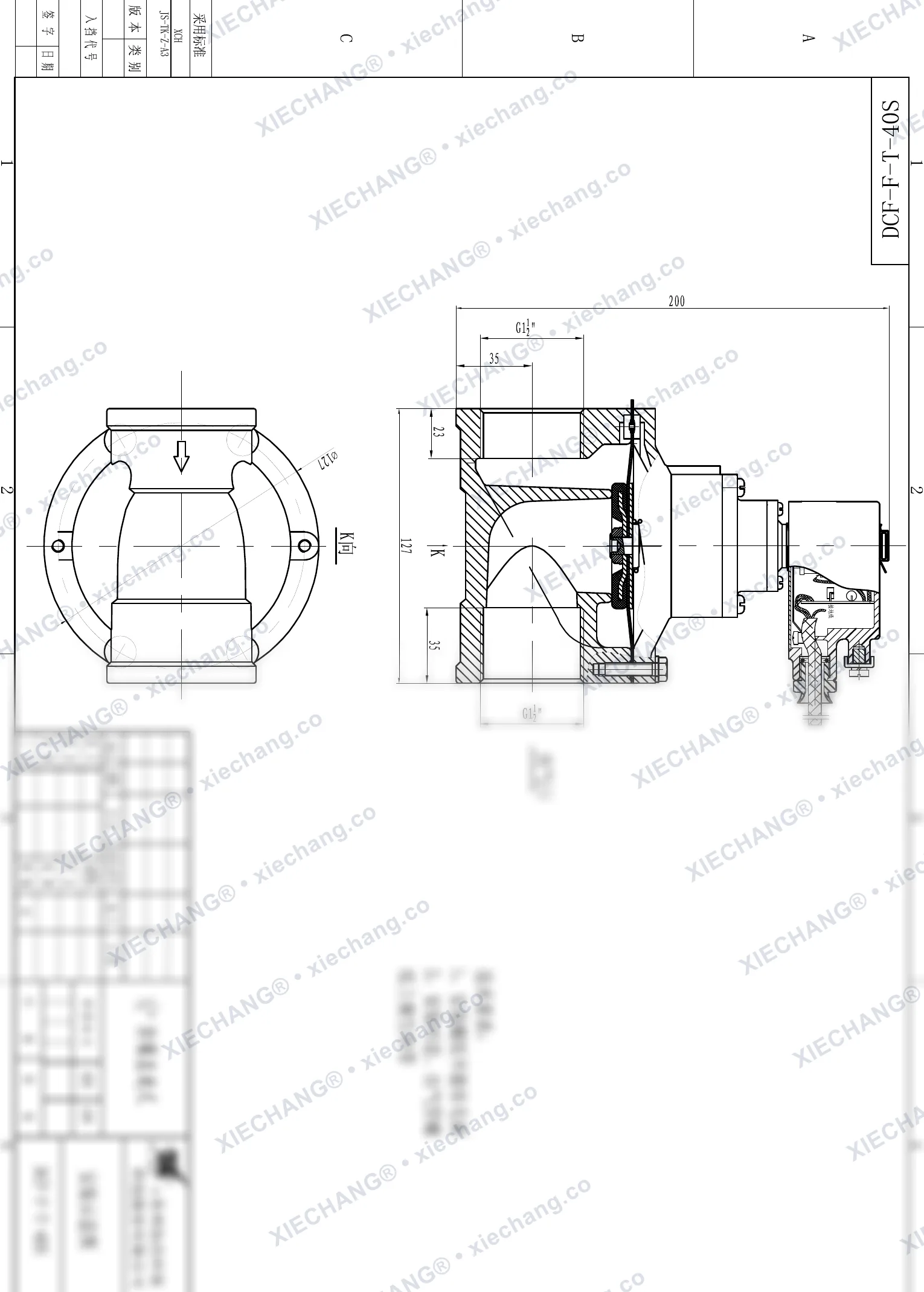

🔒 Dimensions disponibles sur demandeDCF-F-T-40S
| Overall length | 200 mm |
|---|---|
| Inlet length | 35 mm |
| Port top offset | 🔒 |
| Body height | 127 mm |
| Port bottom offset | 🔒 |
| Flange diameter | 🔒 |

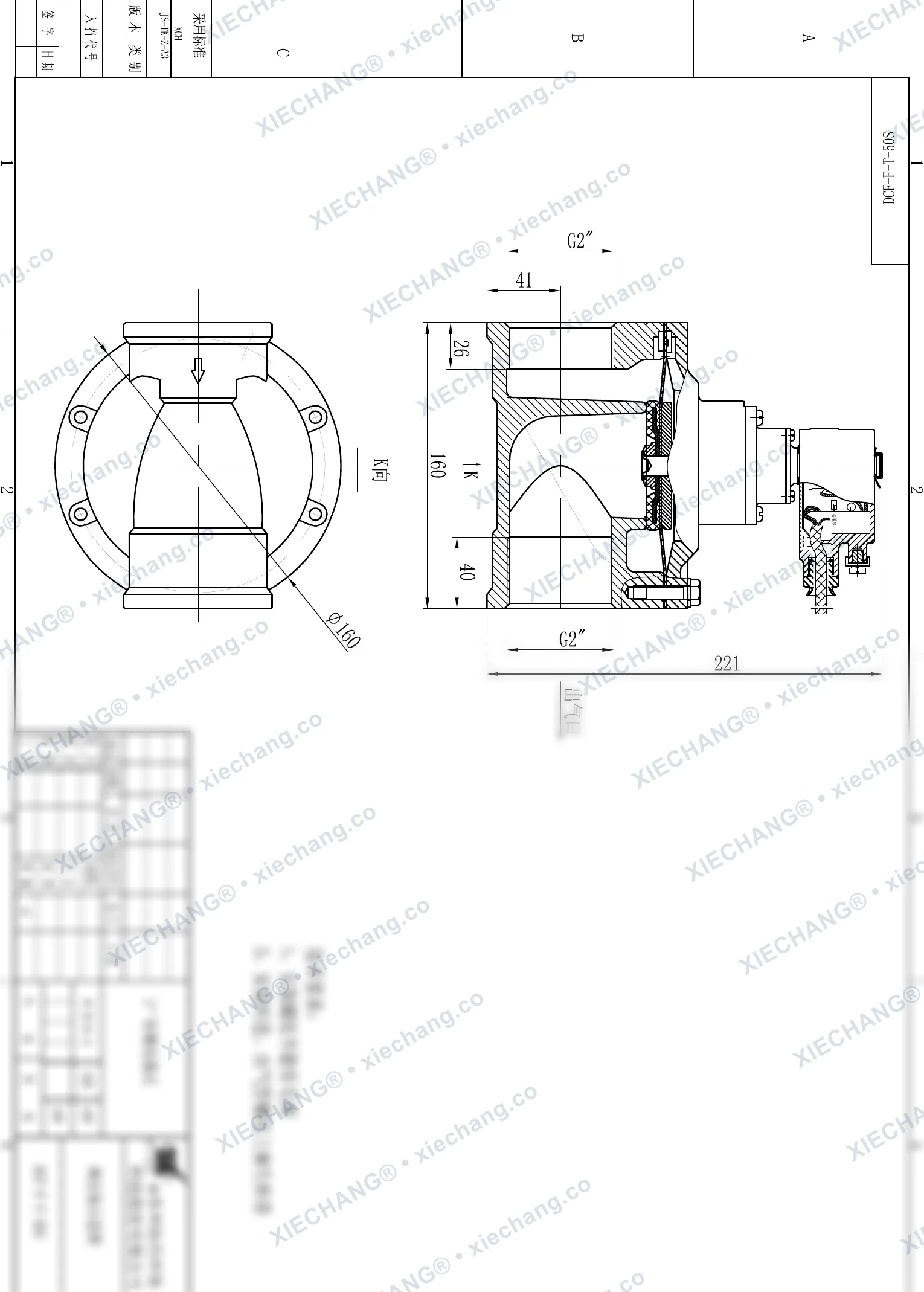

🔒 Dimensions disponibles sur demandeDCF-F-T-50S
| Overall length | 221 mm |
|---|---|
| Flange diameter | Ø160 mm |
| Port center height | 🔒 |
| Inlet depth | 41 mm |
| Top offset | 🔒 |
| Bottom offset | 🔒 |
DCF-F-Y Électrovanne à impulsions antidéflagrante immergée pour filtre à manches

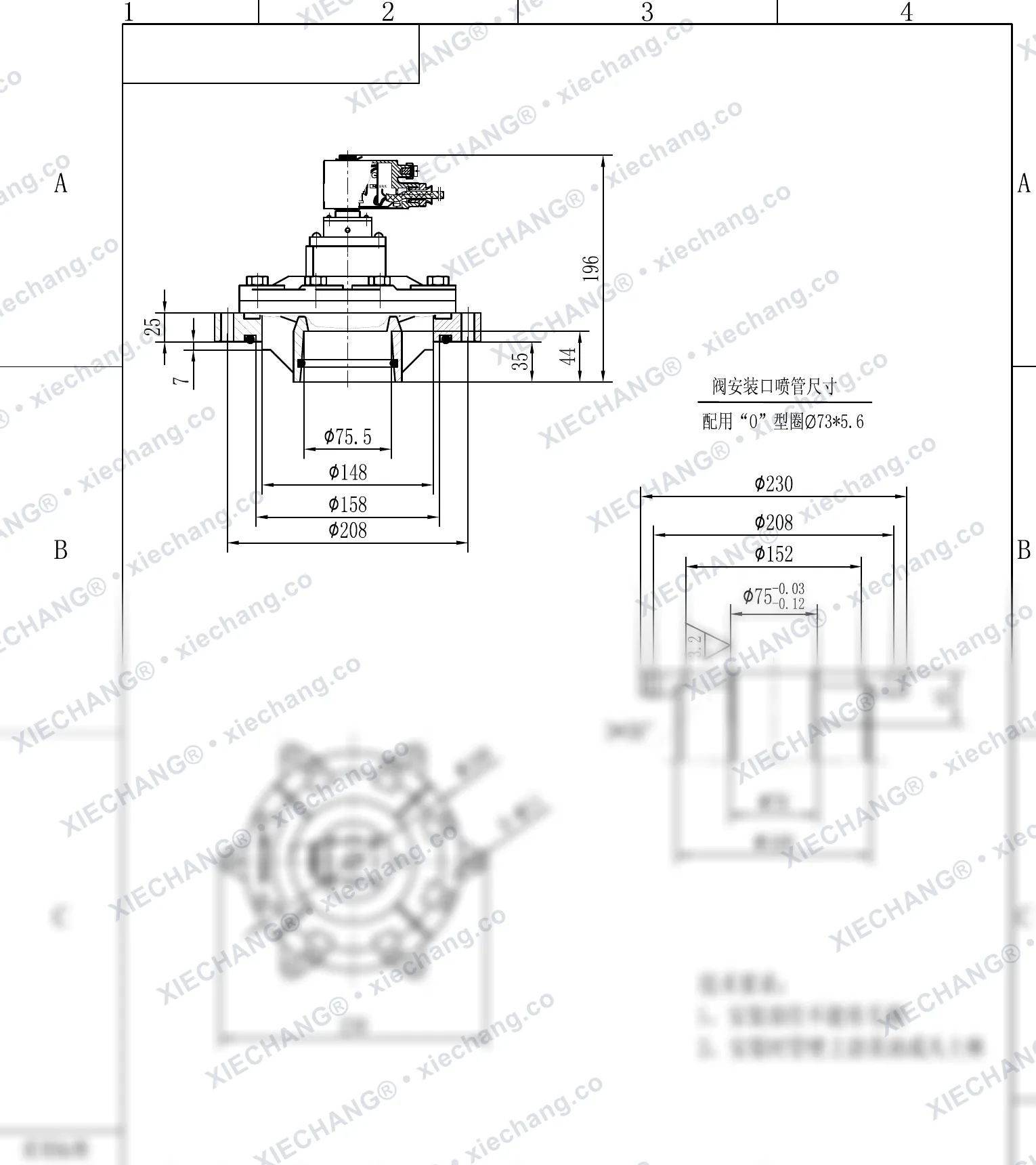

🔒 Dimensions disponibles sur demandeDCF-F-Y-62S
| Overall height | 196 mm |
|---|---|
| Flange outer diameter | Ø208 mm |
| Bolt circle diameter | Ø188 mm |
| Port diameter | Ø75.5 mm |
| Seat bolt circle | Ø148 mm |
| Inlet height | 35 mm |
| Flange thickness | 25 mm |
| Nozzle flange diameter | Ø230 mm |
| Nozzle bolt circle | Ø152 mm |
| Nozzle bore diameter | Ø75 mm |
| Nozzle pipe diameter | Ø76 mm |
| Nozzle pipe outer diameter | 🔒 |
| Nozzle depth | 🔒 |
| O ring | 🔒 |

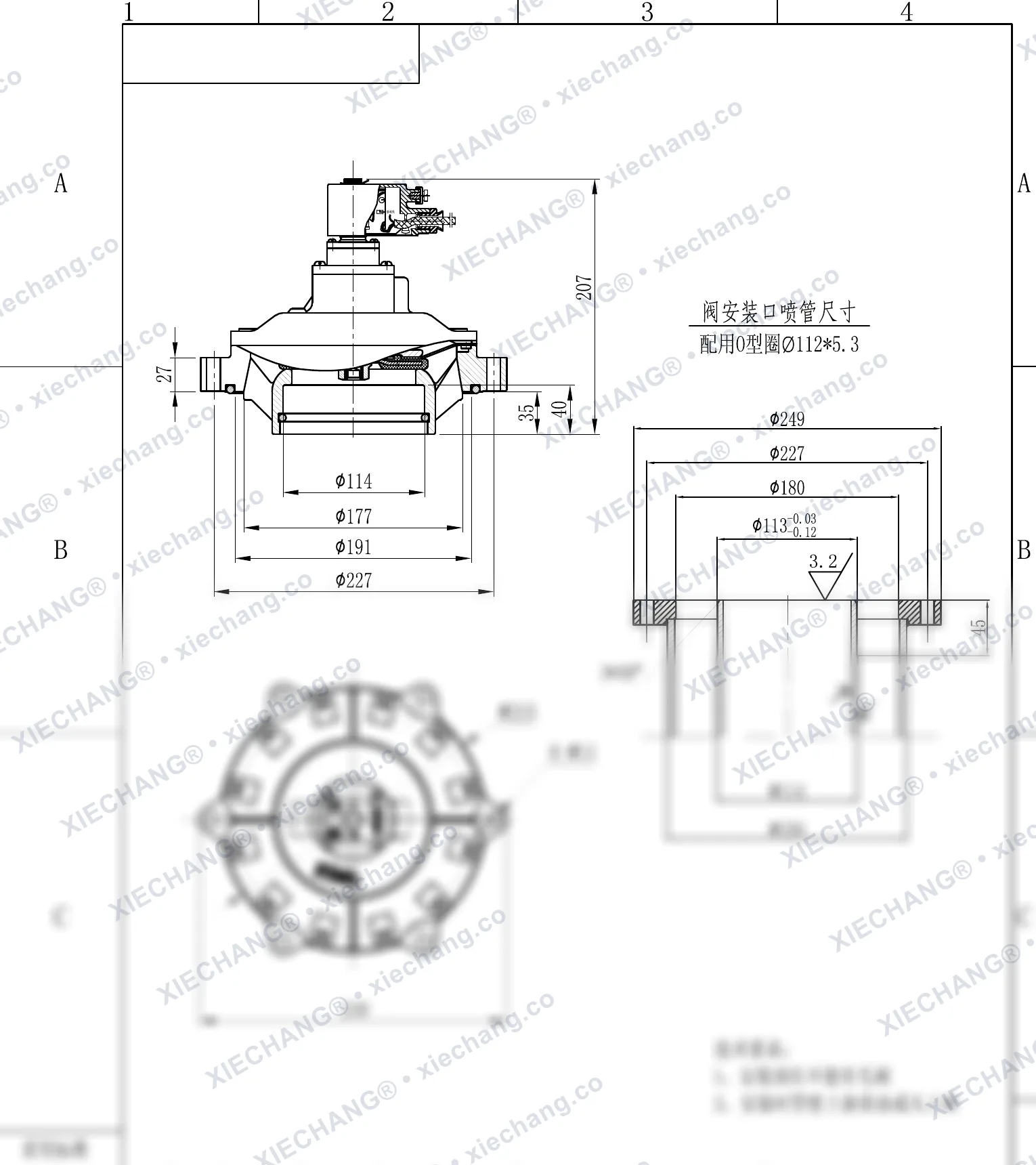

🔒 Dimensions disponibles sur demandeDCF-F-Y-102S
| Overall height | 🔒 |
|---|---|
| Flange outer diameter | 🔒 |
| Bolt circle diameter | 🔒 |
| Port diameter | Ø114 mm |
| Seat bolt circle | Ø177 mm |
| Inlet height | 35 mm |
| Flange thickness | 27 mm |
| Nozzle flange diameter | Ø249 mm |
| Nozzle bolt circle | Ø180 mm |
| Nozzle bore diameter | Ø113 mm |
| Nozzle pipe diameter | Ø114 mm |
| Nozzle pipe outer diameter | Ø194 mm |
| Nozzle depth | 45 mm |
| O ring | 112 mm |

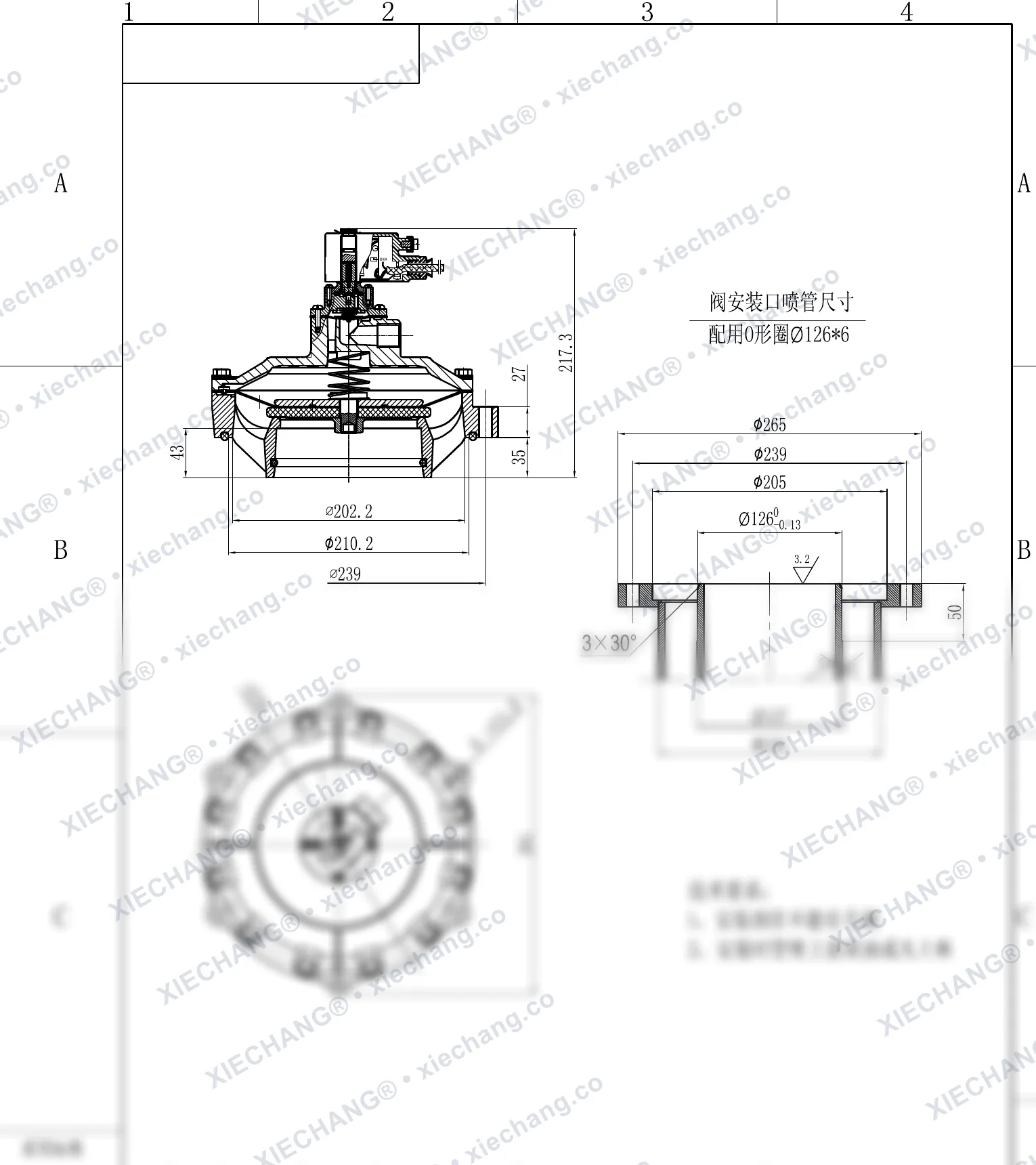

🔒 Dimensions disponibles sur demandeDCF-F-Y-115S
| Overall height | 217.3 mm |
|---|---|
| Flange outer diameter | Ø239 mm |
| Bolt circle diameter | Ø239 mm |
| Port diameter | Ø202.2 mm |
| Seat bolt circle | Ø210.2 mm |
| Inlet height | 35 mm |
| Flange thickness | 27 mm |
| Nozzle flange diameter | Ø265 mm |
| Nozzle bolt circle | Ø205 mm |
| Nozzle bore diameter | Ø126 mm |
| Nozzle pipe diameter | 🔒 |
| Nozzle pipe outer diameter | Ø194 mm |
| Nozzle depth | 🔒 |
| O ring | 🔒 |

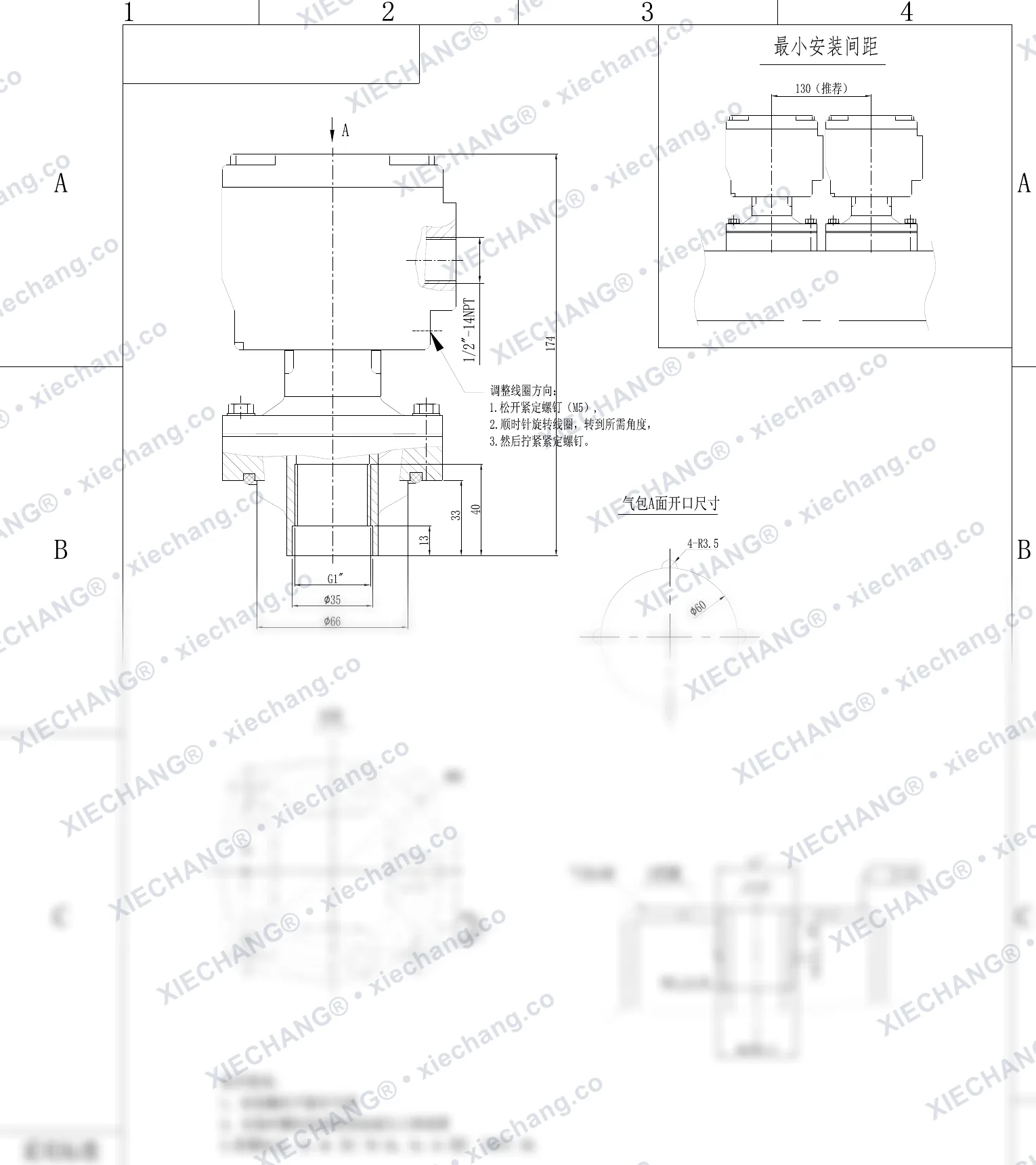

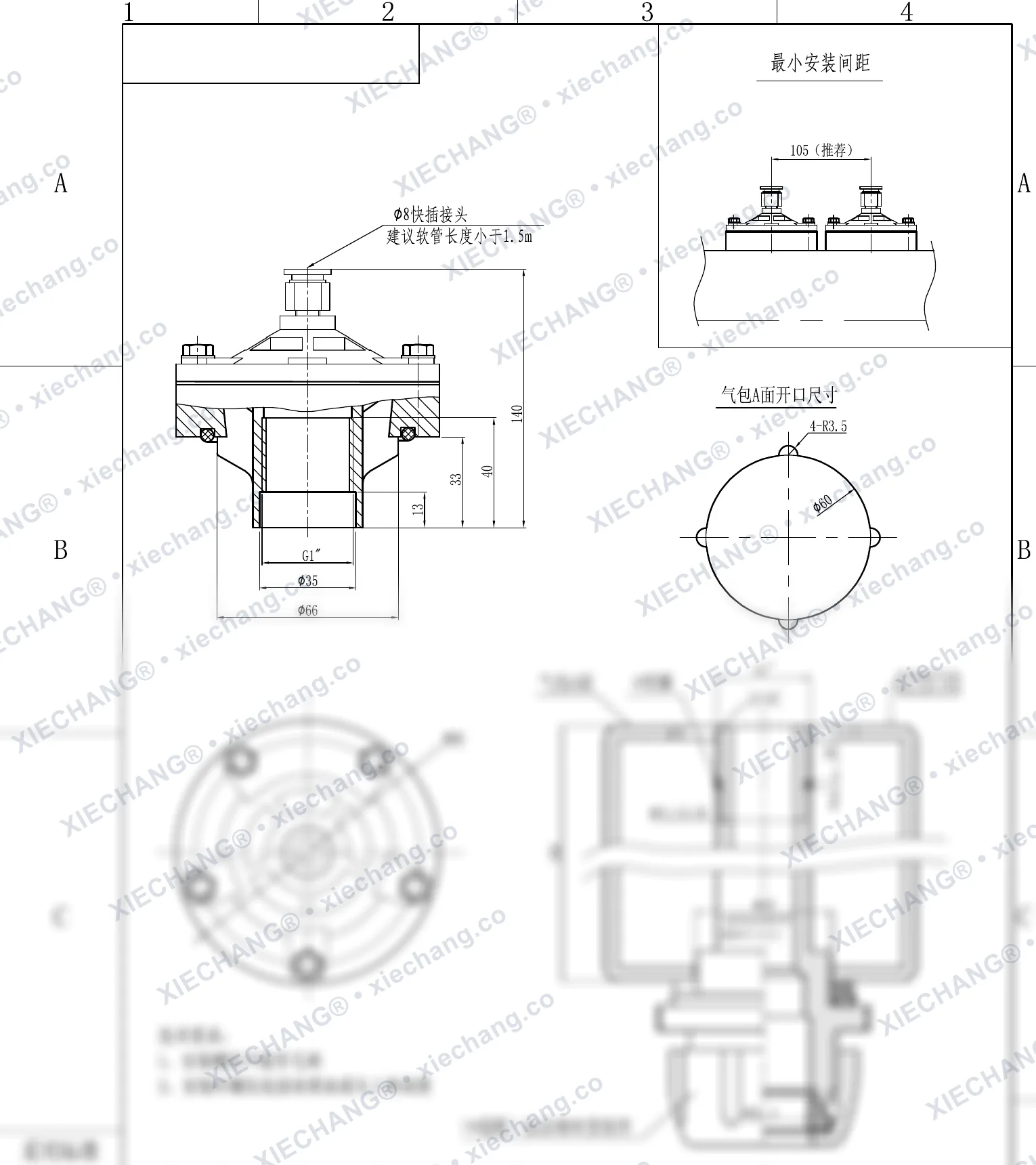

🔒 Dimensions disponibles sur demandeDCF-F-Y-25
| Overall height | 🔒 |
|---|---|
| Body diameter | 🔒 |
| Port diameter | 🔒 |
| Inlet height | 33 mm |
| Bolt circle diameter | Ø95 mm |
| Opening diameter | Ø60 mm |
| Opening bore | Ø31 mm |
| Opening depth | 20 mm |
🔒 Dimensions disponibles sur demandeDCF-F-Y-40S
| Overall height | 🔒 |
|---|---|
| Flange diameter | 🔒 |
| Port diameter | Ø48 mm |
| Seat bolt circle | Ø73 mm |
| Inlet height | 40 mm |
| Mounting flange diameter | Ø112 mm |
| Opening diameter | Ø74 mm |
| Opening bore | Ø45 mm |
| Opening depth | 🔒 |

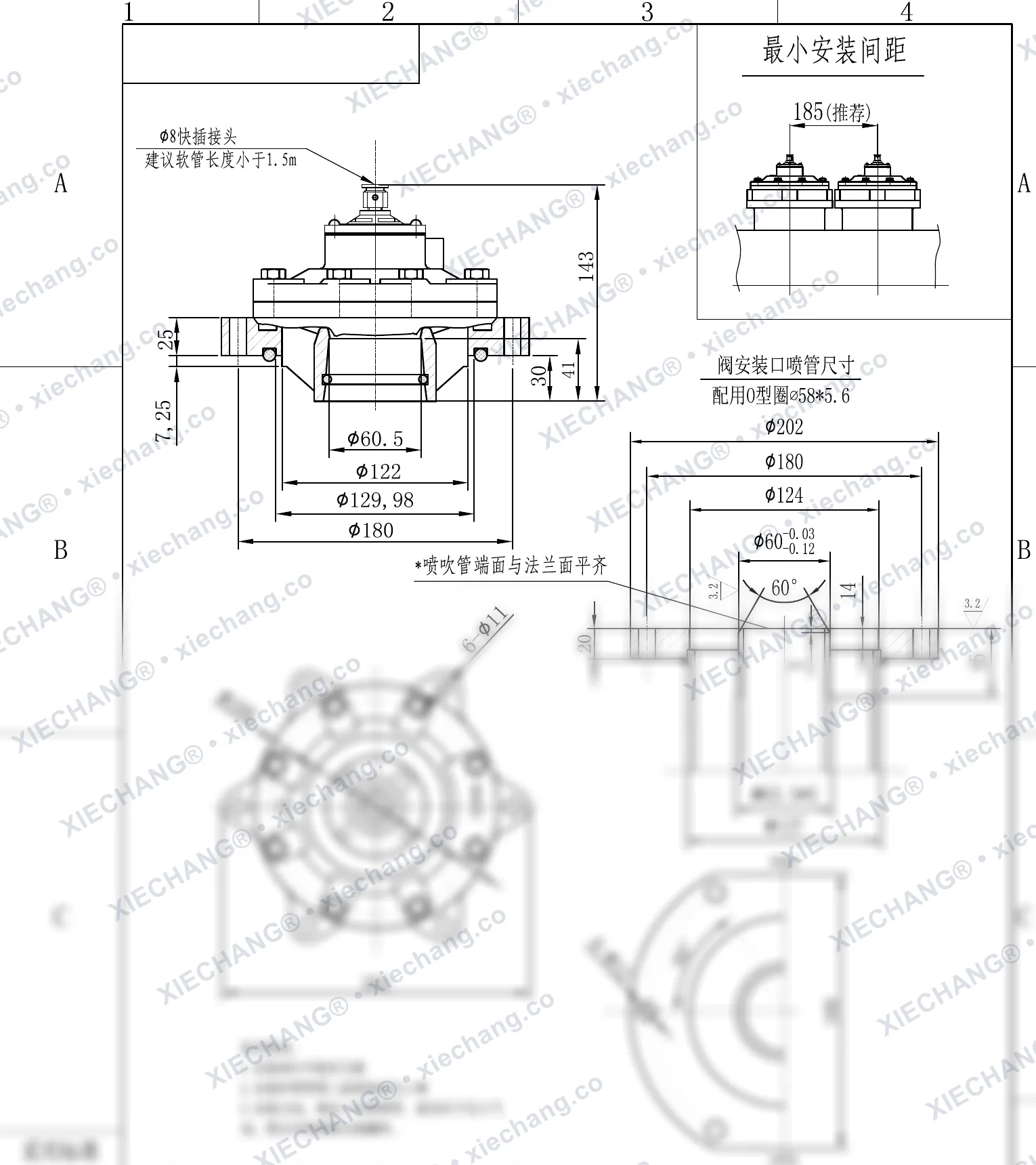

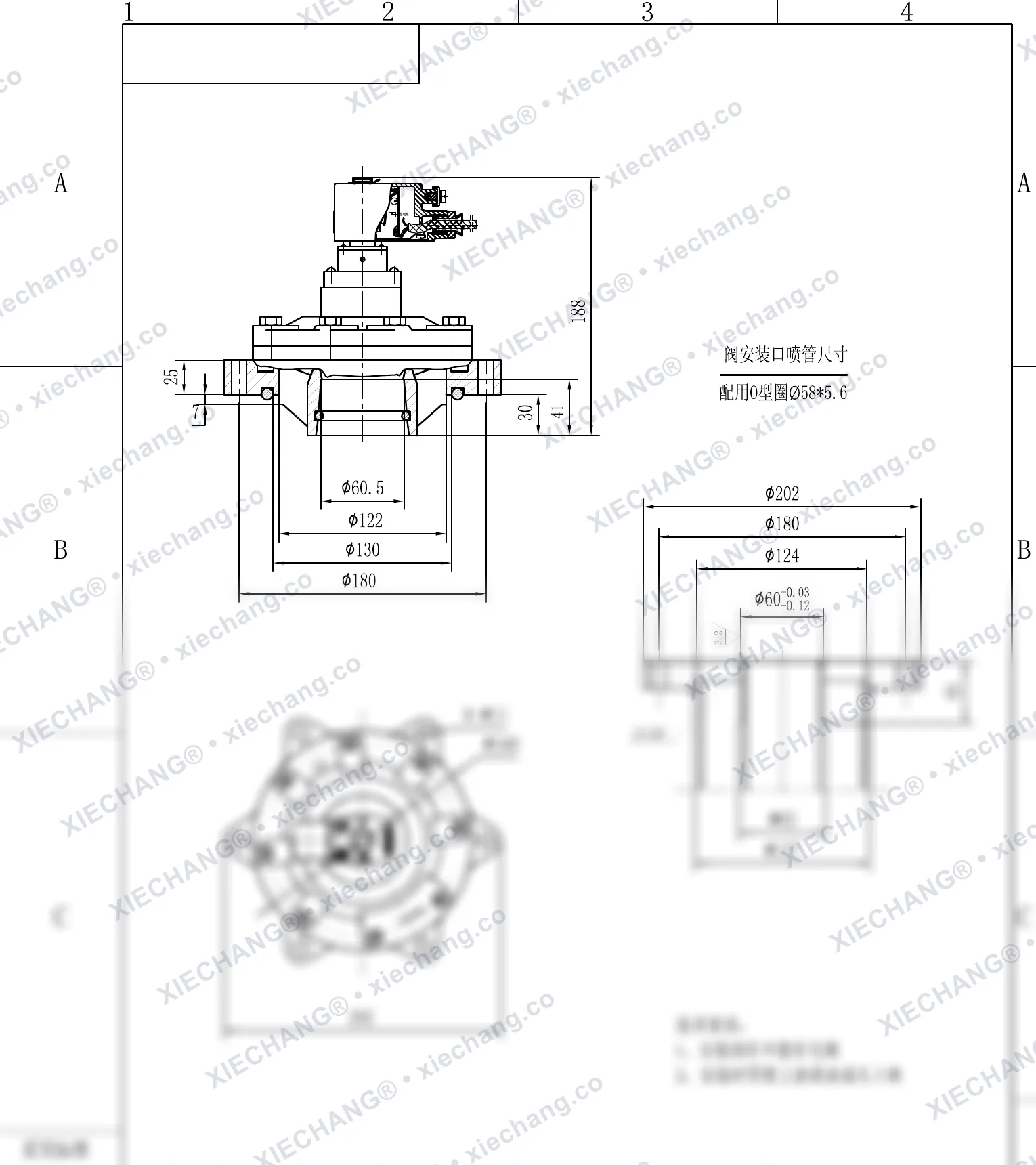

🔒 Dimensions disponibles sur demandeDCF-F-Y-50S
| Overall height | 188 mm |
|---|---|
| Flange outer diameter | Ø180 mm |
| Bolt circle diameter | 🔒 |
| Port diameter | Ø60.5 mm |
| Seat bolt circle | Ø122 mm |
| Inlet height | 30 mm |
| Flange thickness | 25 mm |
| Nozzle flange diameter | Ø202 mm |
| Nozzle bolt circle | 🔒 |
| Nozzle bore diameter | 🔒 |
| Nozzle pipe diameter | Ø63 mm |
| Nozzle pipe outer diameter | Ø127 mm |
| Nozzle depth | 45 mm |
| O ring | 58 mm |

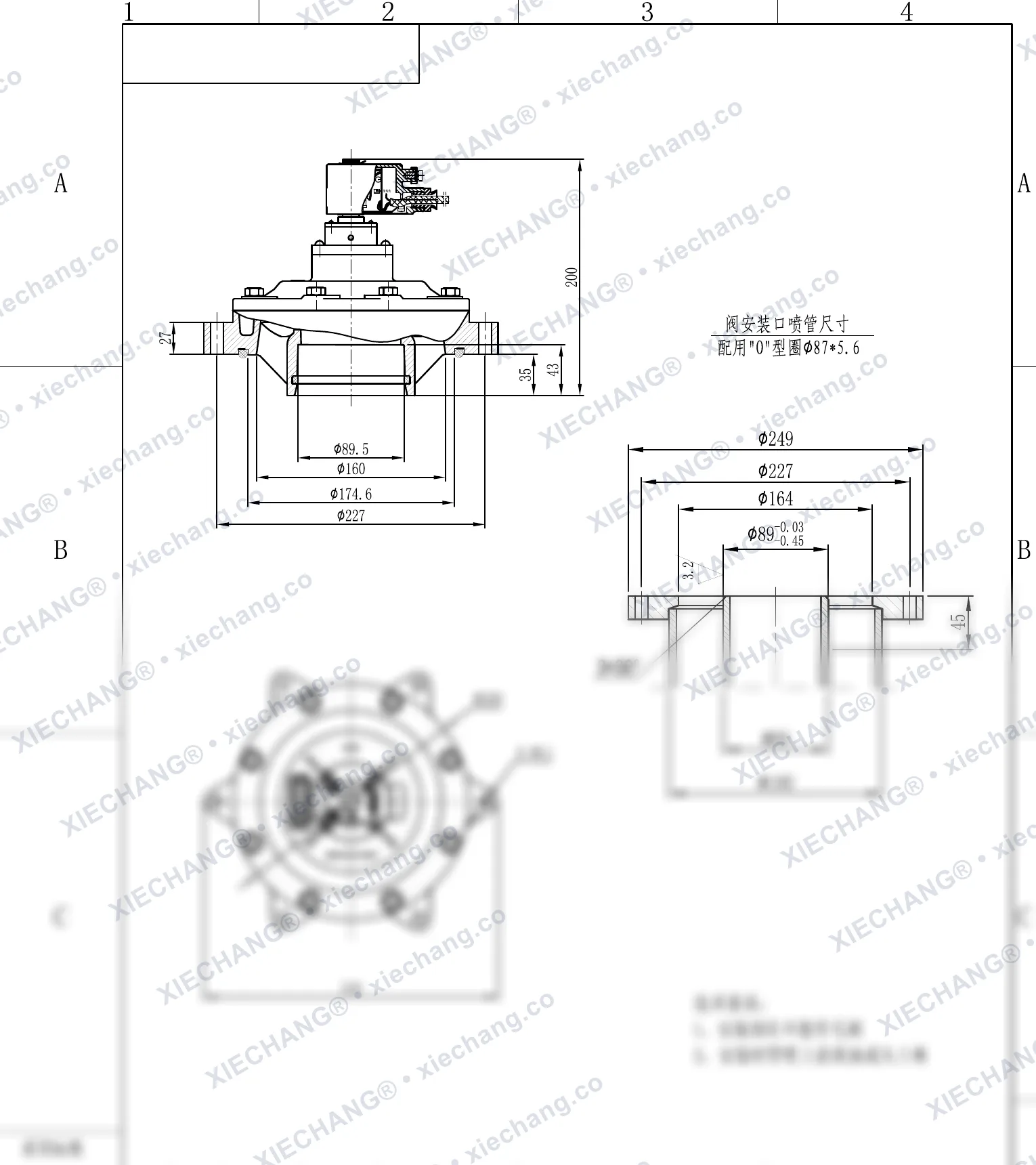

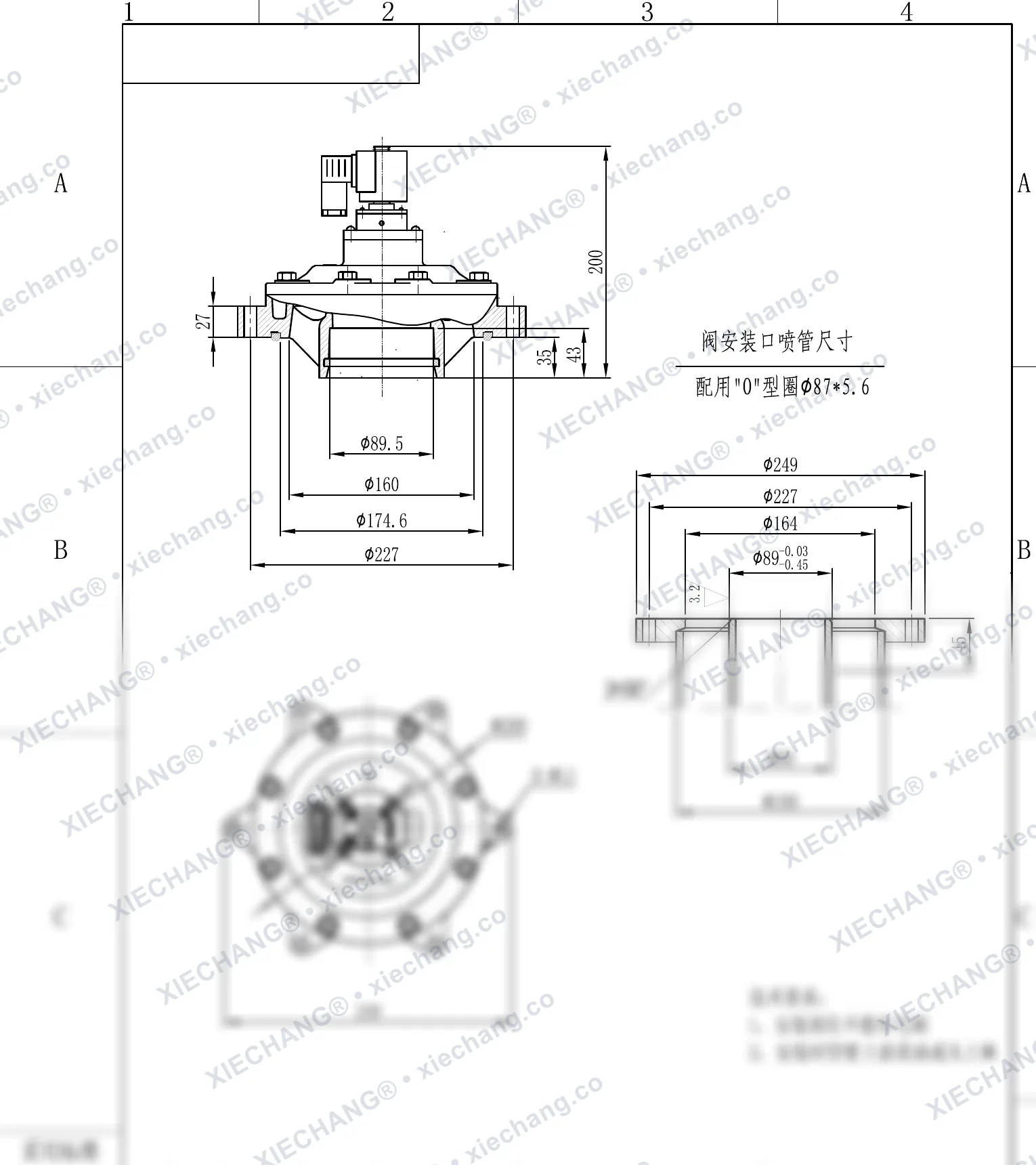

🔒 Dimensions disponibles sur demandeDCF-F-Y-76S(standard O-ring)
| Overall height | 200 mm |
|---|---|
| Flange outer diameter | Ø227 mm |
| Bolt circle diameter | Ø200 mm |
| Port diameter | Ø89.5 mm |
| Seat bolt circle | Ø174.6 mm |
| Inlet height | 35 mm |
| Flange thickness | 27 mm |
| Nozzle flange diameter | Ø249 mm |
| Nozzle bolt circle | Ø164 mm |
| Nozzle bore diameter | Ø89 mm |
| Nozzle pipe diameter | 🔒 |
| Nozzle pipe outer diameter | 🔒 |
| Nozzle depth | 45 mm |
| O ring | 🔒 |

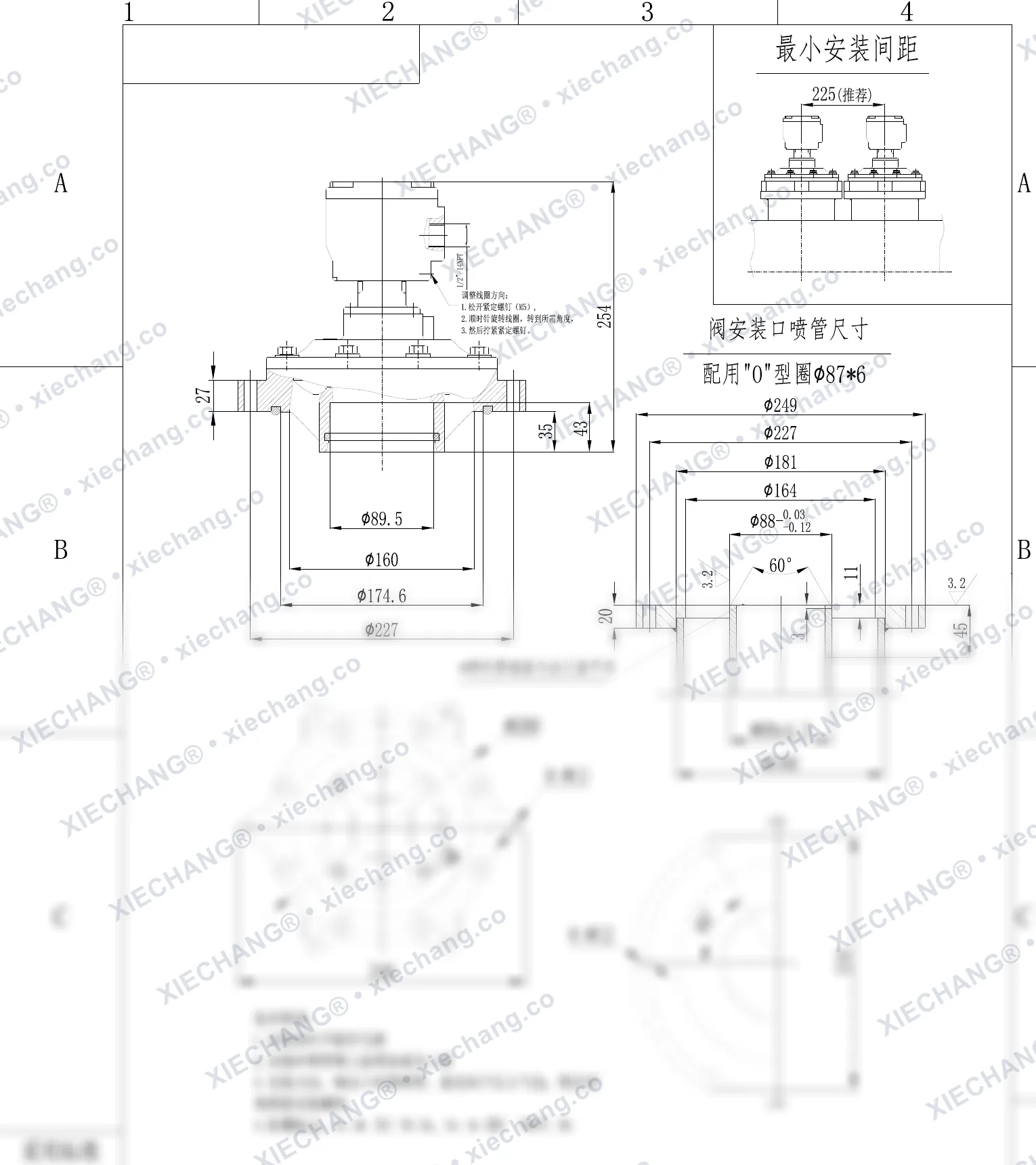

🔒 Dimensions disponibles sur demandeDCF-F-Y-76S(special O-ring)
| Overall height | 200 mm |
|---|---|
| Flange outer diameter | 🔒 |
| Bolt circle diameter | 🔒 |
| Port diameter | 🔒 |
| Seat bolt circle | Ø174.6 mm |
| Inlet height | 35 mm |
| Flange thickness | 27 mm |
| Nozzle flange diameter | Ø249 mm |
| Nozzle bolt circle | Ø164 mm |
| Nozzle bore diameter | Ø89 mm |
| Nozzle pipe diameter | Ø89 mm |
| Nozzle pipe outer diameter | Ø180 mm |
| Nozzle depth | 45 mm |
| O ring | 87 mm |

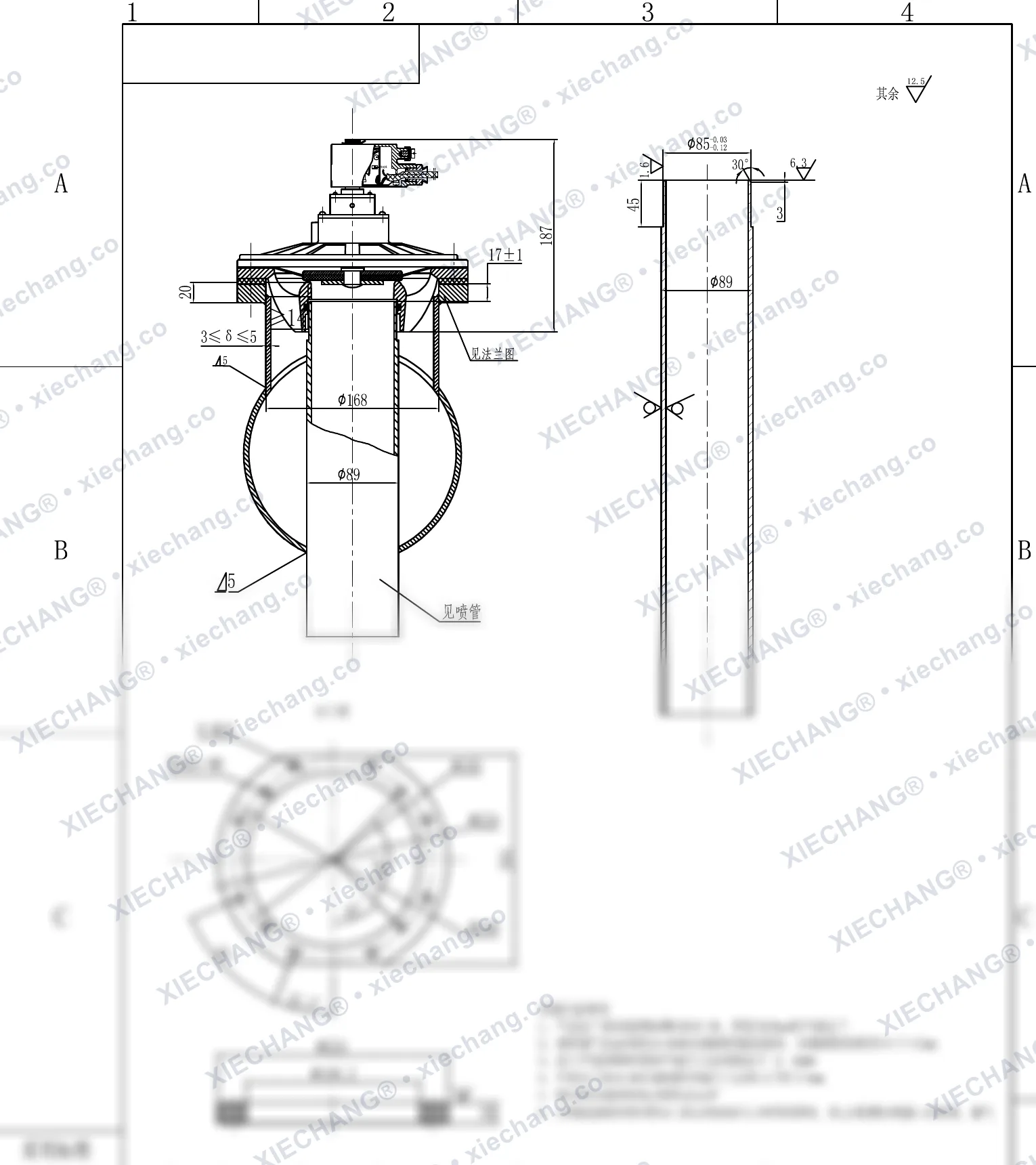

🔒 Dimensions disponibles sur demandeDMY-F-II-80
| Overall height | 187 mm |
|---|---|
| Air pocket pipe diameter | Ø168 mm |
| Spray pipe diameter | Ø89 mm |
| Spray pipe inner diameter | 🔒 |
| Flange outer diameter | Ø224 mm |
| Flange bolt circle | Ø198 mm |
| Flange mid diameter | Ø185 mm |
| Flange bore | Ø168.2 mm |
| Flange width | 🔒 |
| Flange thickness | 🔒 |
| Seat face height | 17 mm |
| Nozzle depth | 45 mm |
DCF-F-Z Électrovanne à impulsions antidéflagrante à angle droit

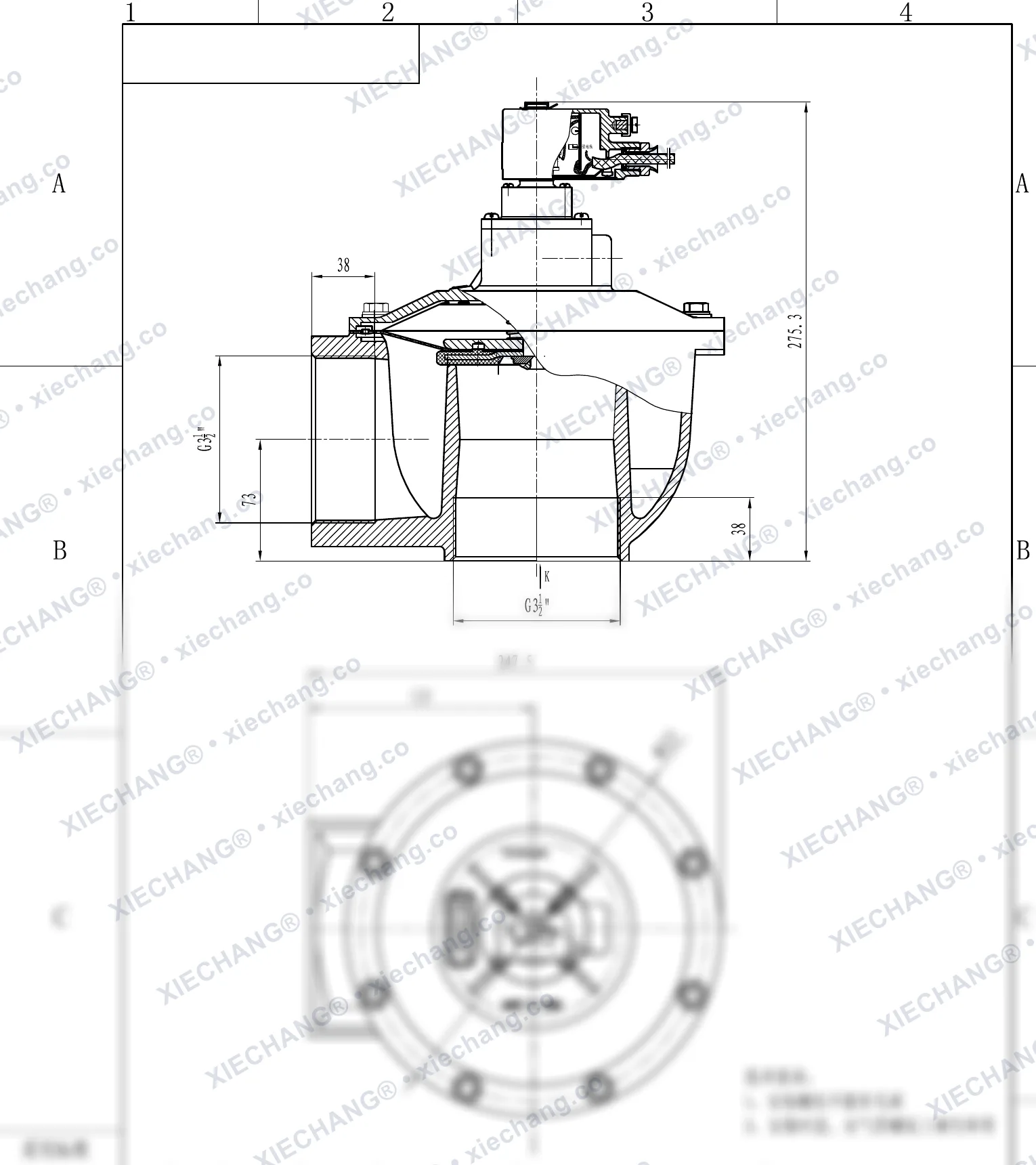

🔒 Dimensions disponibles sur demandeDCF-F-Z-102S.B
| Overall height | 275.3 mm |
|---|---|
| Body offset | 38 mm |
| Inlet center height | 73 mm |
| Outlet center height | 38 mm |
| Flange diameter | 🔒 |
| Bolt circle diameter | 🔒 |
| Base width | 🔒 |
🔒 Dimensions disponibles sur demandeDCF-F-2L-B
| Overall height | 185 mm |
|---|---|
| Inlet length | 24 mm |
| Outlet center height low | 82 mm |
| Outlet center height high | 105 mm |
| Outlet diameter | 🔒 |
| Flange diameter | Ø90 mm |
| Bolt circle diameter | 🔒 |
| Base width | 🔒 |

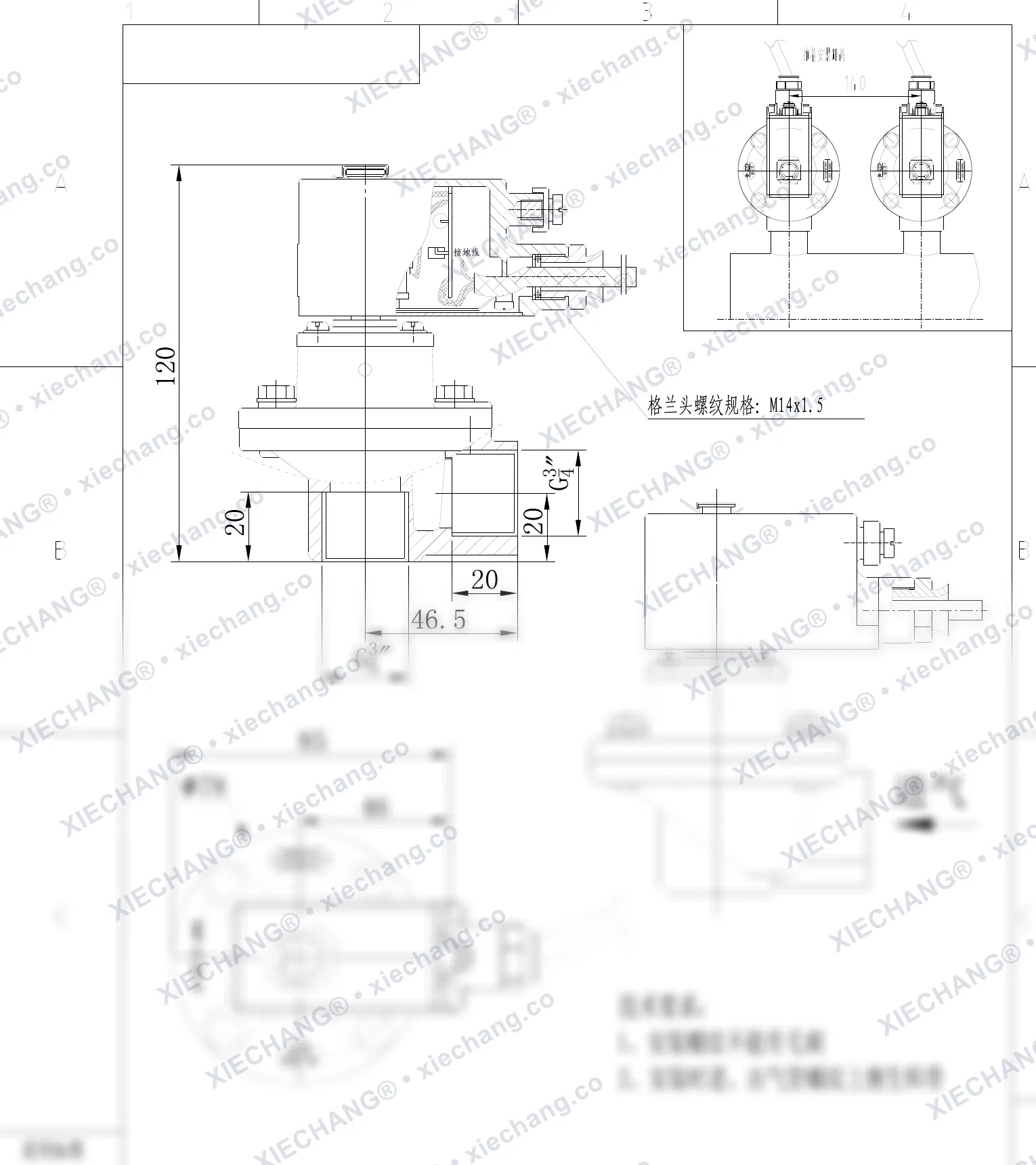

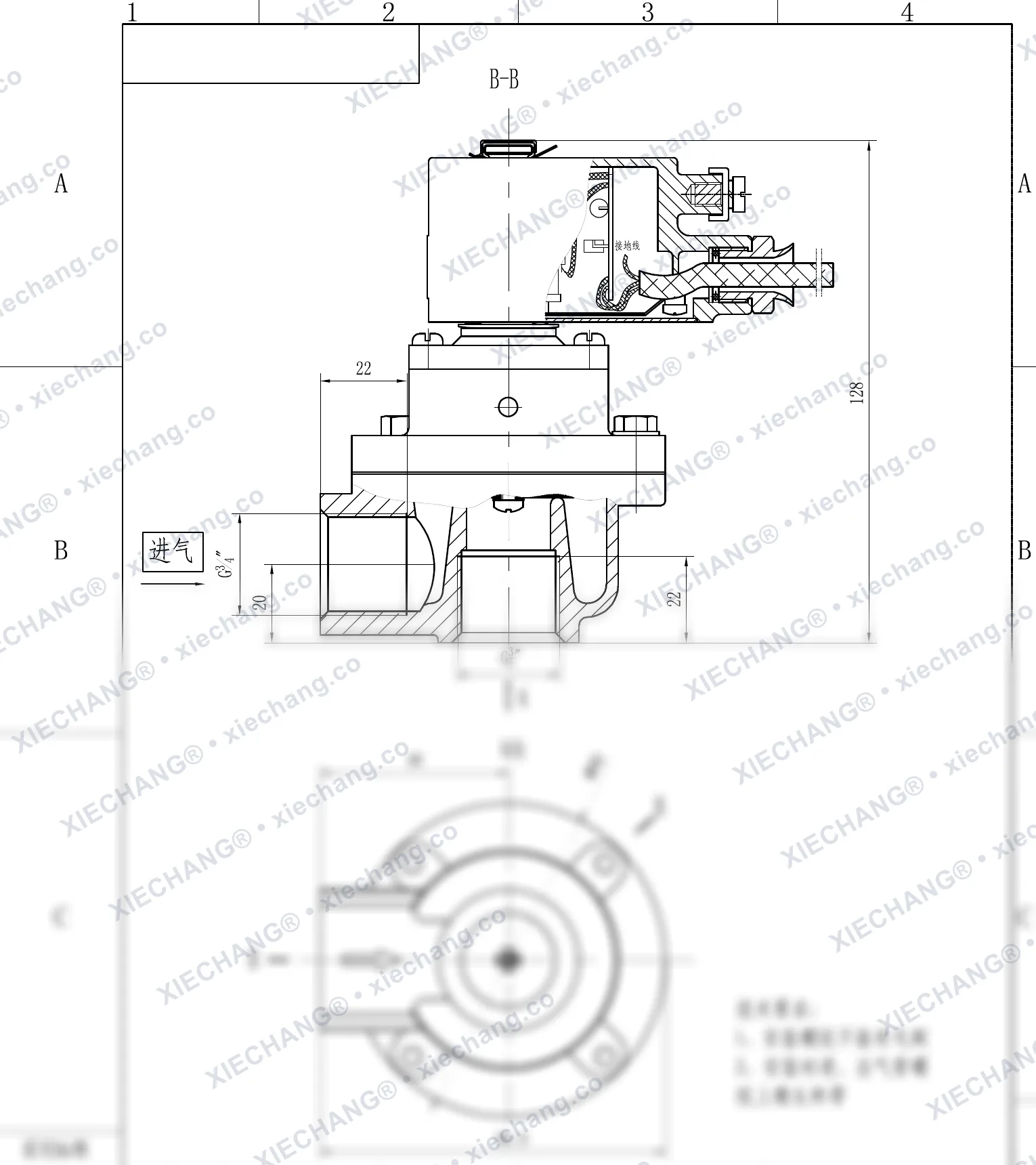

🔒 Dimensions disponibles sur demandeDCF-F-Z-20
| Overall height | 🔒 |
|---|---|
| Body offset | 🔒 |
| Inlet center height | 20 mm |
| Outlet center height | 🔒 |
| Flange diameter | Ø80 mm |
| Bolt circle diameter | Ø48 mm |
| Base width | 88 mm |

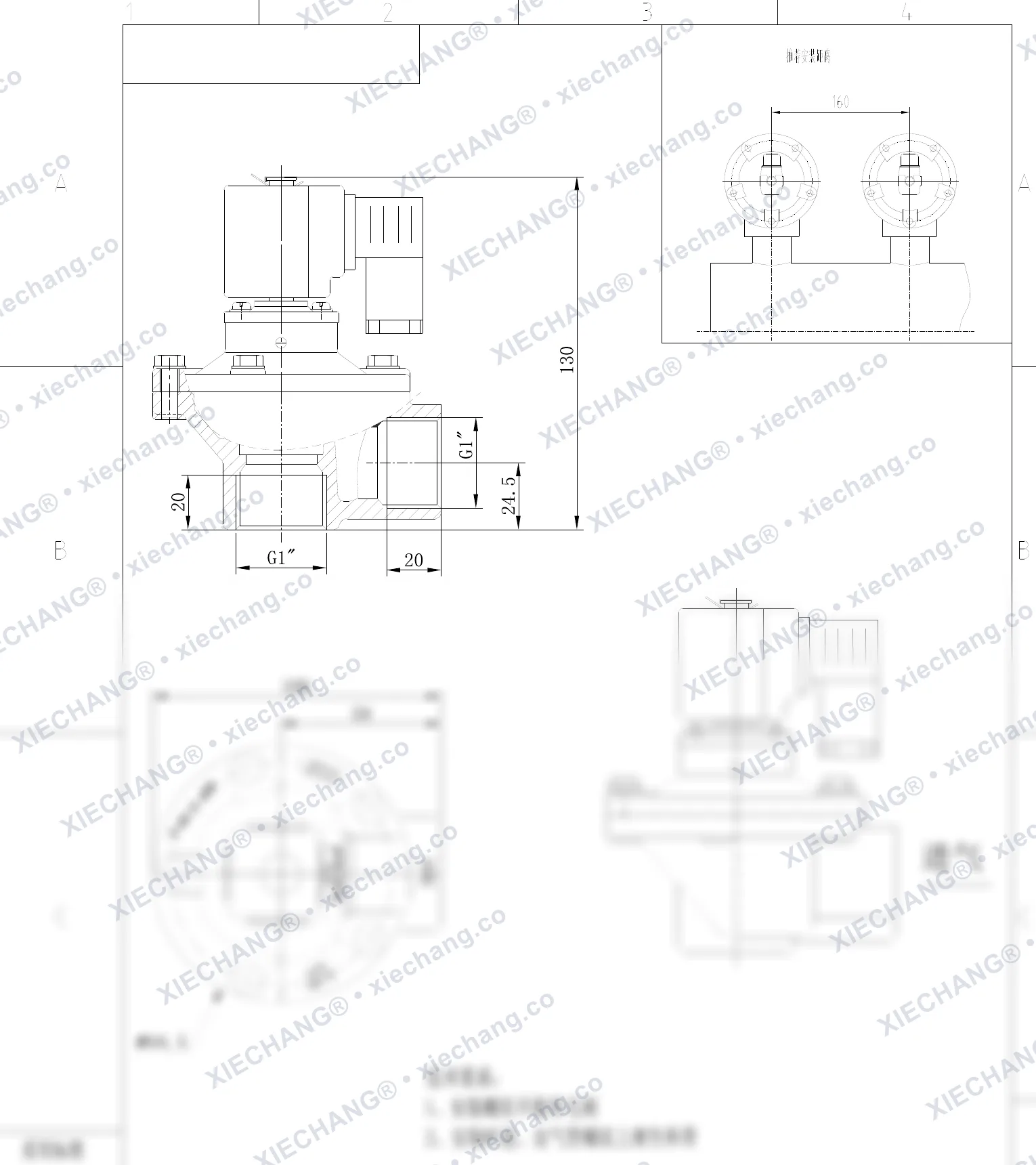

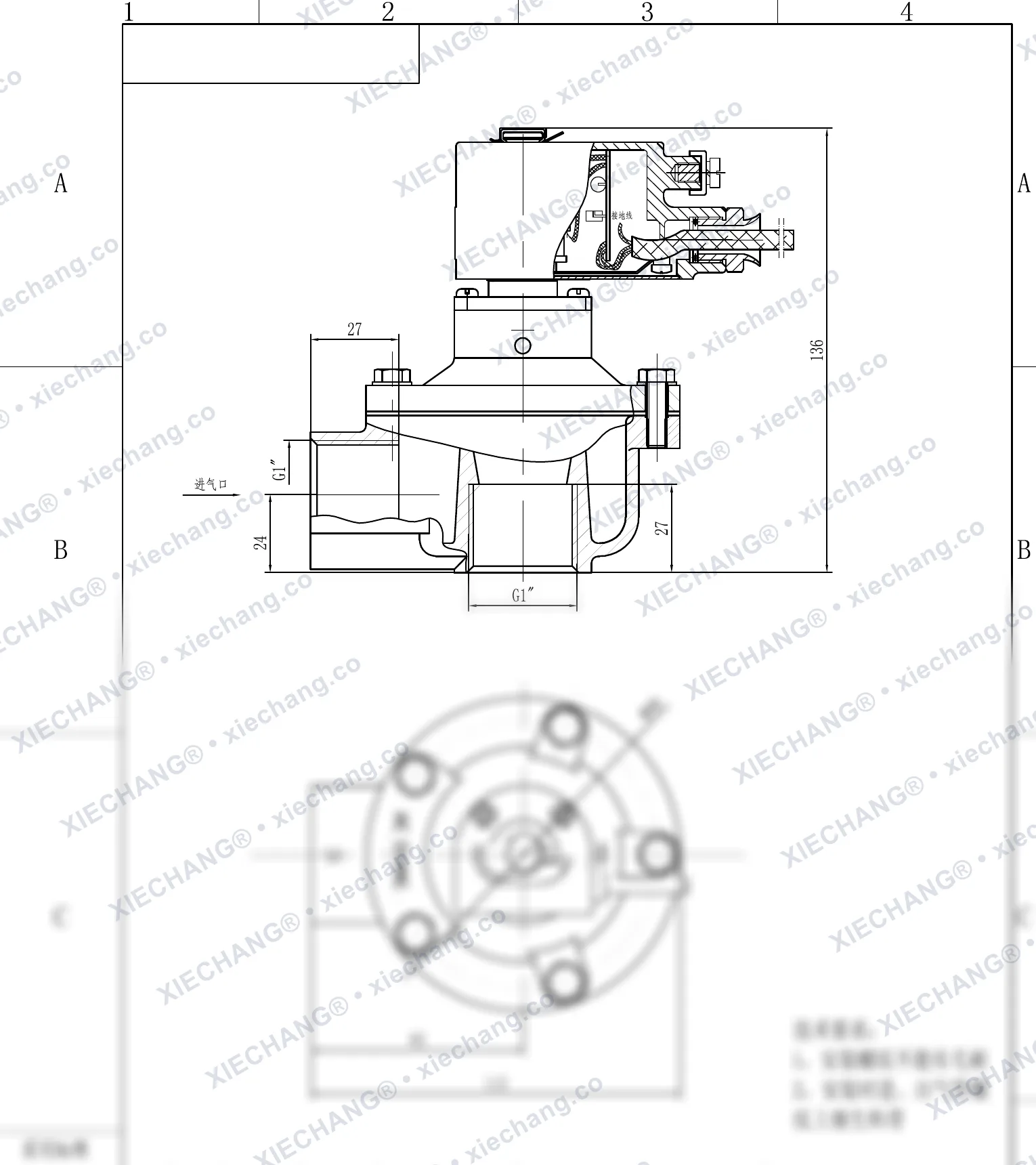

🔒 Dimensions disponibles sur demandeDCF-F-Z-25
| Overall height | 136 mm |
|---|---|
| Body offset | 27 mm |
| Inlet center height | 24 mm |
| Outlet center height | 27 mm |
| Flange diameter | 🔒 |
| Bolt circle diameter | 🔒 |
| Base width | 🔒 |

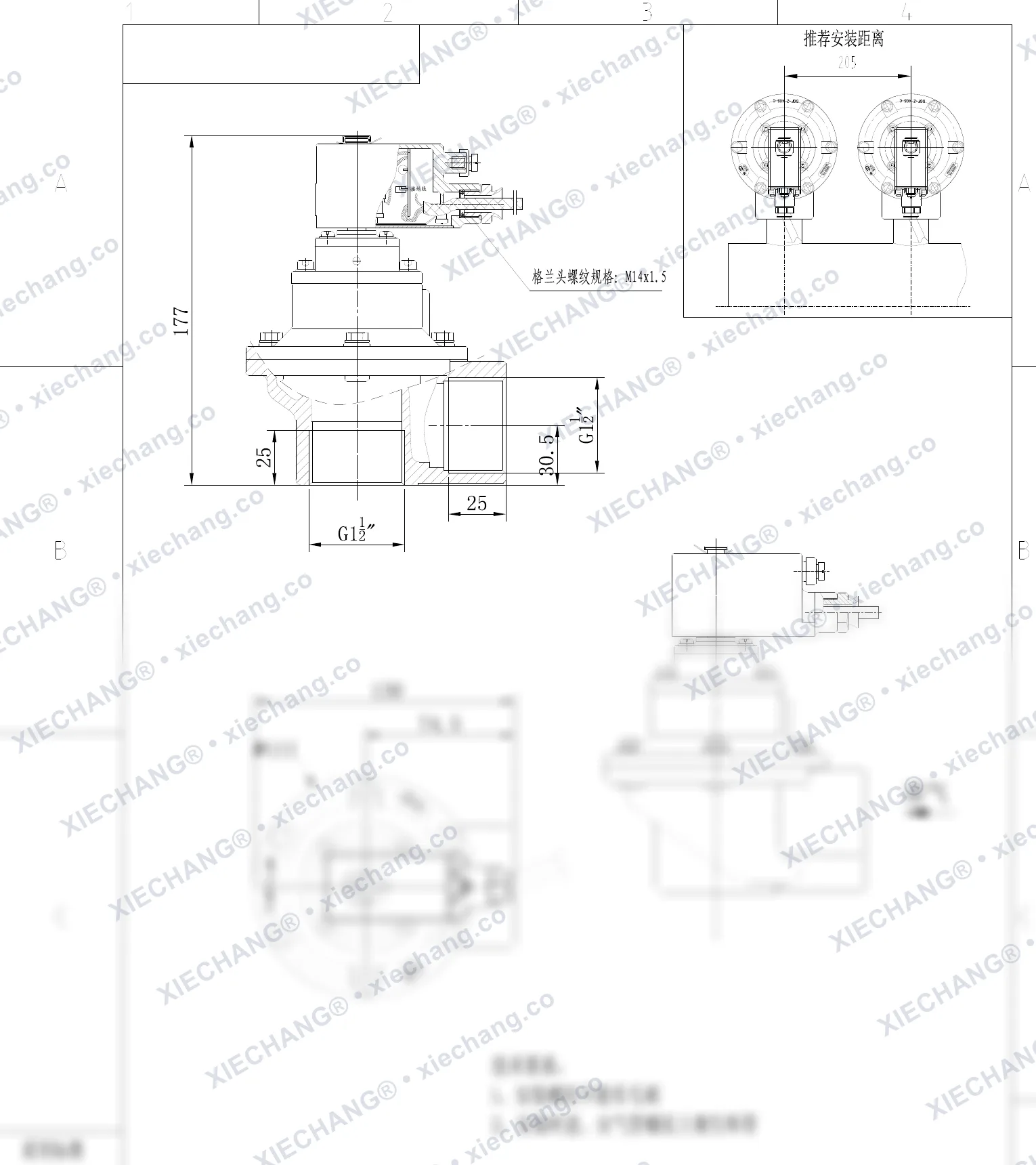

🔒 Dimensions disponibles sur demandeDCF-F-Z-40S
| Overall height | 🔒 |
|---|---|
| Body offset | 🔒 |
| Inlet center height | 🔒 |
| Outlet center height | 28 mm |
| Flange diameter | Ø112 mm |
| Bolt circle diameter | Ø75 mm |
| Base width | 131 mm |
🔒 Dimensions disponibles sur demandeDCF-F-Z-50S
| Overall height | 206 mm |
|---|---|
| Body offset | 36 mm |
| Inlet center height | 43 mm |
| Outlet center height | 36 mm |
| Flange diameter | 🔒 |
| Bolt circle diameter | 🔒 |
| Base width | 🔒 |
🔒 Dimensions disponibles sur demandeDCF-F-Z-62S
| Overall height | 226 mm |
|---|---|
| Body offset | 🔒 |
| Inlet center height | 🔒 |
| Outlet center height | 🔒 |
| Flange diameter | Ø188 mm |
| Bolt circle diameter | Ø110 mm |
| Base width | 204 mm |

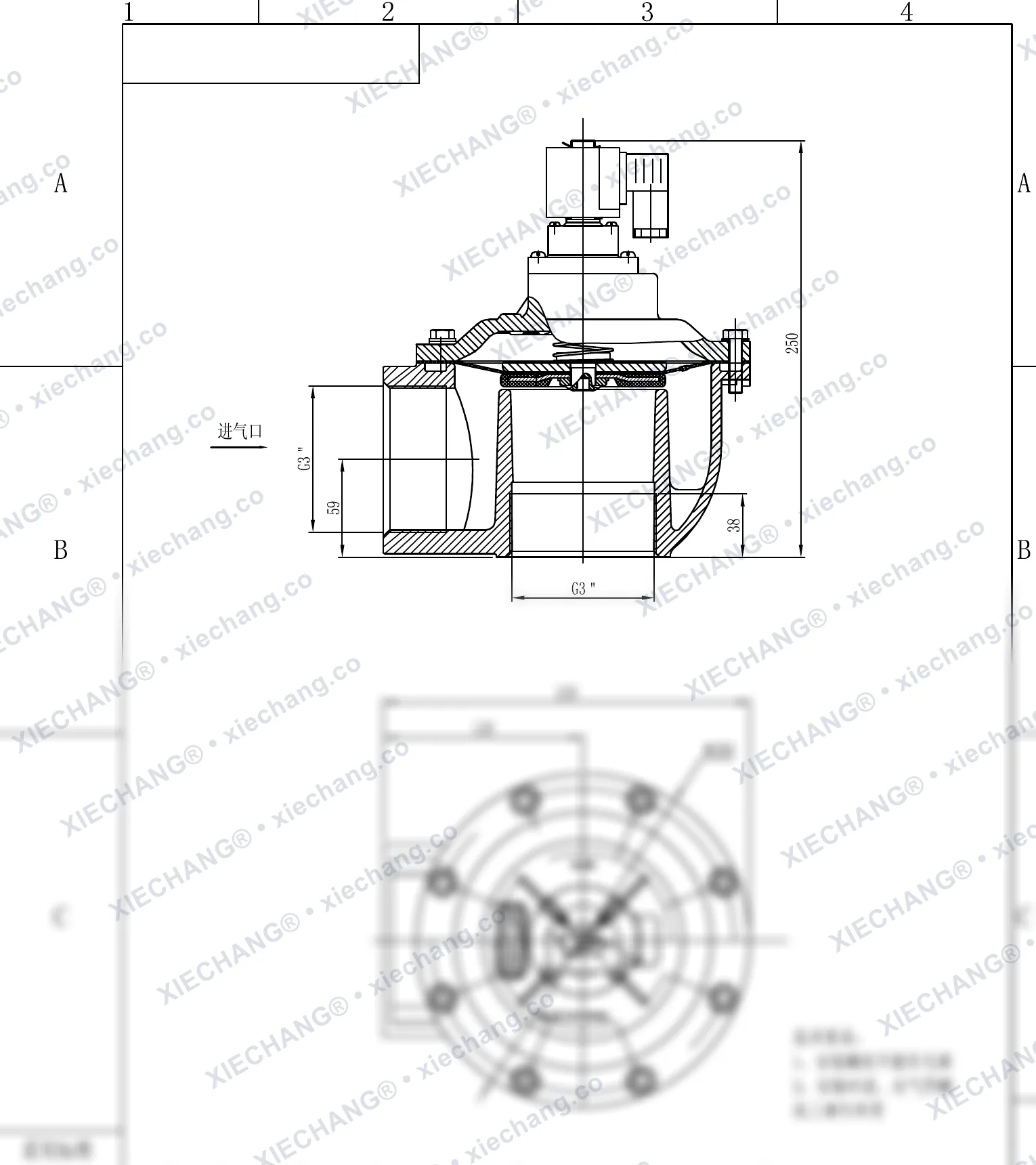

🔒 Dimensions disponibles sur demandeDCF-F-Z-76S
| Overall height | 250 mm |
|---|---|
| Body offset | 38 mm |
| Inlet center height | 59 mm |
| Outlet center height | 38 mm |
| Flange diameter | 🔒 |
| Bolt circle diameter | 🔒 |
| Base width | 🔒 |
DCF-F-ZM Électrovanne à impulsions antidéflagrante à filetage mâle

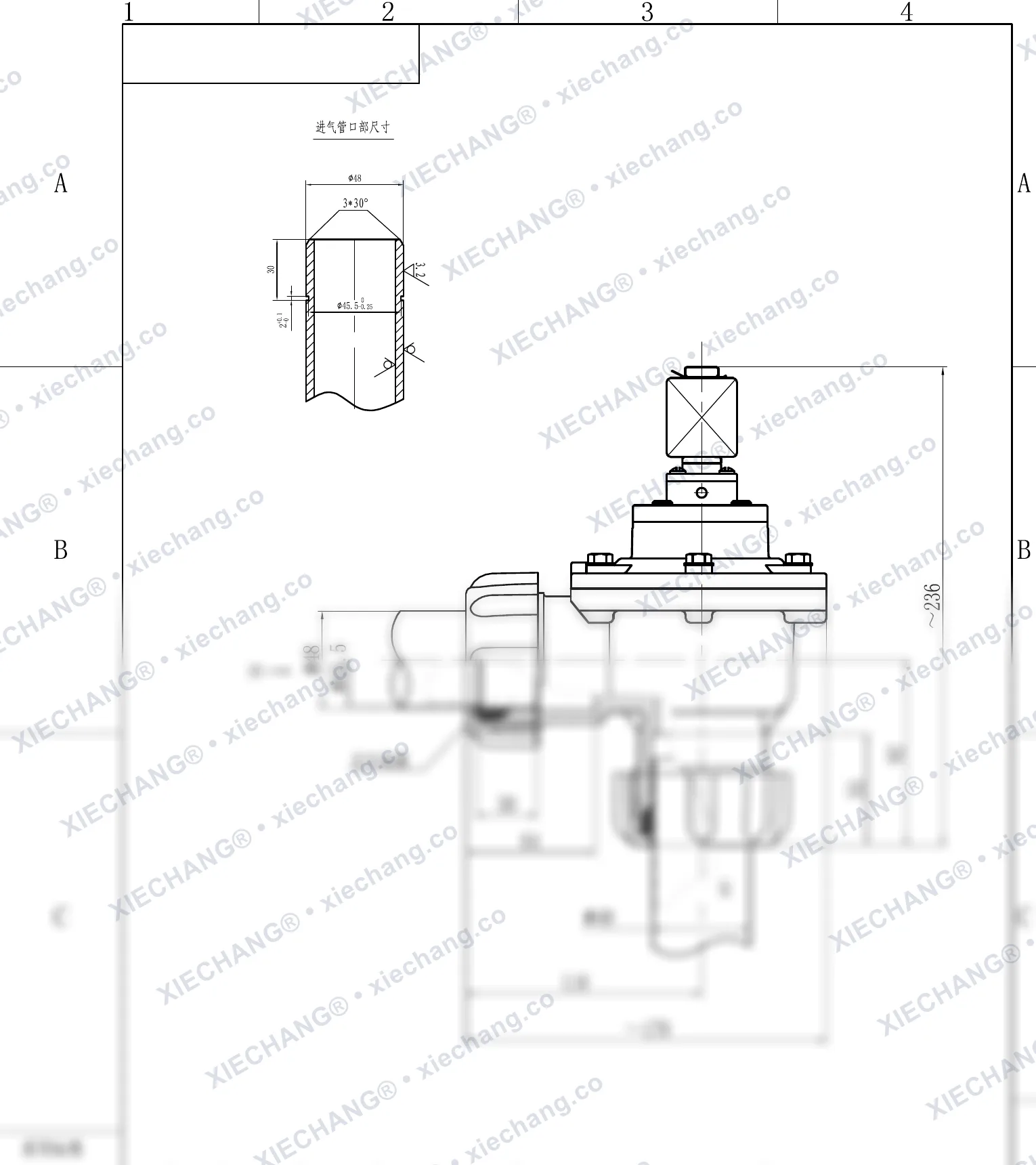

🔒 Dimensions disponibles sur demandeDCF-F-ZM-40S
| Inlet tube outer diameter | Ø48 mm |
|---|---|
| Inlet tube bore | Ø45.5 mm |
| Port seat depth | 30 mm |
| Connector length | 64 mm |
| Port spacing | 116 mm |
| Overall length | 🔒 |
| Overall height | 236 mm |
| Port center height | 92 mm |
| Outlet height | 🔒 |
| Outlet pipe diameter | 🔒 |

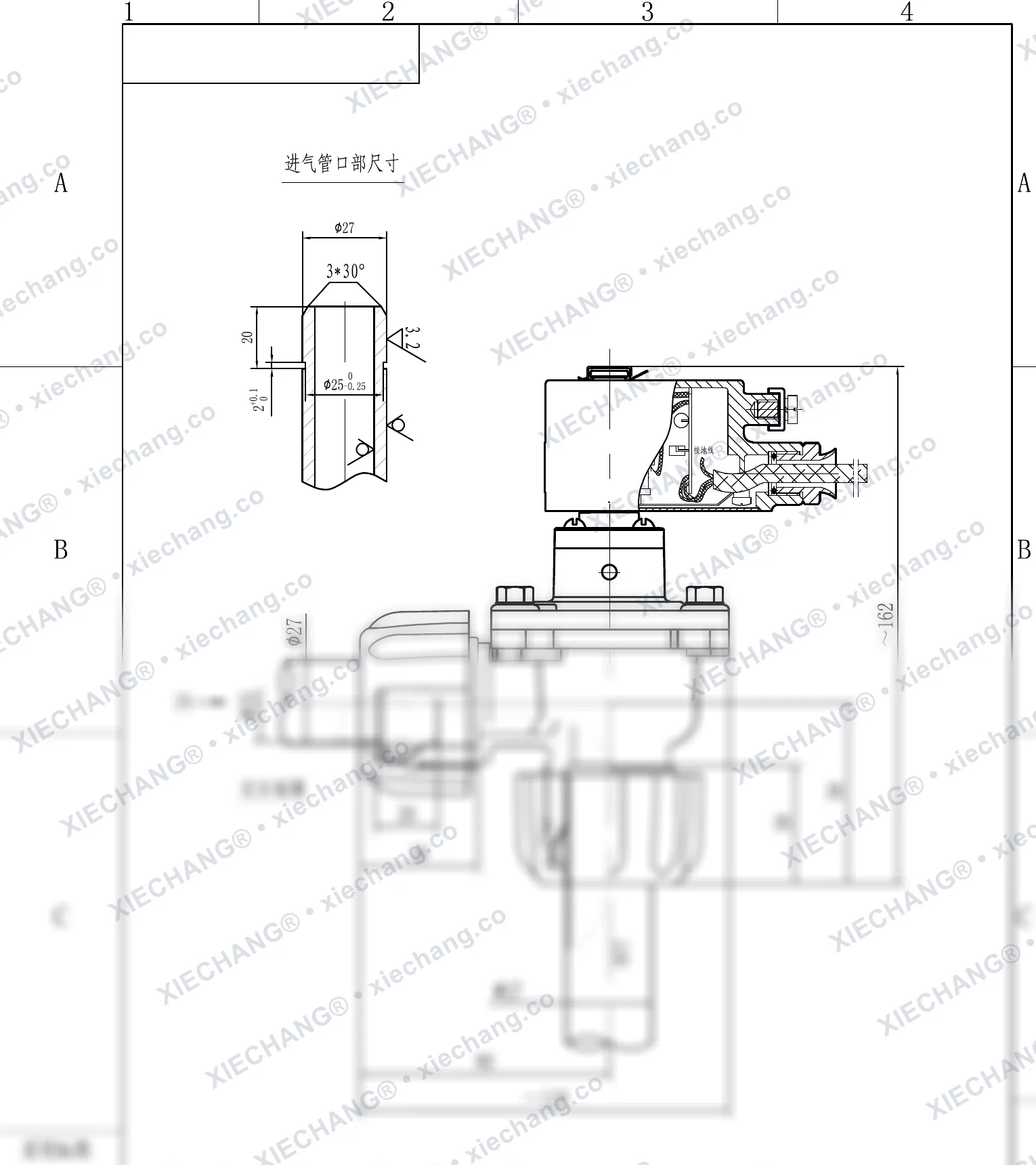

🔒 Dimensions disponibles sur demandeDCF-F-ZM-20
| Inlet tube outer diameter | Ø27 mm |
|---|---|
| Inlet tube bore | Ø25 mm |
| Port seat depth | 🔒 |
| Connector length | 38 mm |
| Port spacing | 80 mm |
| Overall length | 118 mm |
| Overall height | 162 mm |
| Port center height | 58 mm |
| Outlet height | 🔒 |
| Outlet pipe diameter | 🔒 |

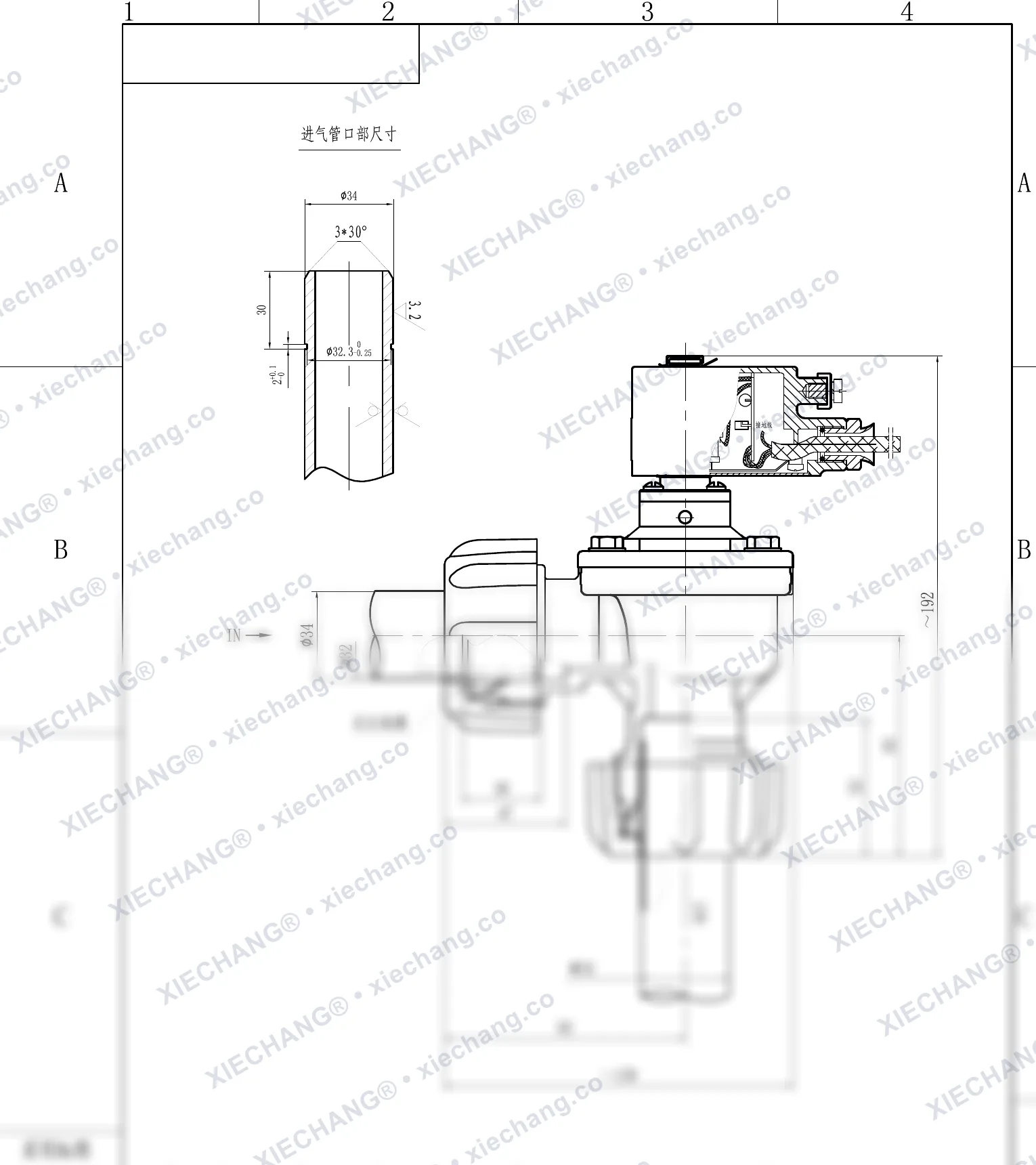

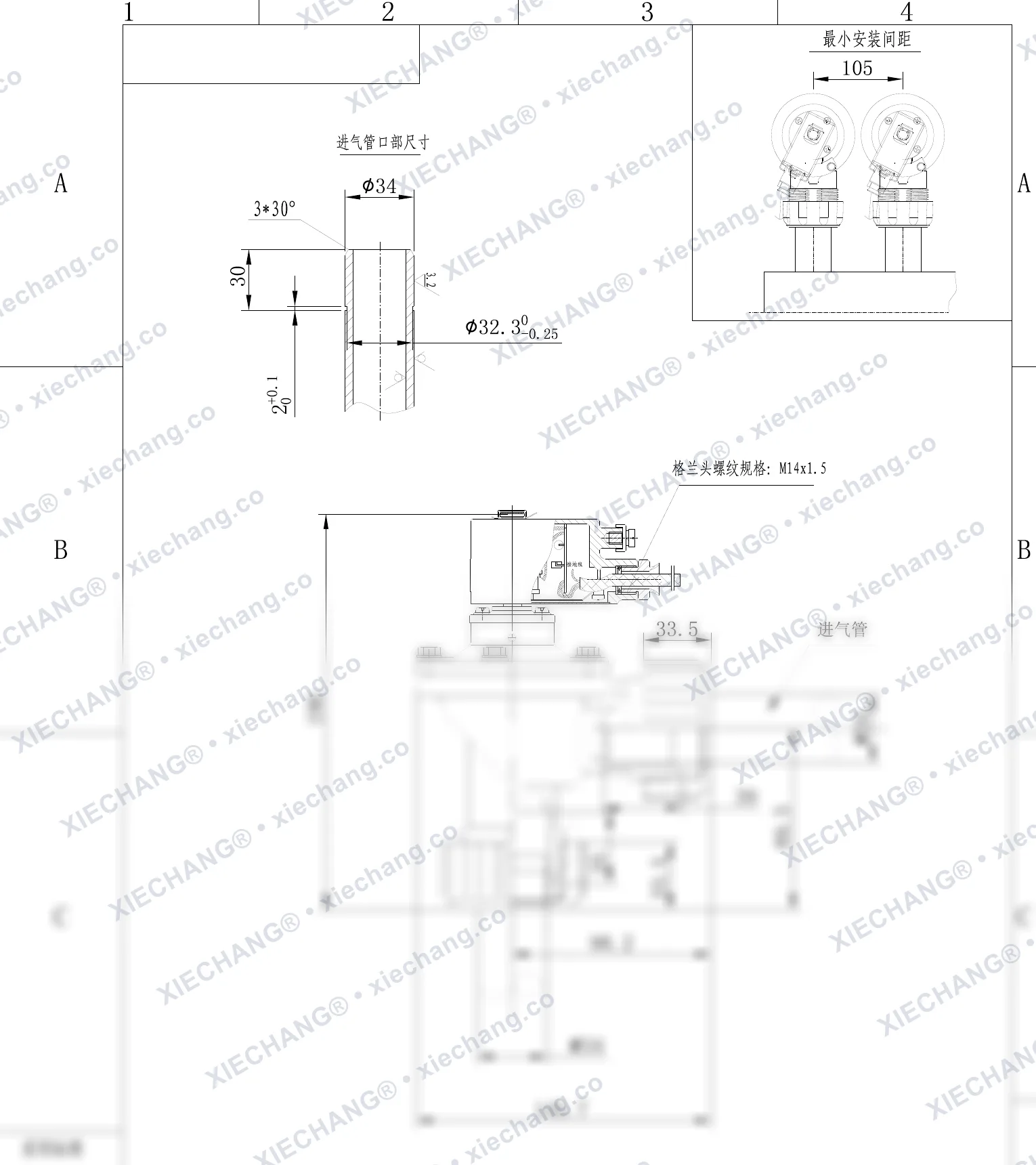

🔒 Dimensions disponibles sur demandeDCF-F-ZM-25
| Inlet tube outer diameter | 🔒 |
|---|---|
| Inlet tube bore | Ø32 mm |
| Port seat depth | 🔒 |
| Connector length | 🔒 |
| Port spacing | 93 mm |
| Overall length | 139 mm |
| Overall height | 192 mm |
| Port center height | 83 mm |
| Outlet height | 53 mm |
| Outlet pipe diameter | Ø34 mm |
DCF-T Électrovanne à impulsions à passage direct
🔒 Dimensions disponibles sur demandeDCF-T-25S
| Overall length | 180 mm |
|---|---|
| Inlet length | 25 mm |
| Port top offset | 23 mm |
| Body height | 🔒 |
| Port bottom offset | 🔒 |
| Flange diameter | 🔒 |

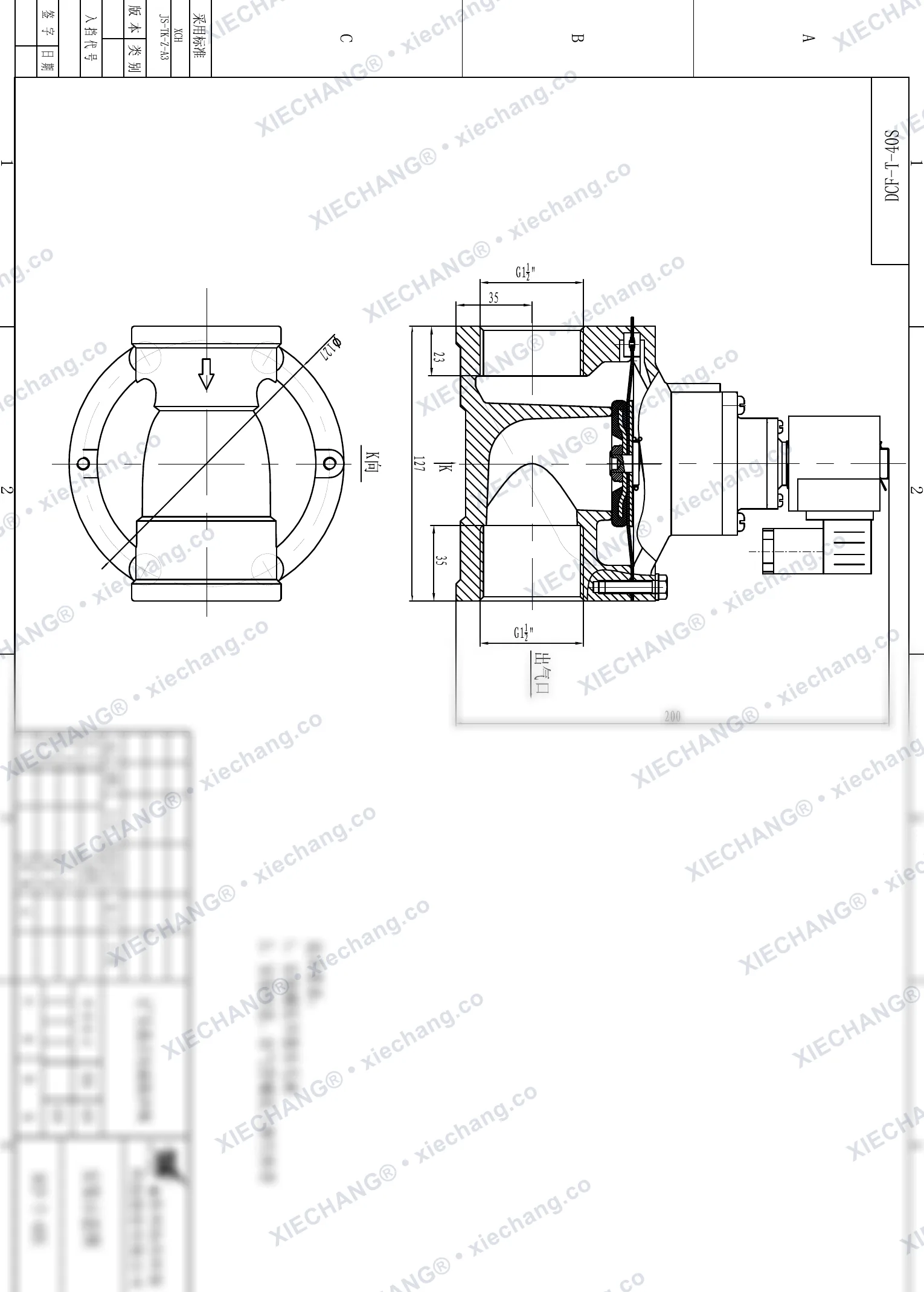

🔒 Dimensions disponibles sur demandeDCF-T-40S
| Overall length | 🔒 |
|---|---|
| Inlet length | 35 mm |
| Port top offset | 23 mm |
| Body height | 122 mm |
| Port bottom offset | 🔒 |
| Flange diameter | 🔒 |

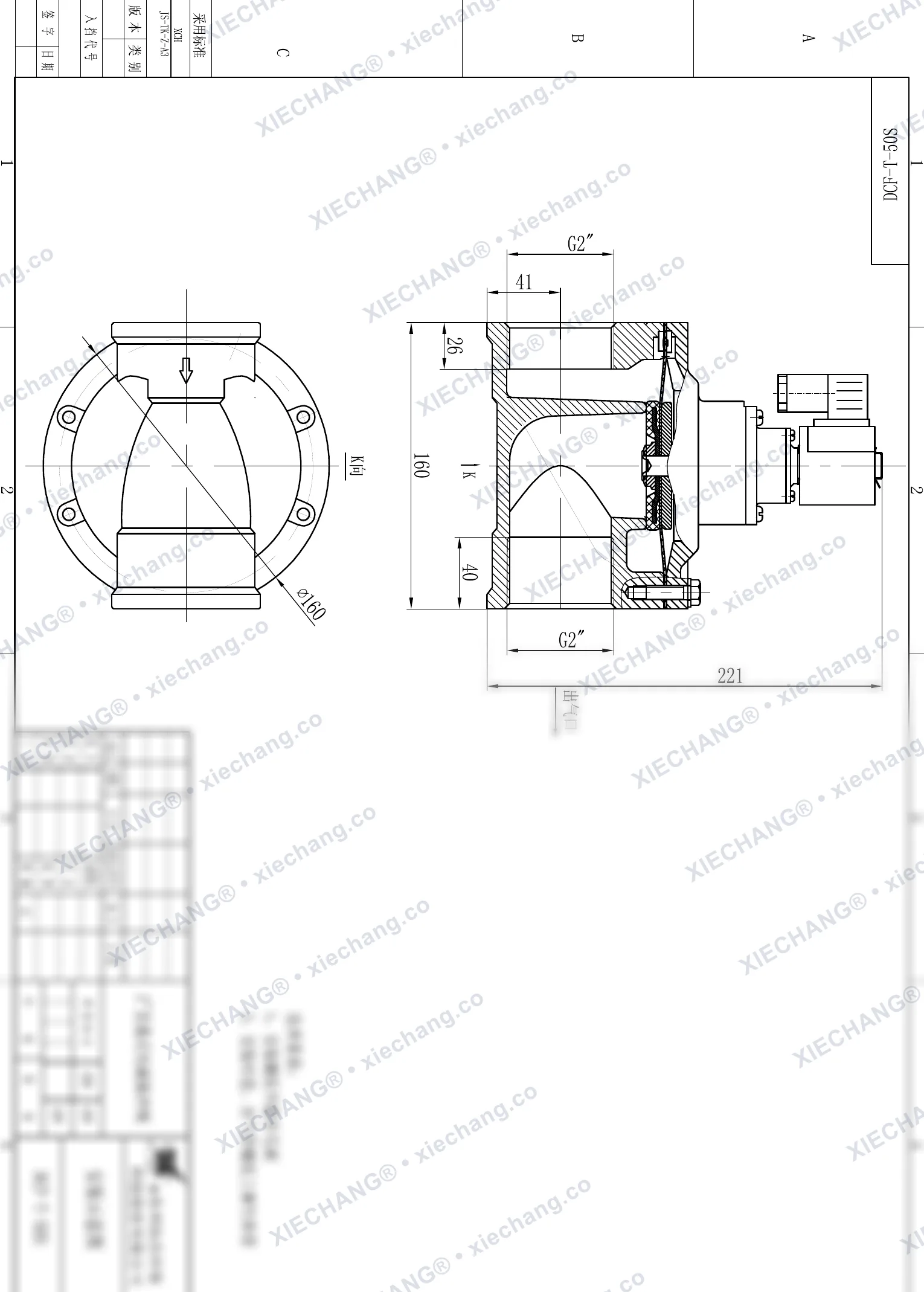

🔒 Dimensions disponibles sur demandeDCF-T-50S
| Overall length | 🔒 |
|---|---|
| Inlet length | 🔒 |
| Port top offset | 26 mm |
| Body height | 🔒 |
| Port bottom offset | 40 mm |
| Flange diameter | Ø160 mm |
DCF-Y Électrovanne à impulsions immergée

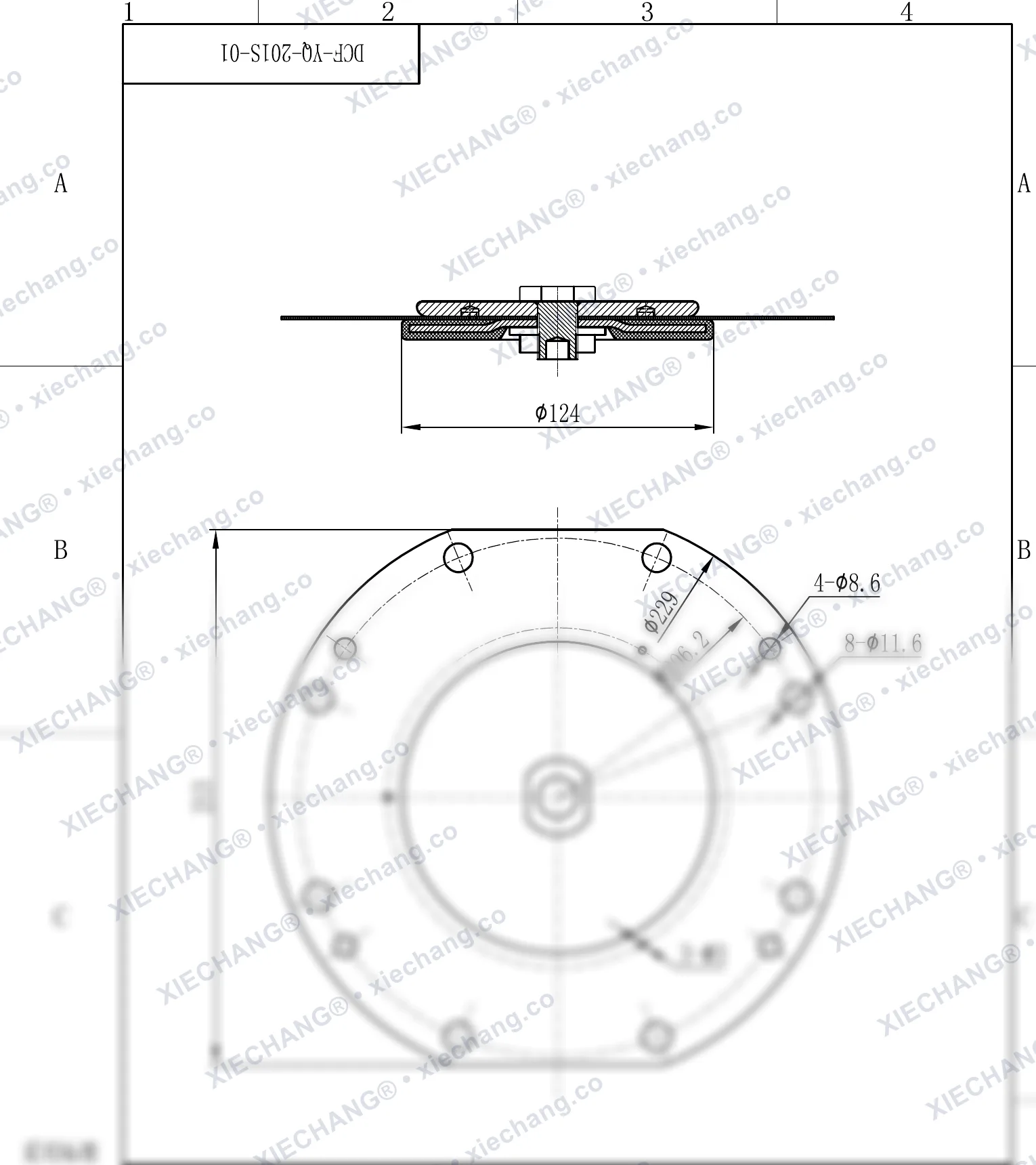

🔒 Dimensions disponibles sur demandeDCF-Y-102S
| Overall height | 211 mm |
|---|---|
| Flange thickness | 27 mm |
| Flange step | 6.5 mm |
| Neck height | 35 mm |
| Neckto base | 40 mm |
| Flange diameter inner | Ø114 mm |
| Flange diameter | Ø177 mm |
| Flange outer step | 191 mm |
| Flange outer diameter | Ø227 mm |
| Bolt circle diameter | Ø215 mm |
| Top view width | 249 mm |
| Side view width | 221 mm |
| Bolt hole diameter | Ø11 mm |
| Bolt hole count | 6 |
| Spray port outer | 249 mm |
| Spray port step 1 | 227 mm |
| Spray port step 2 | 195 mm |
| Spray port step 3 | 180 mm |
| Spray port bore | Ø113 mm |
| Spray tube | 114*5 |
| Spray tube outer | 🔒 |
| Inlet height | 🔒 |
| Wall thickness | 3 mm |
| Outlet length | 🔒 |
| Port depth | 45 mm |
| Port view height | 219 mm |
| Mounting spacing | 225 mm |
| O ring | 112*5.3 |

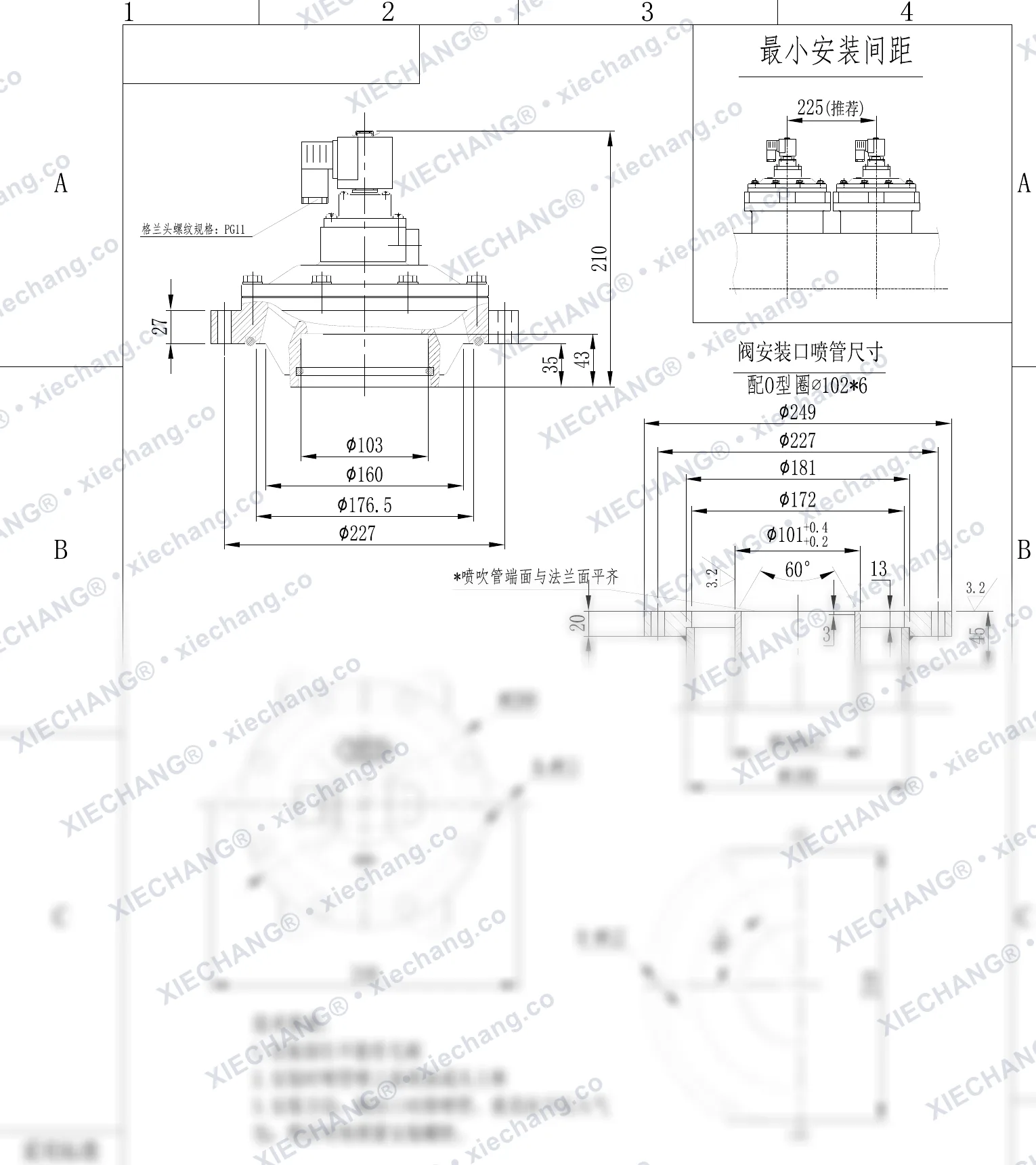

🔒 Dimensions disponibles sur demandeDCF-Y-102S.B(102*6)
| Overall height | 210 mm |
|---|---|
| Flange thickness | 27 mm |
| Neck height | 35 mm |
| Flange thickness total | 43 mm |
| Flange diameter inner | Ø103 mm |
| Flange diameter | Ø160 mm |
| Flange outer step | 176.5 mm |
| Flange outer diameter | Ø227 mm |
| Bolt circle diameter | Ø200 mm |
| Top view width | 249 mm |
| Bolt hole diameter | 🔒 |
| Bolt hole count | 🔒 |
| Spray port outer | 249 mm |
| Spray port step 1 | 🔒 |
| Spray port step 2 | 181 mm |
| Spray port step 3 | 172 mm |
| Spray port bore | Ø101 mm |
| Spray tube | 108*7 |
| Spray tube outer | 180 mm |
| Inlet height | 20 mm |
| Wall thickness | 3 mm |
| Outlet length | 13 mm |
| Port depth | 45 mm |
| Port view height | 219 mm |
| Mounting spacing | 225 mm |
| O ring | 102*6 |
🔒 Dimensions disponibles sur demandeDCF-Y-115S
| Overall depth | 217.3 mm |
|---|---|
| Flange thickness | 27 mm |
| Neck height | 35 mm |
| Flange thickness total | 43 mm |
| Flange diameter inner | Ø195.2 mm |
| Flange diameter | Ø202.2 mm |
| Flange outer diameter | Ø210.2 mm |
| Body diameter | Ø239 mm |
| Top view width | 🔒 |
| Bolt hole diameter | 🔒 |
| Bolt hole count | 6 |
| Spray port outer | 265 mm |
| Spray port step 1 | 239 mm |
| Spray port step 2 | 205 mm |
| Spray port bore | Ø126 mm |
| Spray tube outer | 194 mm |
| Counterbore | 127 |
| Port depth | 50 mm |
| Chamfer | 3x30deg |
| O ring | 🔒 |

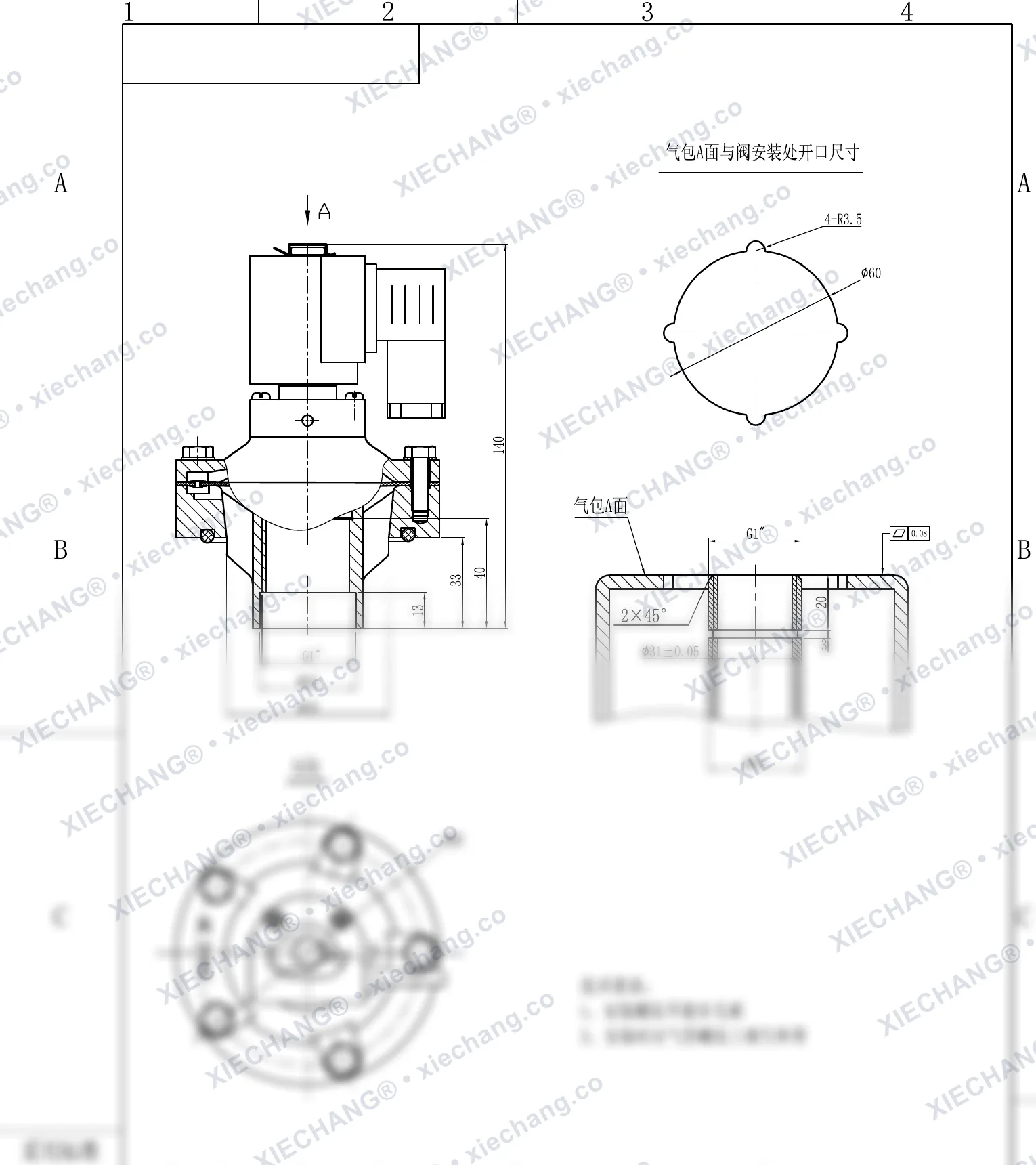

🔒 Dimensions disponibles sur demandeDCF-Y-25
| Overall height | 140 mm |
|---|---|
| Outlet thread length | 33 mm |
| Flange to outlet | 40 mm |
| Outlet step | 13 mm |
| Thread outer diameter | Ø35 mm |
| Flange diameter | Ø59 mm |
| Bolt circle diameter | Ø96 mm |
| Hub diameter | Ø40 mm |
| Reservoir opening diameter | Ø60 mm |
| Opening radius | 3.5 mm |
| Opening radius count | 4 |
| Bore diameter | Ø31 mm |
| Seat bore | 🔒 |
| Seat depth | 🔒 |
| Chamfer | 🔒 |

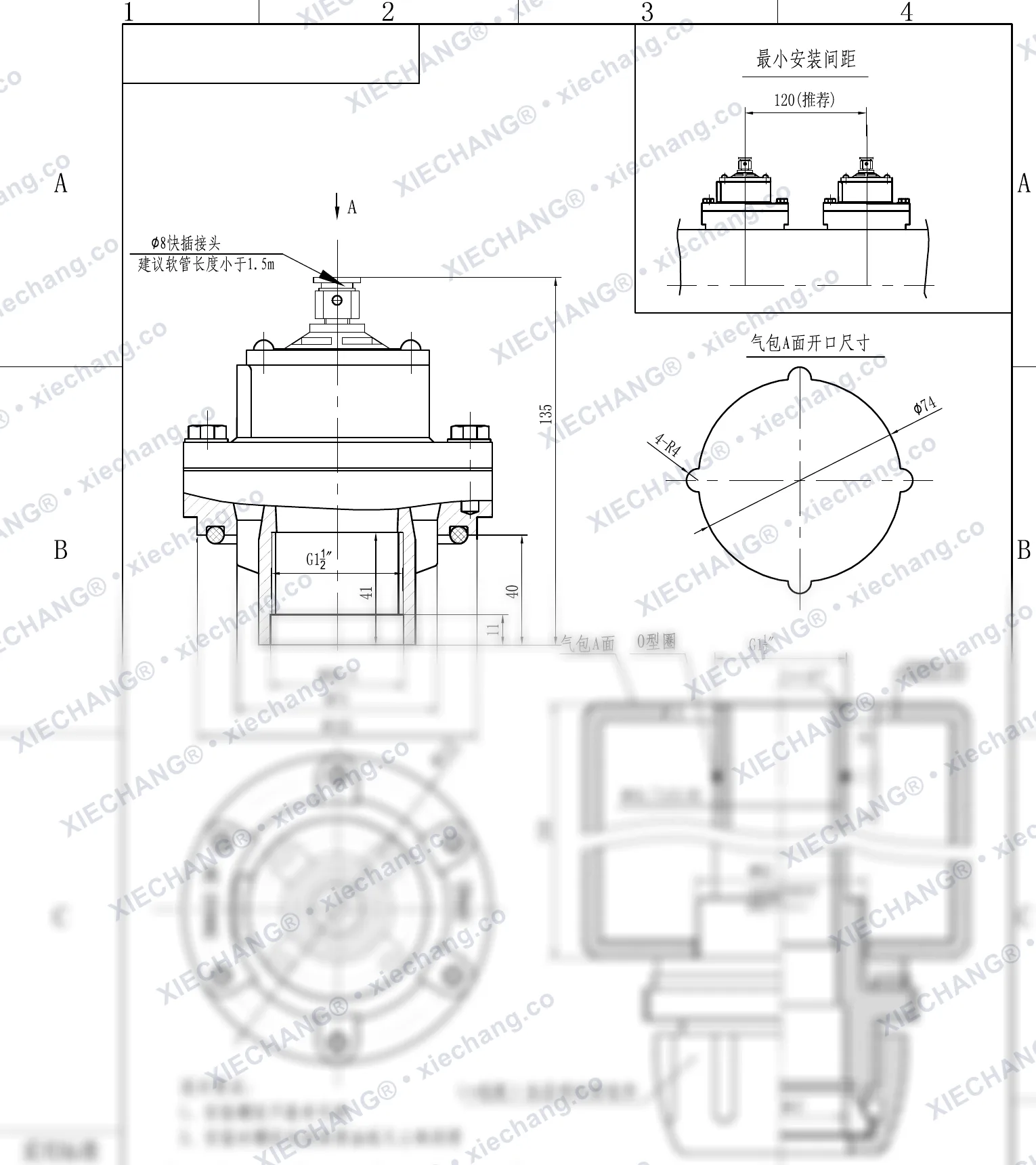

🔒 Dimensions disponibles sur demandeDCF-Y-40S
| Overall height | 182 mm |
|---|---|
| Flange to outlet | 40 mm |
| Outlet thread length | 41 mm |
| Outlet step | 11 mm |
| Thread outer diameter | Ø48.5 mm |
| Flange diameter | Ø73 mm |
| Body diameter | Ø102 mm |
| Bolt circle diameter | Ø112 mm |
| Reservoir opening diameter | Ø74 mm |
| Opening radius | 4 mm |
| Opening radius count | 4 |
| Bore diameter | 🔒 |
| Seat bore | Ø48 mm |
| Seat depth | 25 mm |
| Wall thickness | 🔒 |
| Chamfer | 🔒 |
🔒 Dimensions disponibles sur demandeDCF-Y-50S
| Body diameter | Ø160 mm |
|---|---|
| Top view width | 202 mm |
| Bolt hole diameter | Ø11 mm |
| Bolt hole count | 6 |
| Flange step | 7 mm |
| Flange thickness | 25 mm |
| Flange diameter inner | Ø60.5 mm |
| Flange diameter | Ø122 mm |
| Flange outer step | 130 mm |
| Flange outer diameter | Ø180 mm |
| Neck height | 30 mm |
| Neckto base | 41 mm |
| Side depth | 188 mm |
| Spray port outer | 202 mm |
| Spray port step 1 | 180 mm |
| Spray port step 2 | 124 mm |
| Spray port bore | Ø60 mm |
| Spray tube | 63.5*5 |
| Spray tube outer | 127 mm |
| Inlet height | 20 mm |
| Wall thickness | 🔒 |
| Outlet length | 🔒 |
| Port depth | 45 mm |
| Mounting spacing | 185 mm |
| O ring | 🔒 |
🔒 Dimensions disponibles sur demandeDCF-Y-62S
| Body diameter | Ø188 mm |
|---|---|
| Top view width | 230 mm |
| Bolt hole diameter | Ø11 mm |
| Bolt hole count | 6 |
| Flange step | 7 mm |
| Flange thickness | 25 mm |
| Flange diameter inner | Ø75.5 mm |
| Flange diameter | Ø148 mm |
| Flange outer step | 158 mm |
| Flange outer diameter | Ø208 mm |
| Neck height | 🔒 |
| Neckto base | 🔒 |
| Side depth | 196 mm |
| Spray port outer | 🔒 |
| Spray port step 1 | 208 mm |
| Spray port step 2 | 169.5 mm |
| Spray port step 3 | 152 mm |
| Spray port bore | Ø75 mm |
| Spray tube | 76*4 |
| Spray tube outer | 168*5 |
| Top view base | 202 mm |
| Inlet height | 20 mm |
| Wall thickness | 3 mm |
| Outlet length | 14 mm |
| Port depth | 45 mm |
| Mounting spacing | 210 mm |
| O ring | 73*5.6 |
🔍 Cliquer pour agrandirDCF-Y-76S-II
🔒 Dimensions disponibles sur demandeDCF-Y-76S(standard O-ring)
| Overall height | 200 mm |
|---|---|
| Flange thickness | 27 mm |
| Neck height | 35 mm |
| Flange thickness total | 43 mm |
| Flange diameter inner | Ø89.5 mm |
| Flange diameter | Ø160 mm |
| Flange outer step | 174.6 mm |
| Flange outer diameter | Ø227 mm |
| Bolt circle diameter | 🔒 |
| Top view width | 🔒 |
| Bolt hole diameter | Ø11 mm |
| Bolt hole count | 🔒 |
| Spray port outer | 249 mm |
| Spray port step 1 | 227 mm |
| Spray port step 2 | 164 mm |
| Spray port bore | Ø89 mm |
| Spray tube outer | 180 mm |
| Port depth | 45 mm |
| Chamfer | 3x30deg |
| O ring | 87*5.6 |
🔒 Dimensions disponibles sur demandeDCF-Y-76S(special O-ring)
| Overall height | 200 mm |
|---|---|
| Flange thickness | 27 mm |
| Neck height | 🔒 |
| Flange thickness total | 🔒 |
| Flange diameter inner | Ø89.5 mm |
| Flange diameter | Ø160 mm |
| Flange outer step | 174.6 mm |
| Flange outer diameter | Ø227 mm |
| Bolt circle diameter | Ø200 mm |
| Top view width | 249 mm |
| Bolt hole diameter | Ø11 mm |
| Bolt hole count | 6 |
| Spray port outer | 249 mm |
| Spray port step 1 | 227 mm |
| Spray port step 2 | 164 mm |
| Spray port bore | Ø88 mm |
| Spray tube outer | 180 mm |
| Spray tube bore | Ø89 mm |
| Port depth | 45 mm |
| Chamfer | 3x30deg |
| O ring | 🔒 |
🔒 Dimensions disponibles sur demandeDCF-YA-76S
| Overall height | 208 mm |
|---|---|
| Flange thickness | 54 mm |
| Flange diameter inner | Ø89 mm |
| Flange diameter | Ø187.5 mm |
| Flange outer diameter | 🔒 |
| Bolt circle diameter | 🔒 |
| Side view height | 🔒 |
| Bolt hole diameter | Ø11 mm |
| Bolt hole count | 8 |
| Spray port outer | 220 mm |
| Spray port step 1 | 187.5 mm |
| Spray port step 2 | 170 mm |
| Spray port bore | Ø87.5 mm |
| Spray tube | 89*5 |
| Spray tube outer | 180*4.5 |
| Inlet height | 18 mm |
| Port depth | 25 mm |
| Mounting spacing | 205 mm |
| O ring | 100*5.7 |

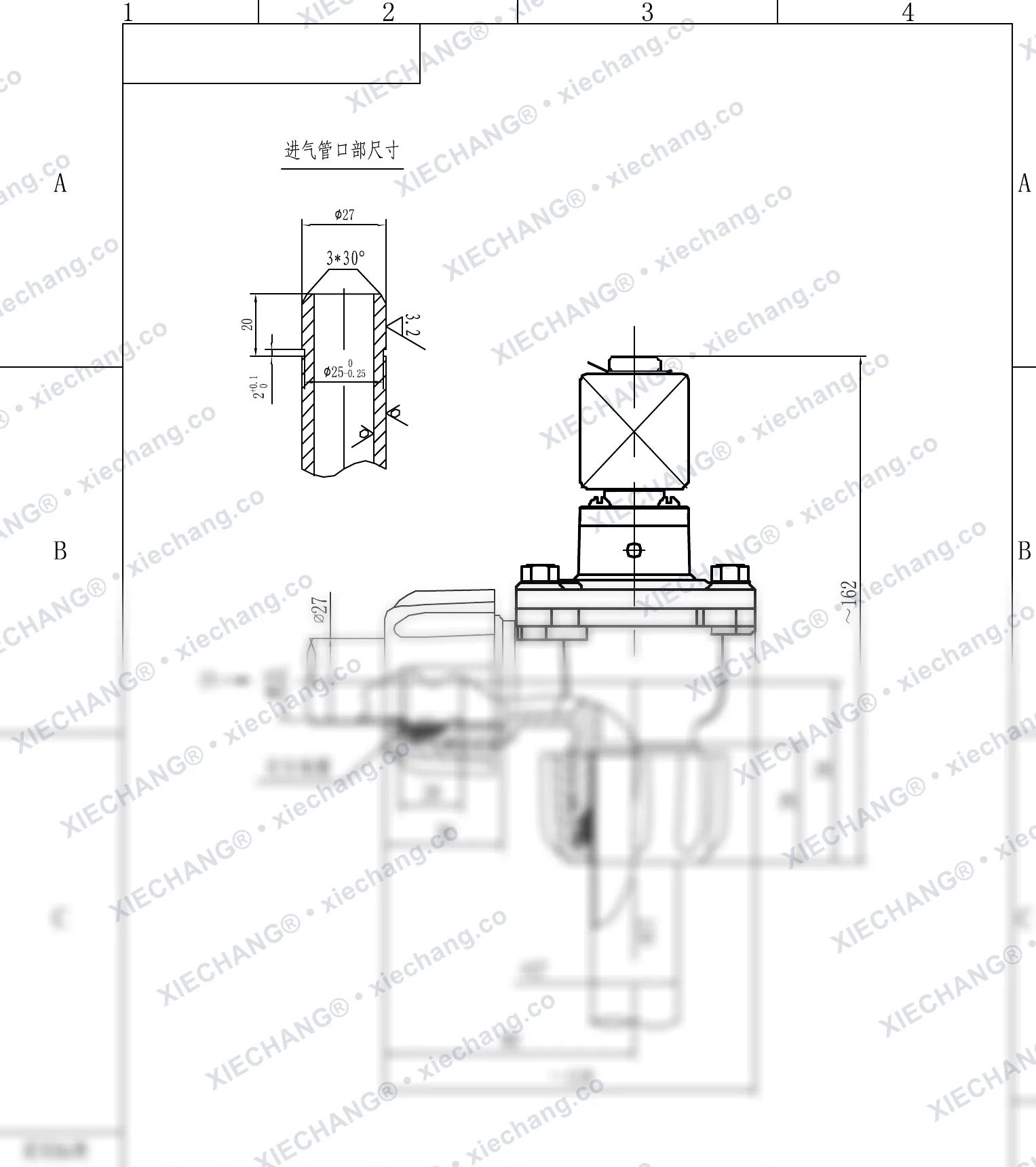

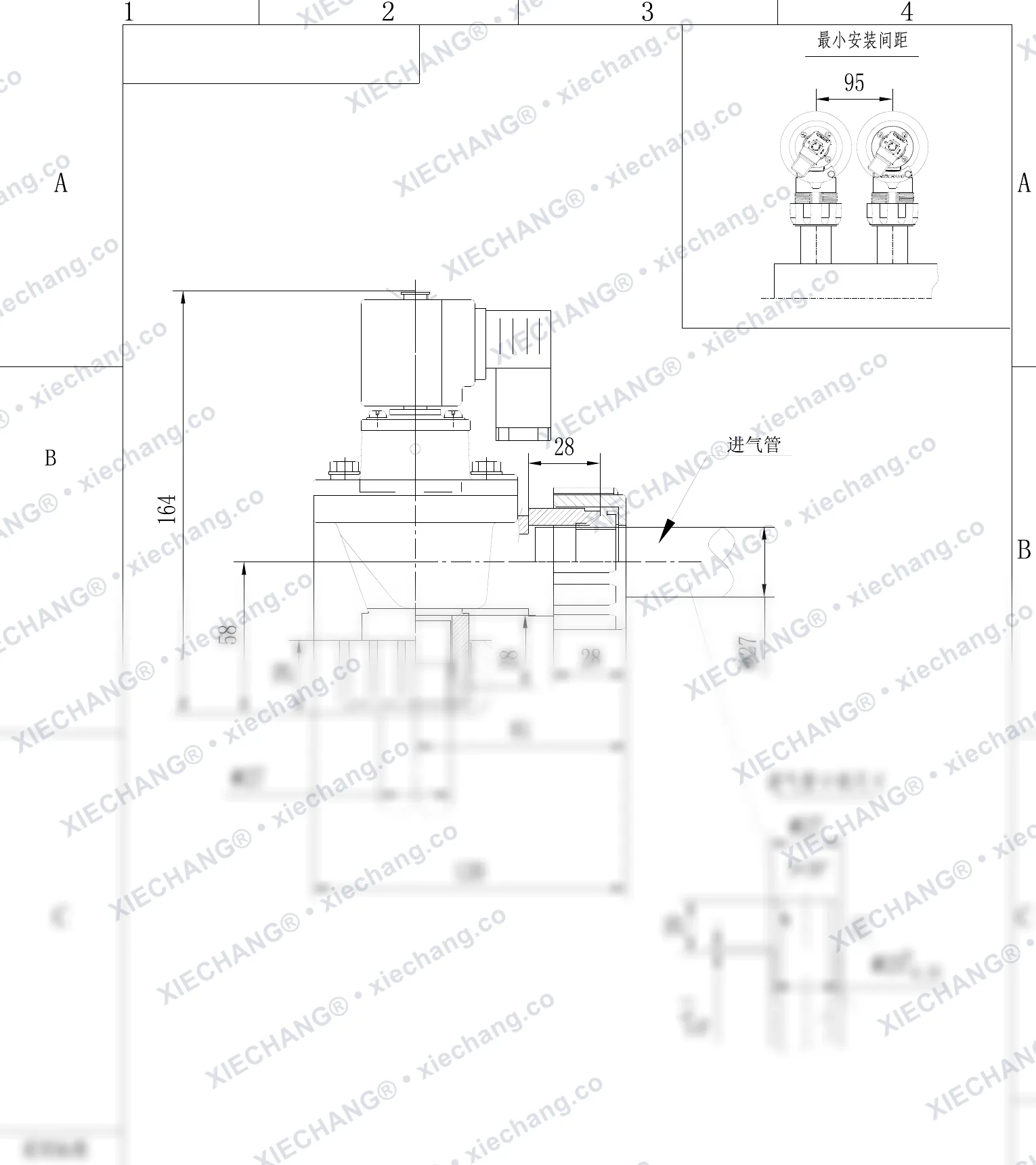

🔒 Dimensions disponibles sur demandeDCF-ZM-20
| Overall height | 162 mm |
|---|---|
| Outlet center height | 58 mm |
| Inlet to outlet center | 38 mm |
| Inlet port diameter | Ø27 mm |
| Inlet bore | 🔒 |
| Inlet depth | 20 mm |
| Base length | 38 mm |
| Outlet offset | 80 mm |
| Overall length | 🔒 |
| Seat bore | 🔒 |
| Seat depth | 20 mm |
| Chamfer | 3x30deg |

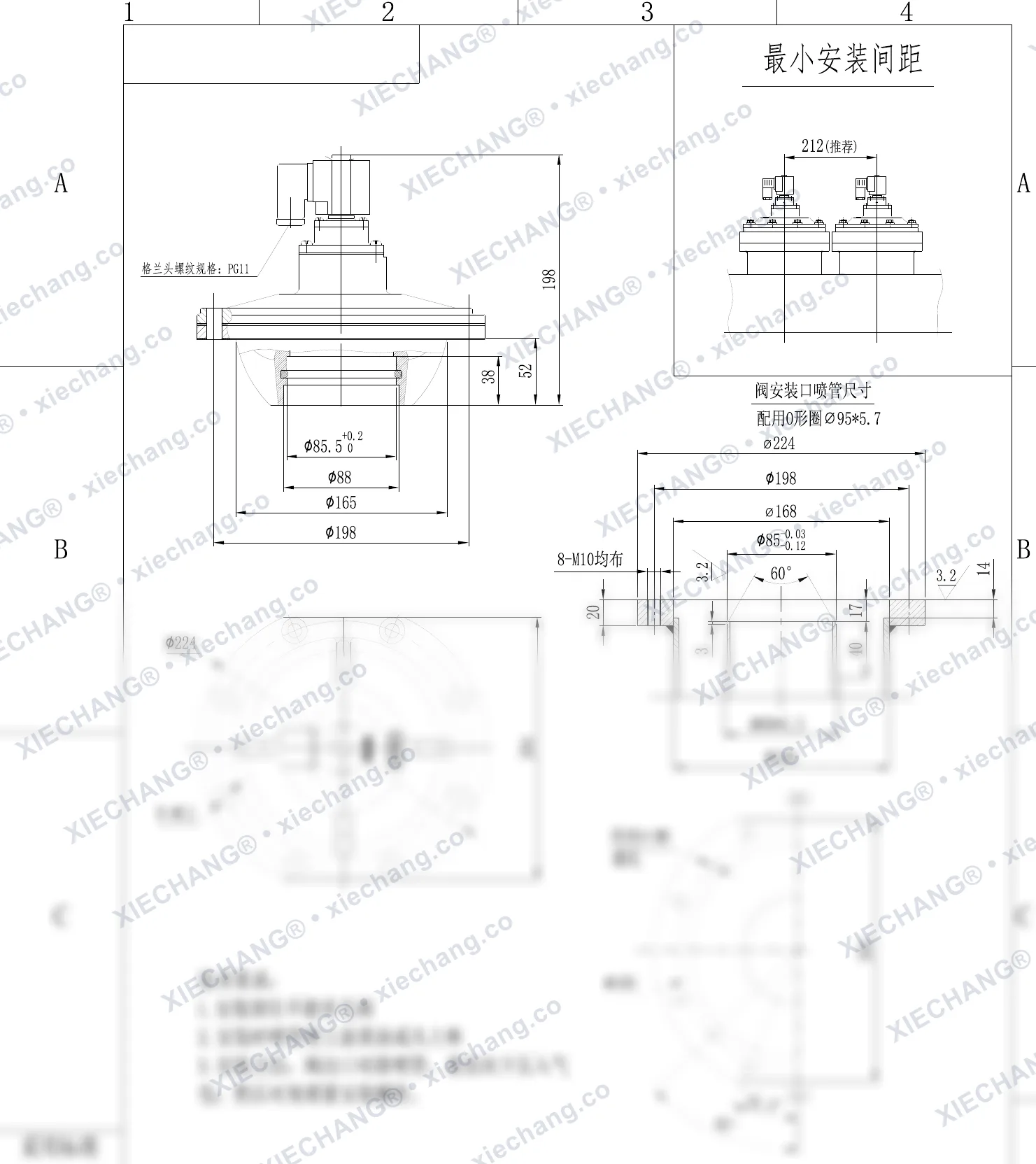

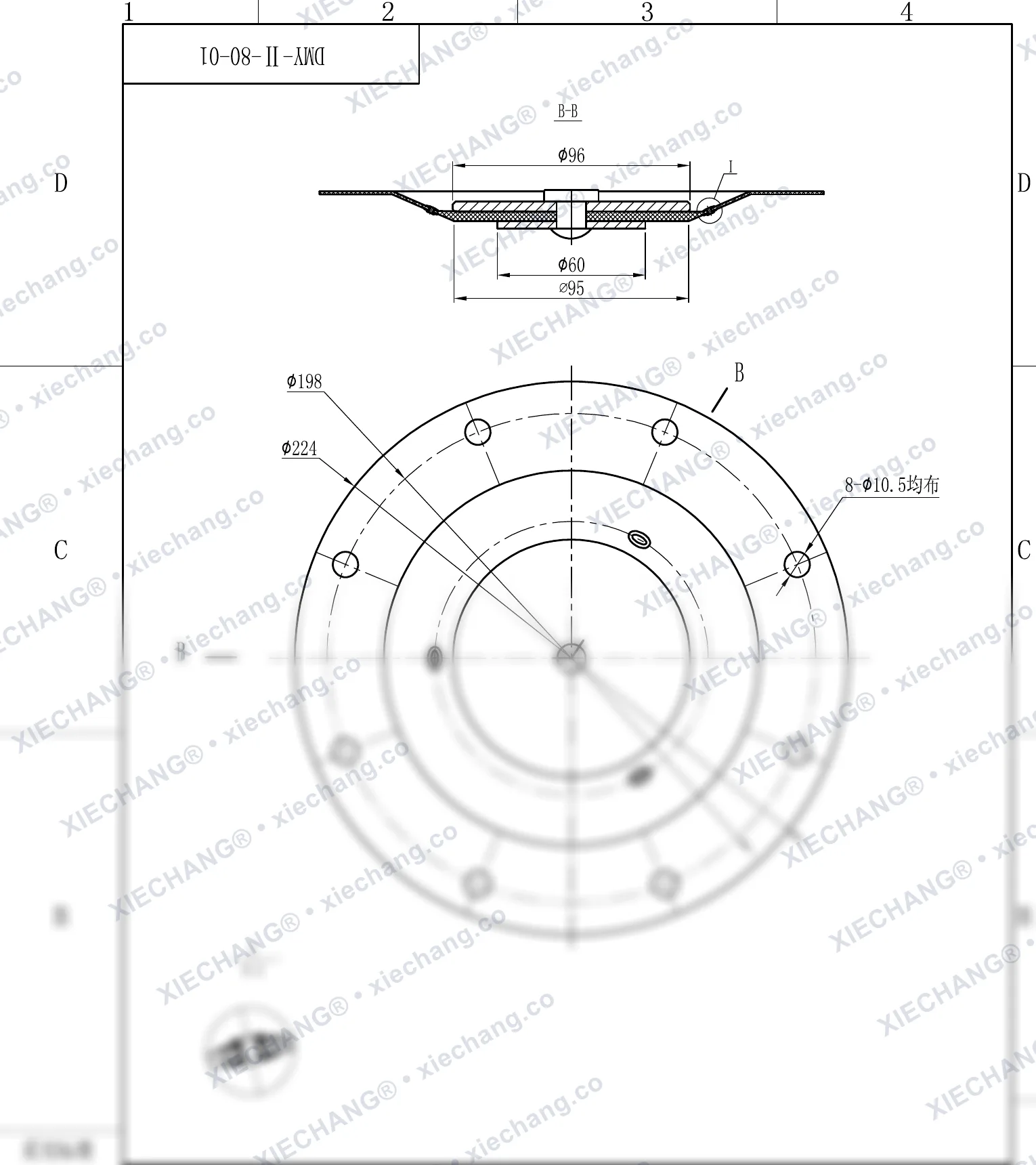

🔒 Dimensions disponibles sur demandeDMY-II-80
| Overall height | 198 mm |
|---|---|
| Neck height | 38 mm |
| Neckto base | 52 mm |
| Flange diameter inner | Ø85.5 mm |
| Seat bore | Ø88 mm |
| Flange diameter | Ø165 mm |
| Flange outer diameter | Ø198 mm |
| Bolt circle diameter | Ø224 mm |
| Side view height | 204 mm |
| Bolt hole diameter | Ø11 mm |
| Bolt hole count | 8 |
| Spray port outer | 224 mm |
| Spray port step 1 | 198 mm |
| Spray port step 2 | 168 mm |
| Spray port bore | Ø85 mm |
| Spray tube | 89*5.5 |
| Spray tube outer | 168 mm |
| Spray port bolt hole | 8-M10 |
| Reservoir bolt hole | 4-M8 |
| Reservoir bolt circle | Ø185 mm |
| Inlet height | 20 mm |
| Wall thickness | 3 mm |
| Neckto flange | 40 mm |
| Outlet length | 17 mm |
| Port depth | 🔒 |
| Mounting spacing | 🔒 |
| O ring | 🔒 |
🔒 Dimensions disponibles sur demandeDCF-YQ-102S(standard O-ring)
| Bolt circle diameter | Ø205 mm |
|---|---|
| Body diameter | Ø224 mm |
| Top view width | 209 mm |
| Bolt hole diameter | Ø11.5 mm |
| Bolt hole count | 8 |
| Flange thickness | 40 mm |
| Neckto base | 16 mm |
| Side depth | 175 mm |
| Flange step | 🔒 |
| Base length | 🔒 |
| Overall depth | 53 mm |
| Seat flange diameter | Ø225 mm |
| Reservoir bolt circle | Ø205 mm |
| Reservoir top width | 210 mm |
| Spray port outer | 225 mm |
| Spray port step 1 | 178 mm |
| Spray port bore | Ø113 mm |
| Spray tube | 114*5.5 |
| Spray tube outer | 180 mm |
| Inlet height | 20 mm |
| Flange width | 40 mm |
| Port depth | 15 mm |
| Mounting spacing | 215 mm |
| Spray port bolt hole | 🔒 |

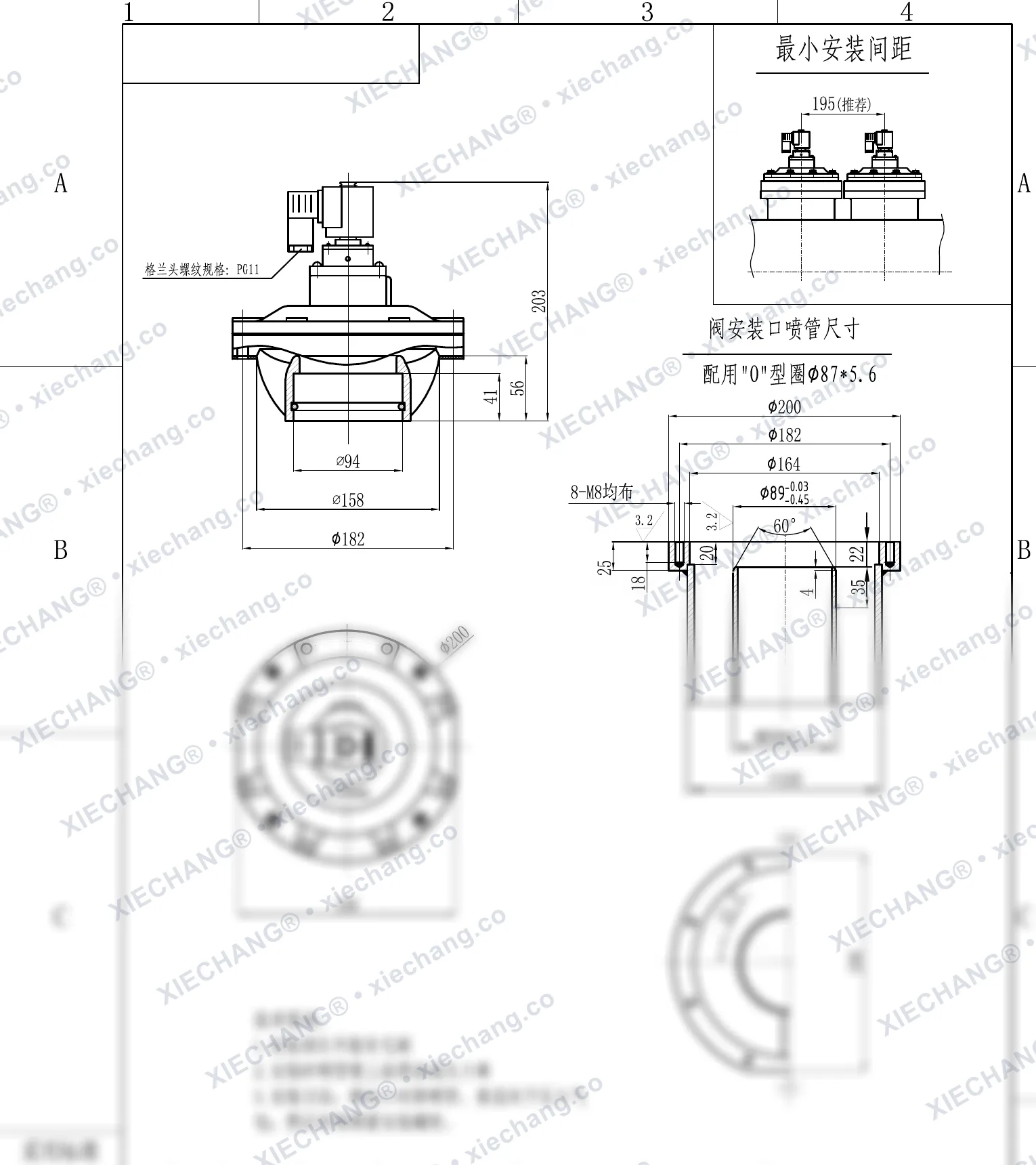

🔒 Dimensions disponibles sur demandeDCF-YQ-76S(standard O-ring)
| Overall height | 203 mm |
|---|---|
| Neckto base | 41 mm |
| Flange thickness total | 56 mm |
| Flange diameter inner | Ø94 mm |
| Flange diameter | Ø158 mm |
| Flange outer diameter | Ø182 mm |
| Bolt circle diameter | Ø200 mm |
| Side view width | 188 mm |
| Spray port outer | 200 mm |
| Spray port step 1 | 182 mm |
| Spray port step 2 | 164 mm |
| Spray port bore | Ø89 mm |
| Spray tube | 89*4.5 |
| Spray tube outer | 168 mm |
| Spray port bolt hole | 🔒 |
| Inlet height | 🔒 |
| Wall thickness | 4 mm |
| Flange width | 🔒 |
| Neckto flange | 22 mm |
| Port depth | 25 mm |
| Flange step | 18 mm |
| Reservoir bolt angle | 22.5deg |
| Reservoir view height | 188 mm |
| Mounting spacing | 195 mm |
| O ring | 87*5.6 |

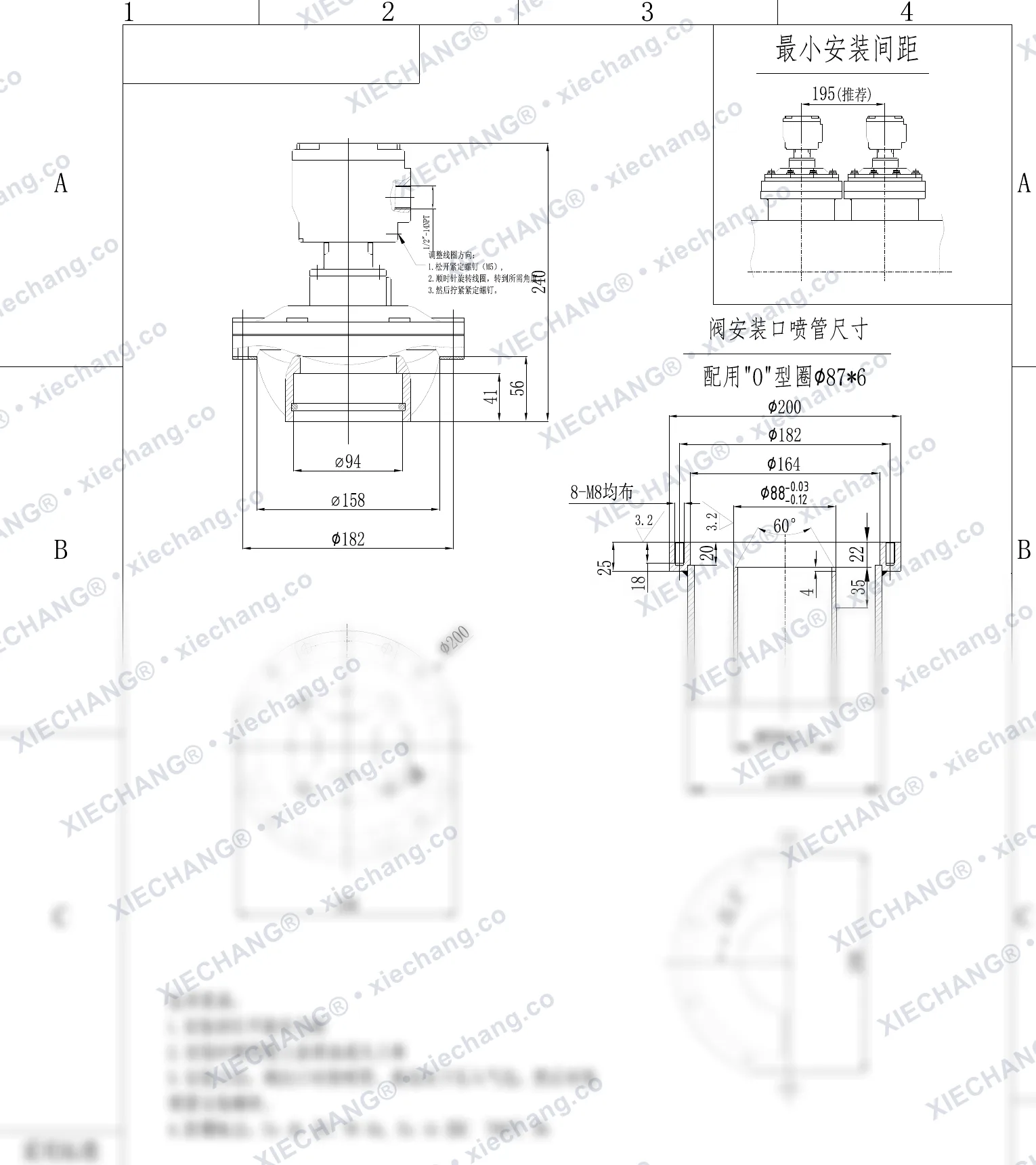

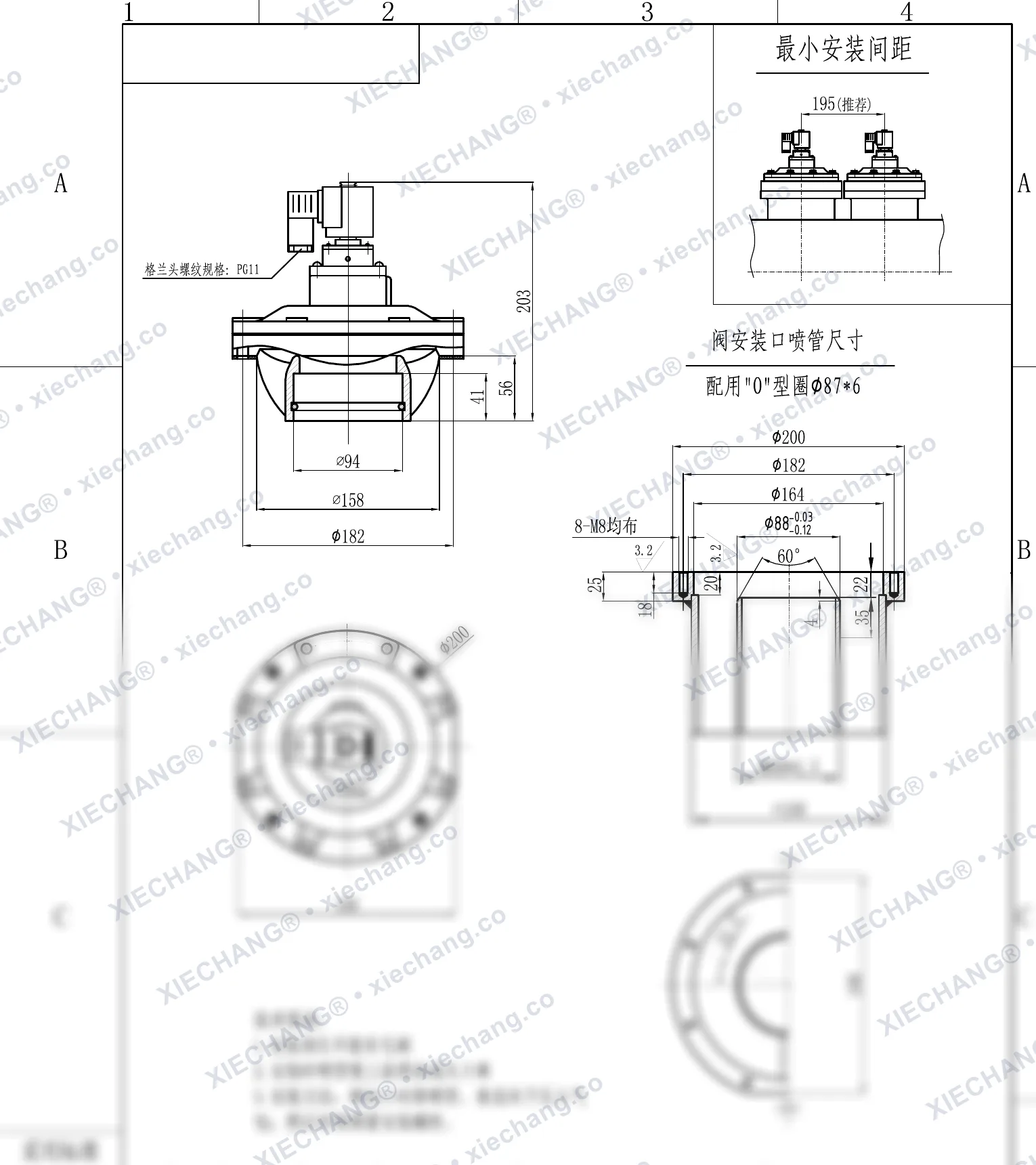

🔒 Dimensions disponibles sur demandeDCF-YQ-76S(special O-ring)
| Overall height | 203 mm |
|---|---|
| Flange outer diameter | Ø182 mm |
| Bolt circle diameter | Ø158 mm |
| Port diameter | Ø94 mm |
| Inlet height | 36 mm |
| Seat face height | 41 mm |
| Mounting spacing | 195 mm |
| Seat outer diameter | Ø168 mm |
| Nozzle flange diameter | Ø200 mm |
| Nozzle bolt circle | Ø164 mm |
| Nozzle bore diameter | Ø88 mm |
| Nozzle pipe diameter | 🔒 |
| Nozzle mounting width | 🔒 |
| O ring | 🔒 |
DMY-III Électrovanne à impulsions grand format 8-16 pouces

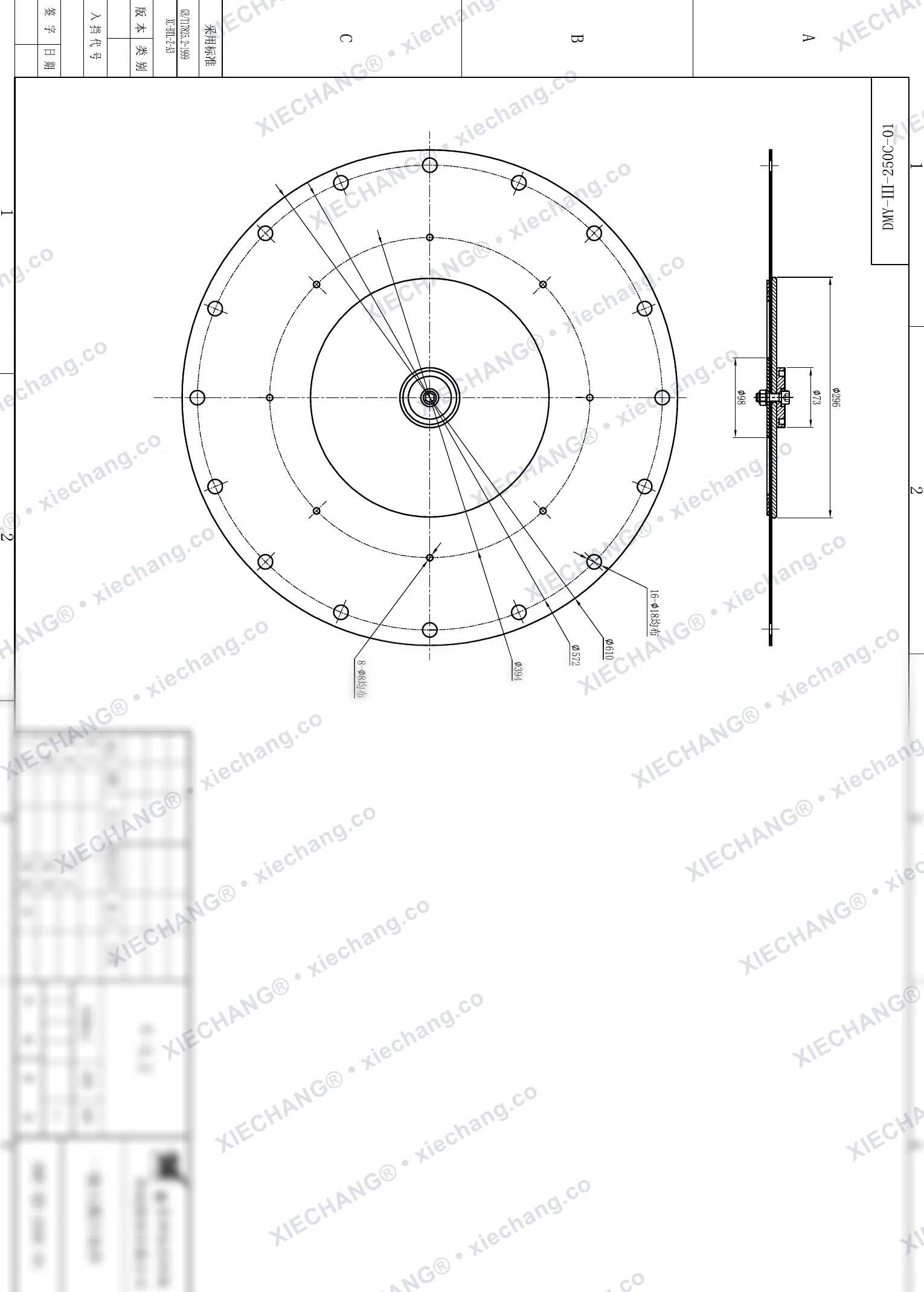

🔒 Dimensions disponibles sur demandeDMY-III-250C
| Outer flange diameter | 🔒 |
|---|---|
| Bolt circle diameter | 🔒 |
| Bolt holes | 🔒 |
| Flange thickness | 20 mm |
| Mounting height | 40 mm |
| Spray tube diameter | Ø275 mm |
| Spray tube wall | 10 mm |
| Outlet diameter | Ø512 mm |

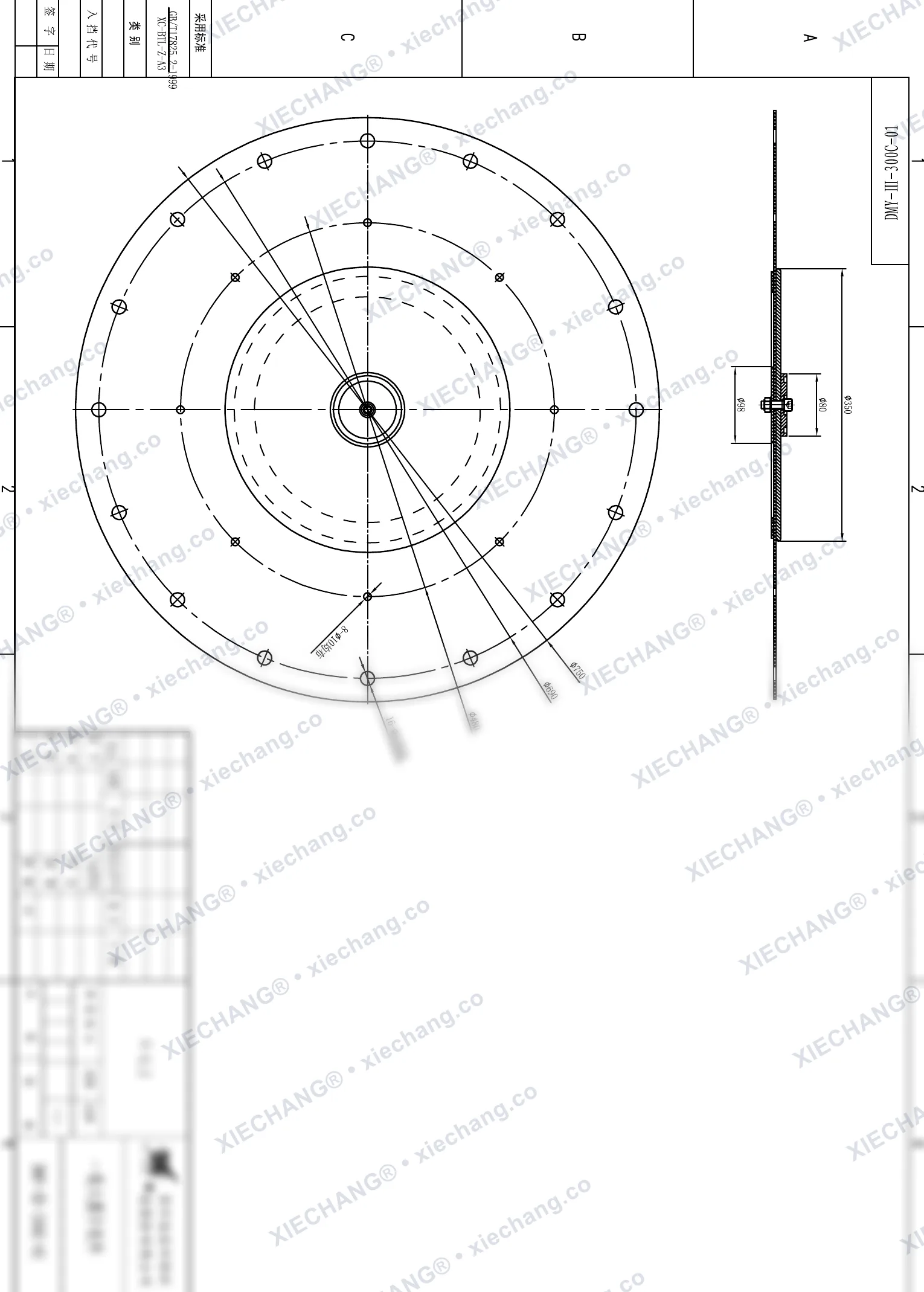

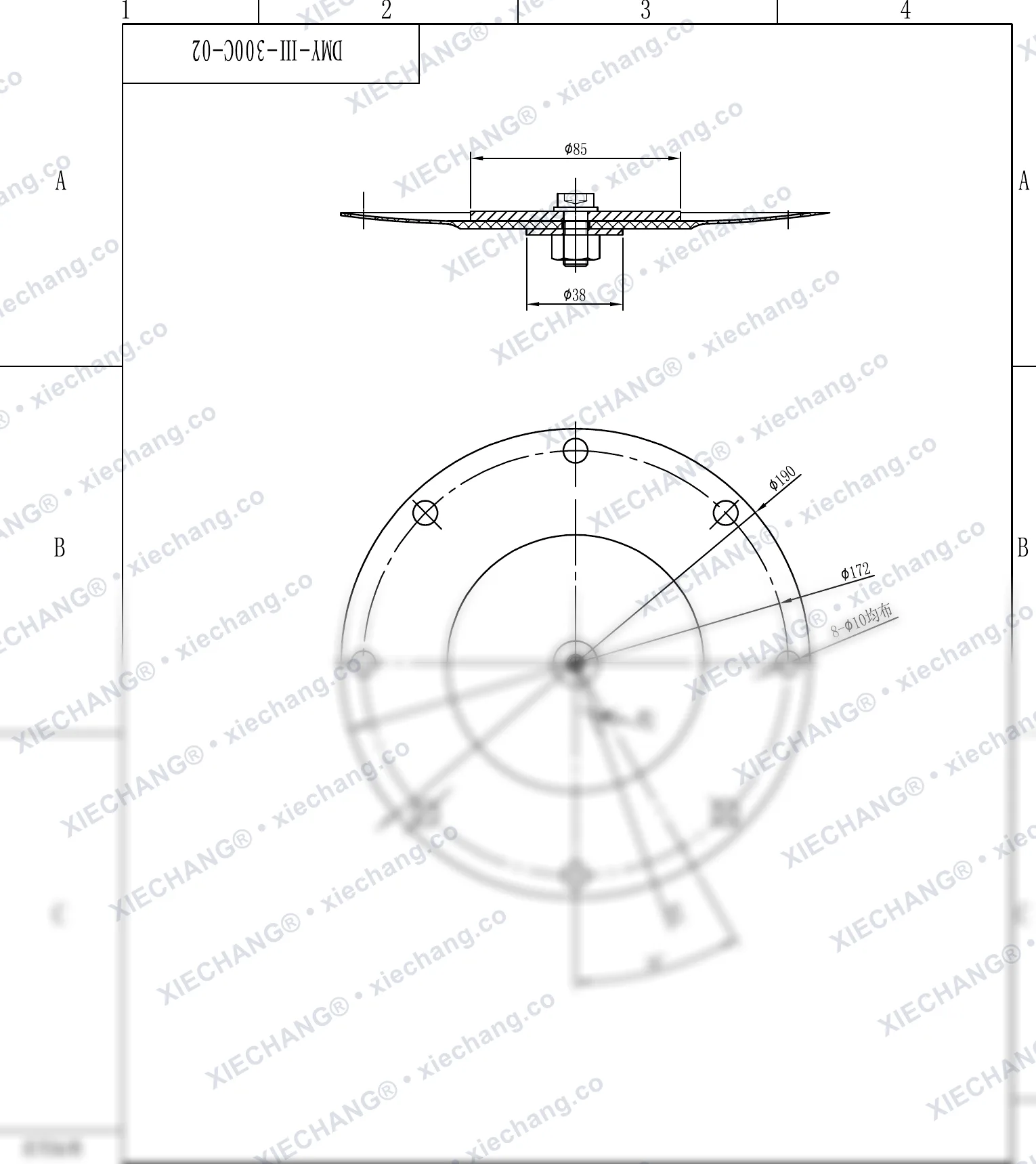

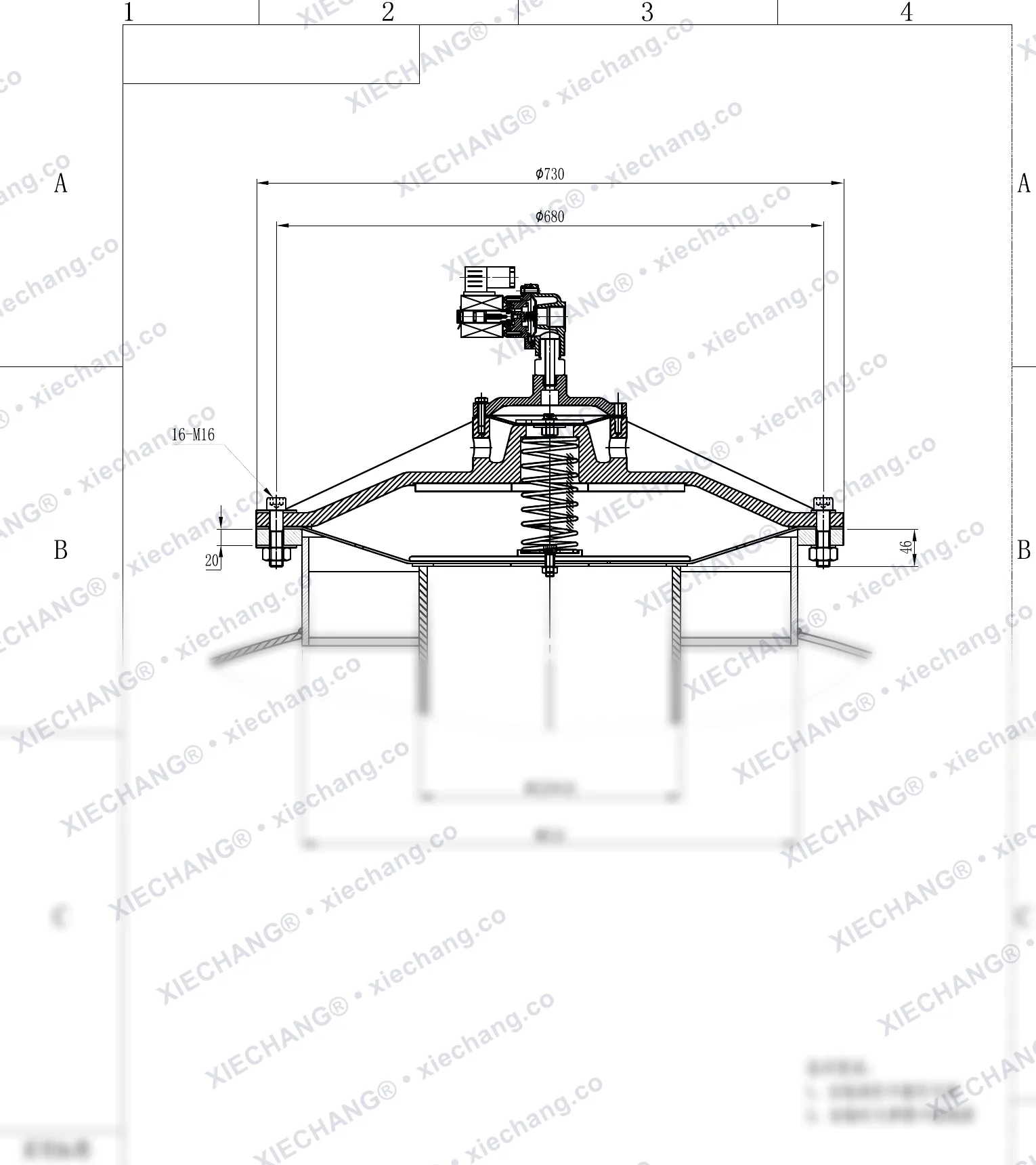

🔒 Dimensions disponibles sur demandeDMY-III-300C
| Outer flange diameter | Ø730 mm |
|---|---|
| Bolt circle diameter | Ø680 mm |
| Bolt holes | 16-M16 |
| Flange thickness | 20 mm |
| Mounting height | 46 mm |
| Spray tube diameter | 🔒 |
| Spray tube wall | 🔒 |
| Outlet diameter | 🔒 |

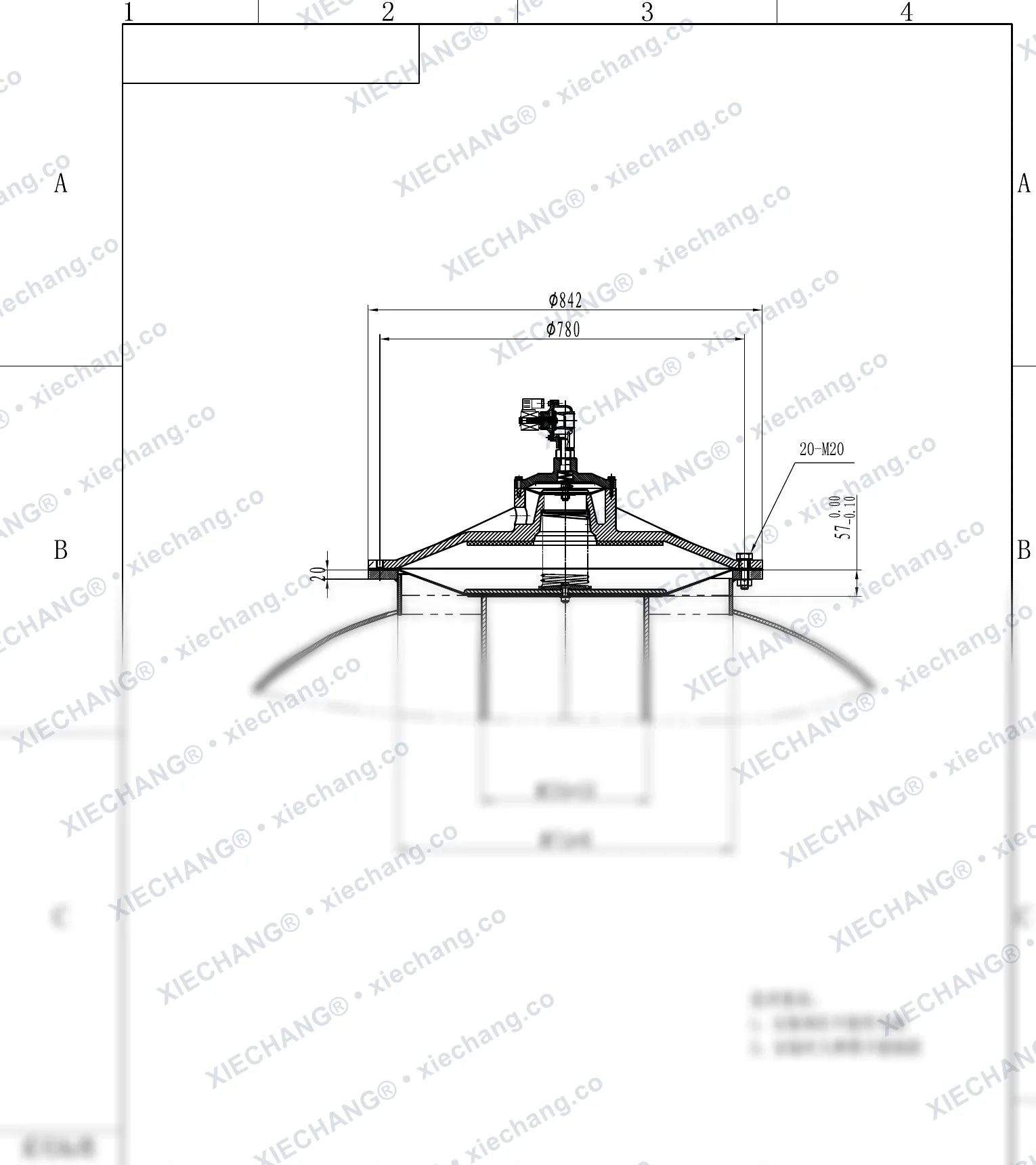

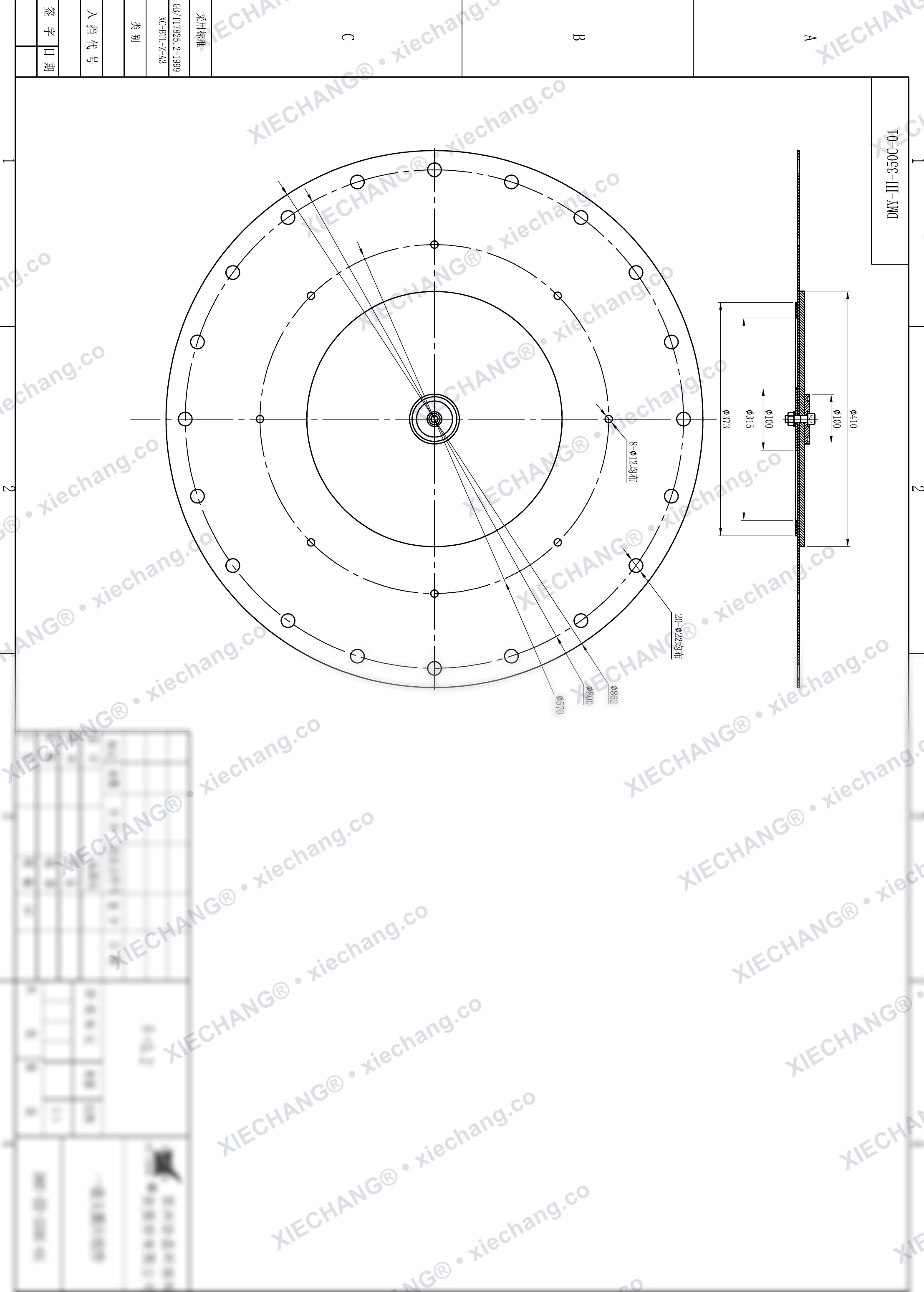

🔒 Dimensions disponibles sur demandeDMY-III-350C
| Outer flange diameter | Ø842 mm |
|---|---|
| Bolt circle diameter | Ø780 mm |
| Bolt holes | 20-M20 |
| Flange thickness | 20 mm |
| Mounting height | 🔒 |
| Spray tube diameter | Ø356 mm |
| Spray tube wall | 🔒 |
| Outlet diameter | 🔒 |
| Outlet wall | 8 mm |
🔒 Dimensions disponibles sur demandeDMY-III-400C
| Outer flange diameter | 🔒 |
|---|---|
| Bolt circle diameter | 🔒 |
| Outlet diameter | Ø806 mm |
| Spray tube diameter | 🔒 |
| Spray tube wall | 10 mm |
| Mounting height | 50 mm |
| Flange thickness | 20 mm |
| Bolt holes | 24-M24 |
🔒 Dimensions disponibles sur demandeDMY-III-200C
| Outer flange diameter | 🔒 |
|---|---|
| Bolt circle diameter | 🔒 |
| Bolt holes | 12-M10 |
| Flange thickness | 🔒 |
| Mounting height | 35 mm |
| Spray tube diameter | Ø220 mm |
| Spray tube wall | 10 mm |
| Outlet diameter | Ø435 mm |
Électrovanne à impulsions à angle droit DCF-Z pour dépoussiéreur

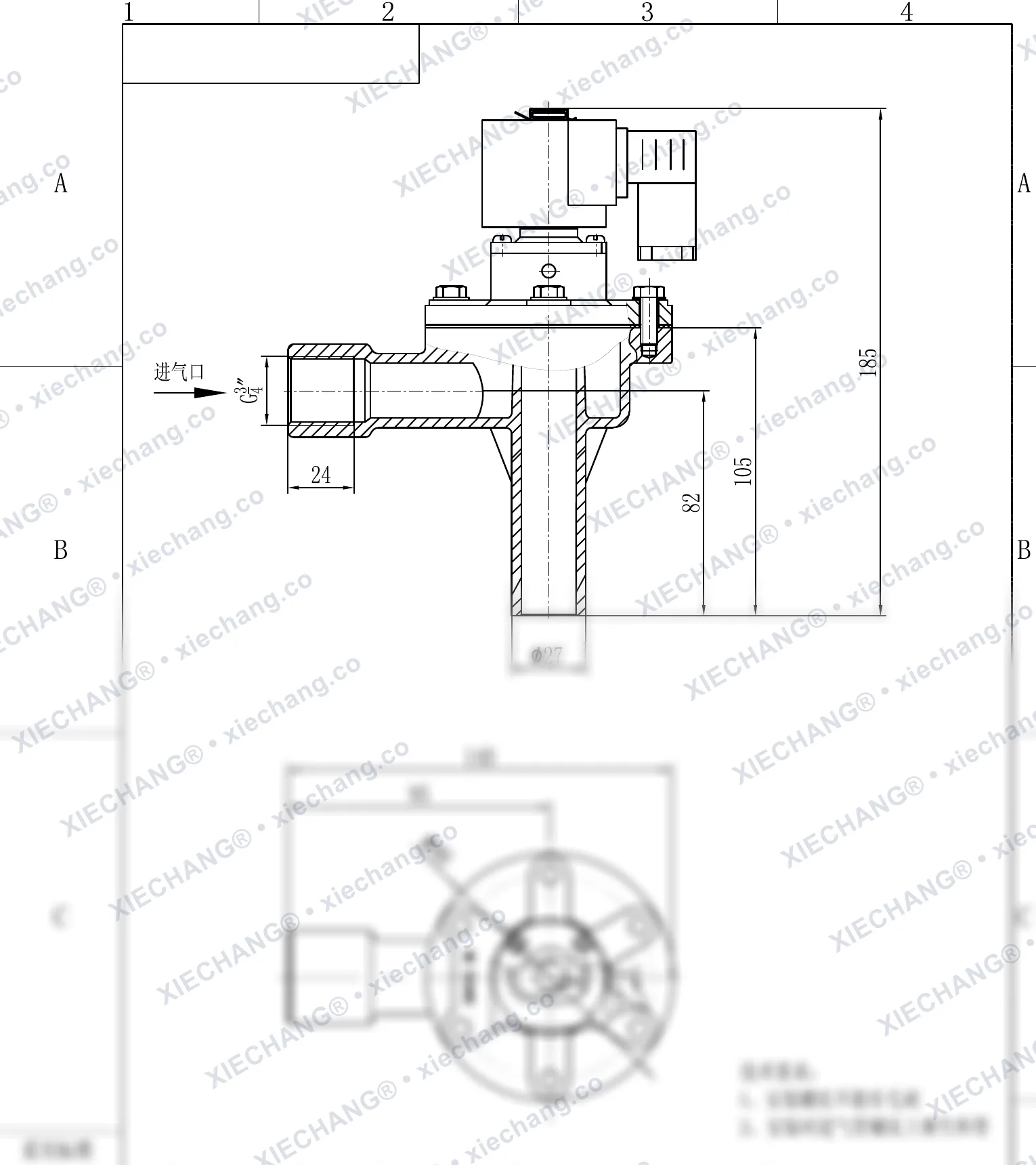

🔒 Dimensions disponibles sur demandeDCF-2L-B
| Overall height | 🔒 |
|---|---|
| Port center height | 🔒 |
| Inlet center height | 82 mm |
| Outlet diameter | 🔒 |
| Inlet length | 24 mm |
| Base length | 140 mm |
| Bolt spacing | 95 mm |
| Bolt circle diameter | Ø90 mm |

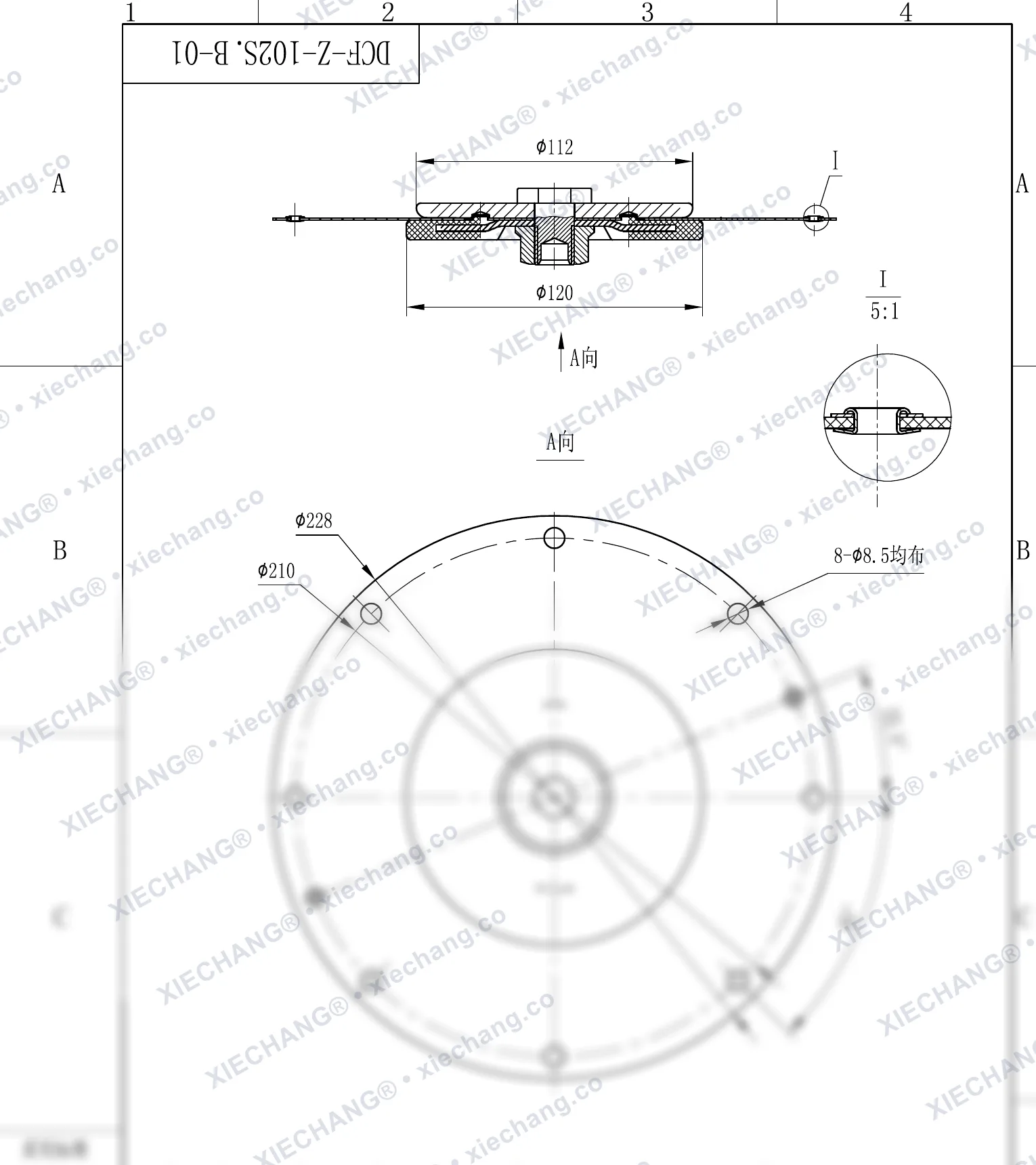

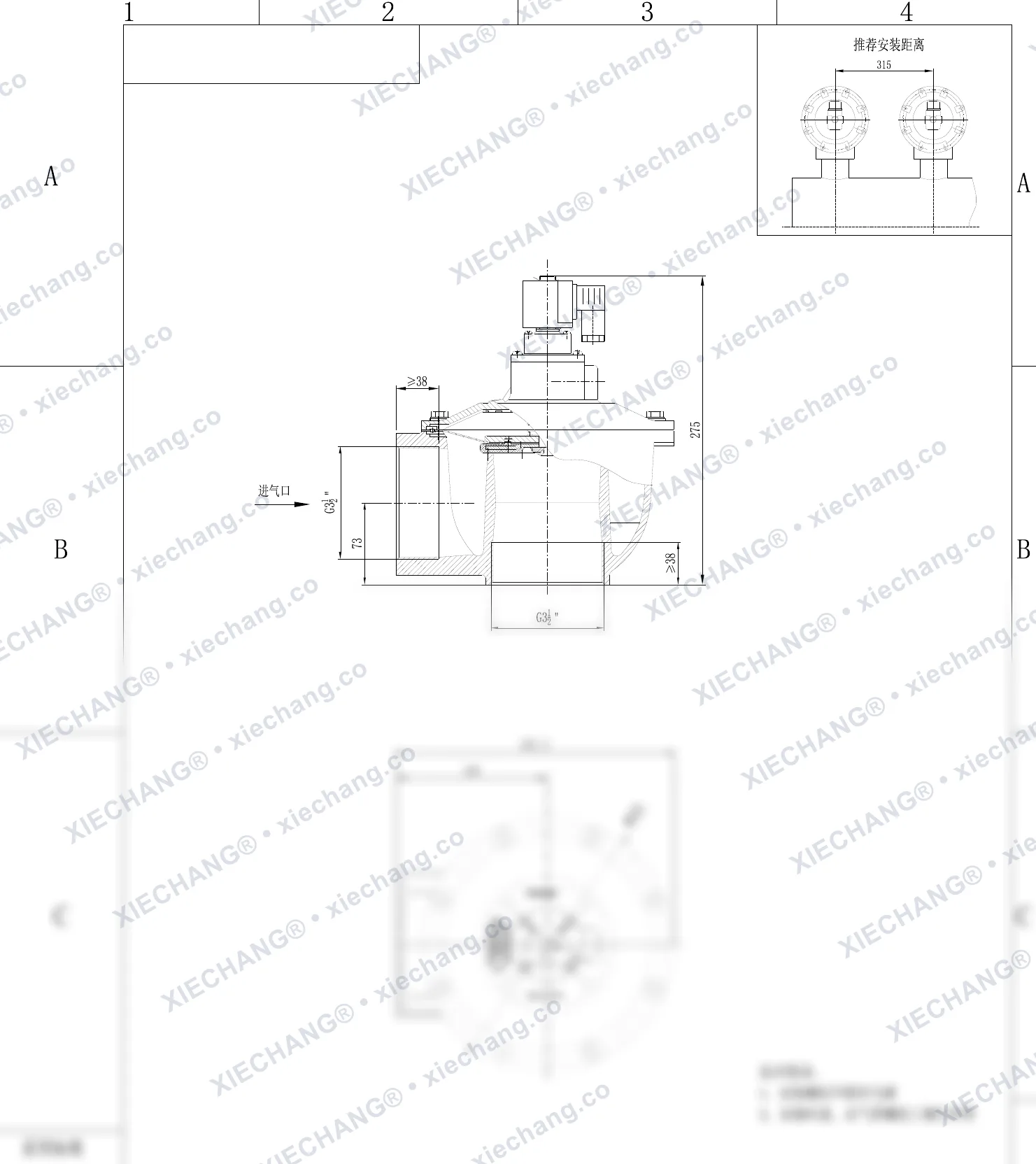

🔒 Dimensions disponibles sur demandeDCF-Z-102S.B
| Overall height | 🔒 |
|---|---|
| Inlet center height | 🔒 |
| Base length | 🔒 |
| Bolt spacing | 135 mm |
| Bolt circle diameter | Ø205 mm |
| Mounting spacing | 315 mm |

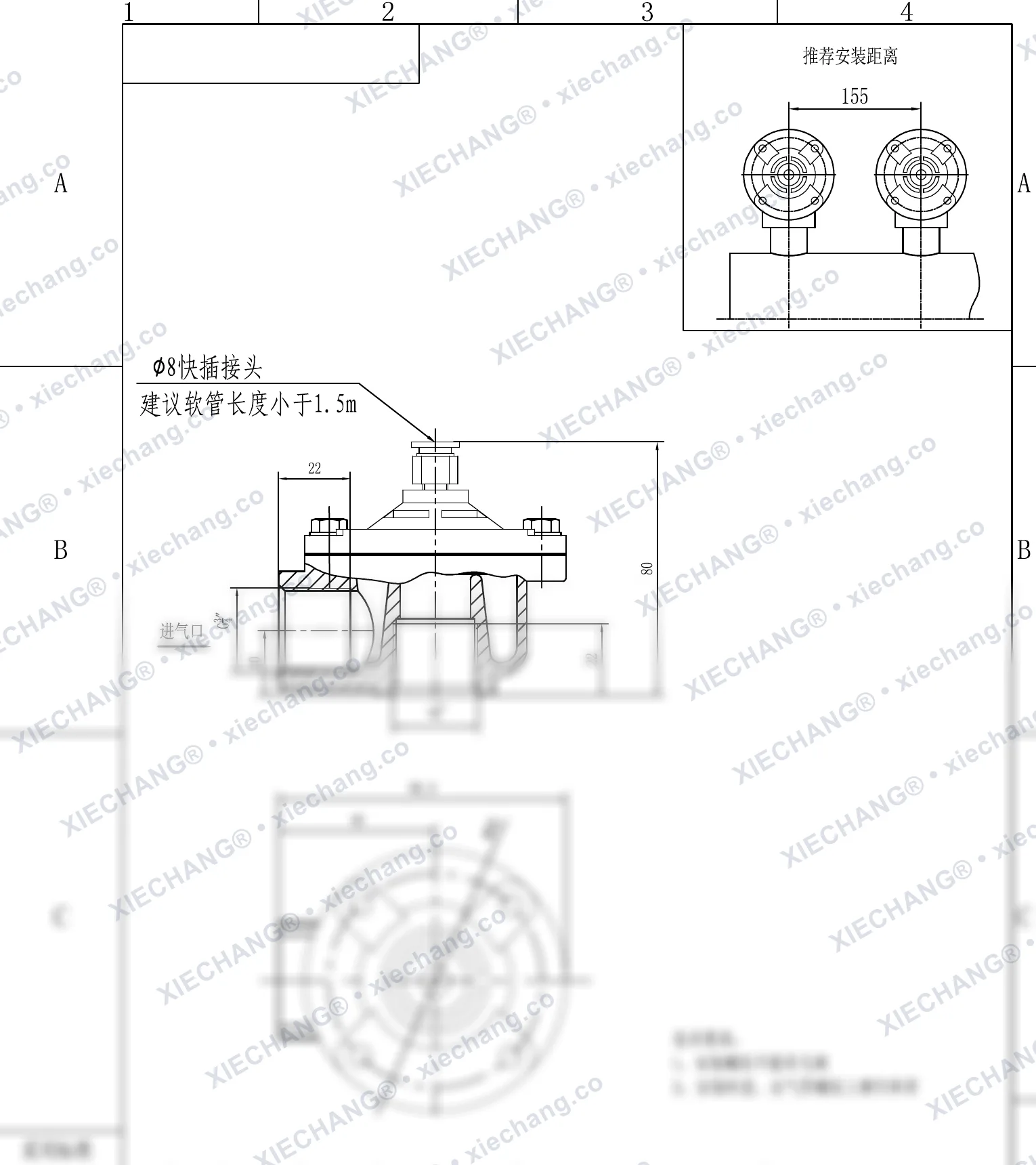

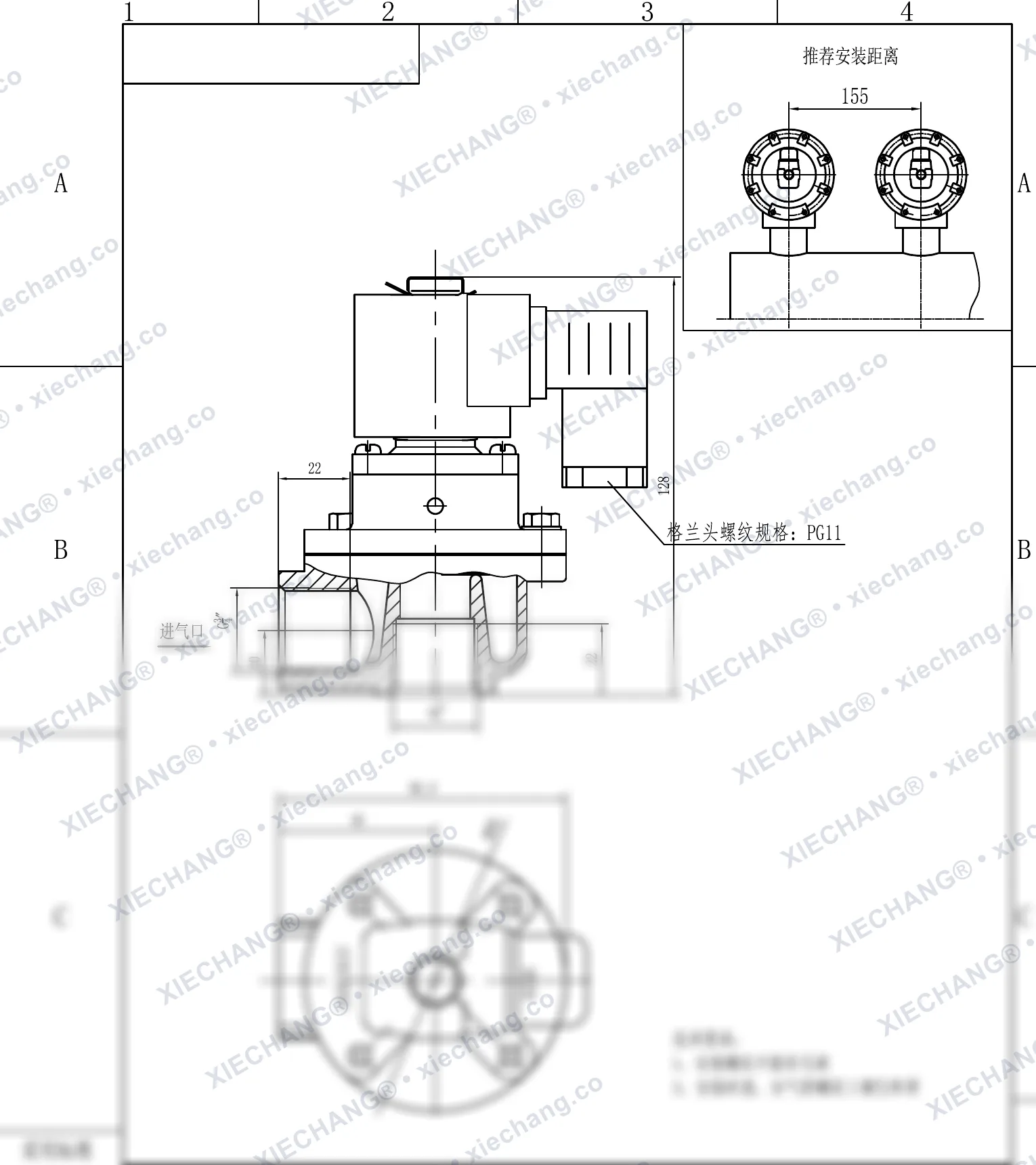

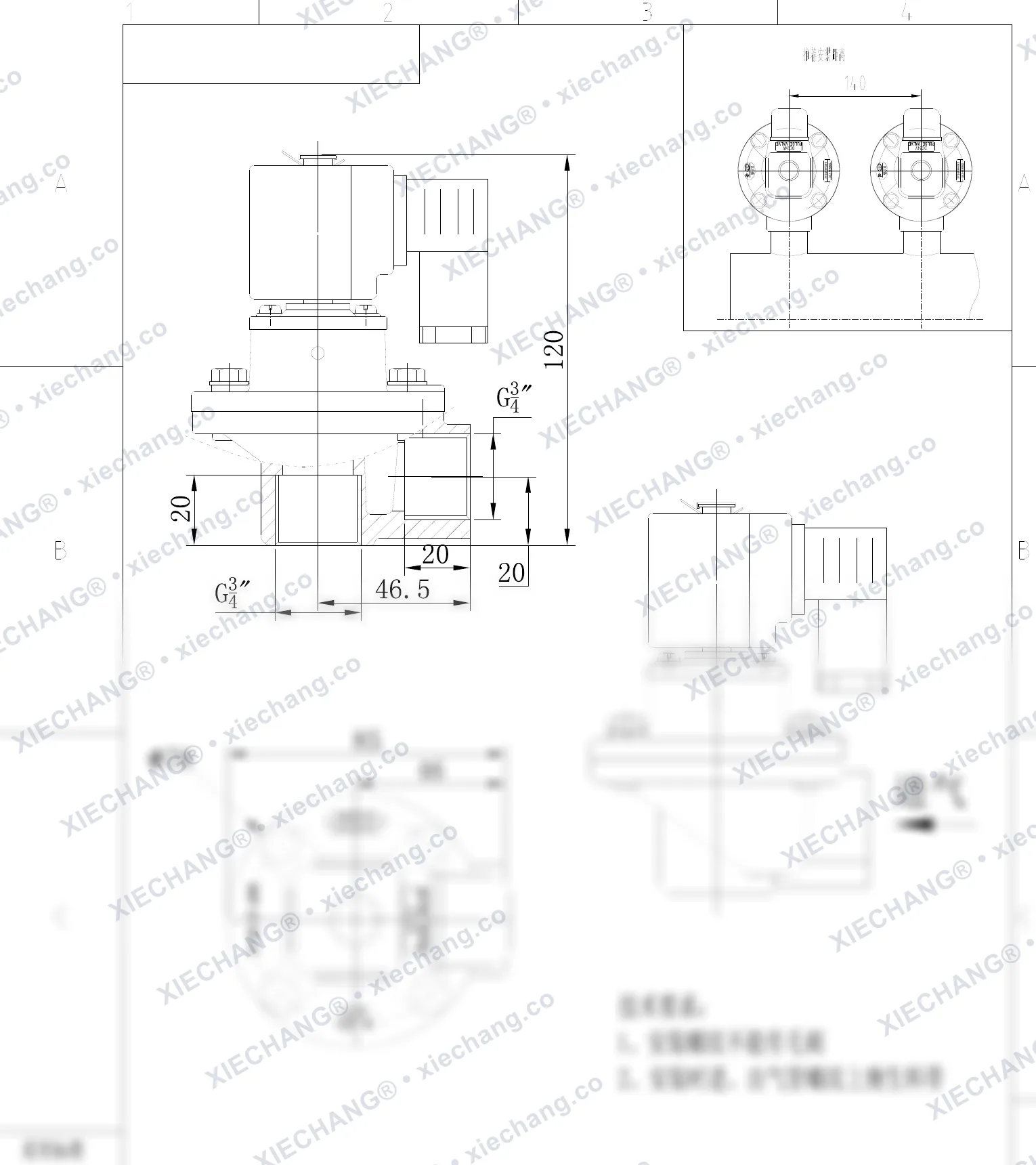

🔒 Dimensions disponibles sur demandeDCF-Z-20
| Overall height | 128 mm |
|---|---|
| Inlet height | 🔒 |
| Outlet height | 🔒 |
| Inlet length | 🔒 |
| Base length | 88 mm |
| Bolt spacing | 48 mm |
| Bolt circle diameter | Ø80 mm |
| Mounting spacing | 155 mm |

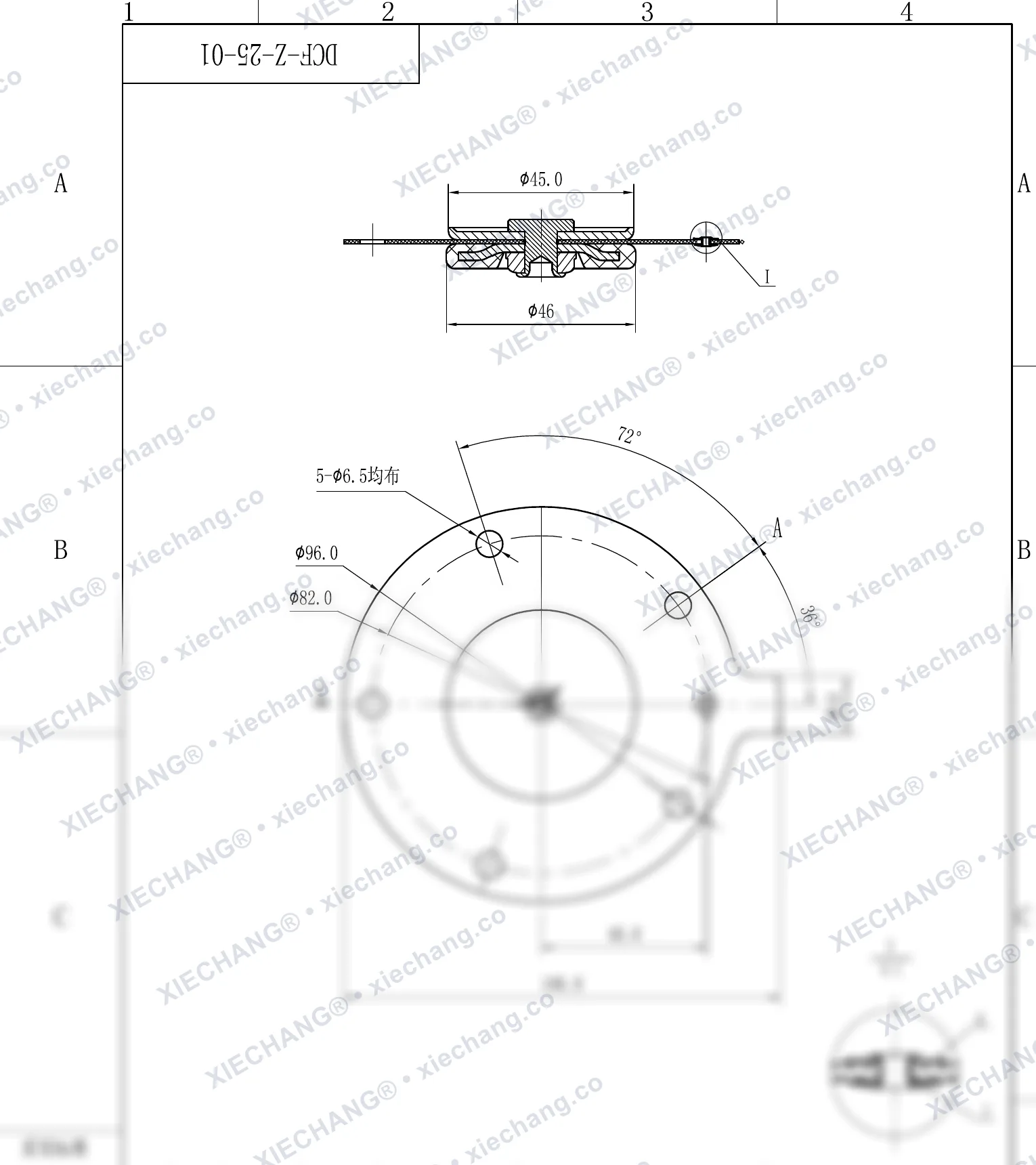

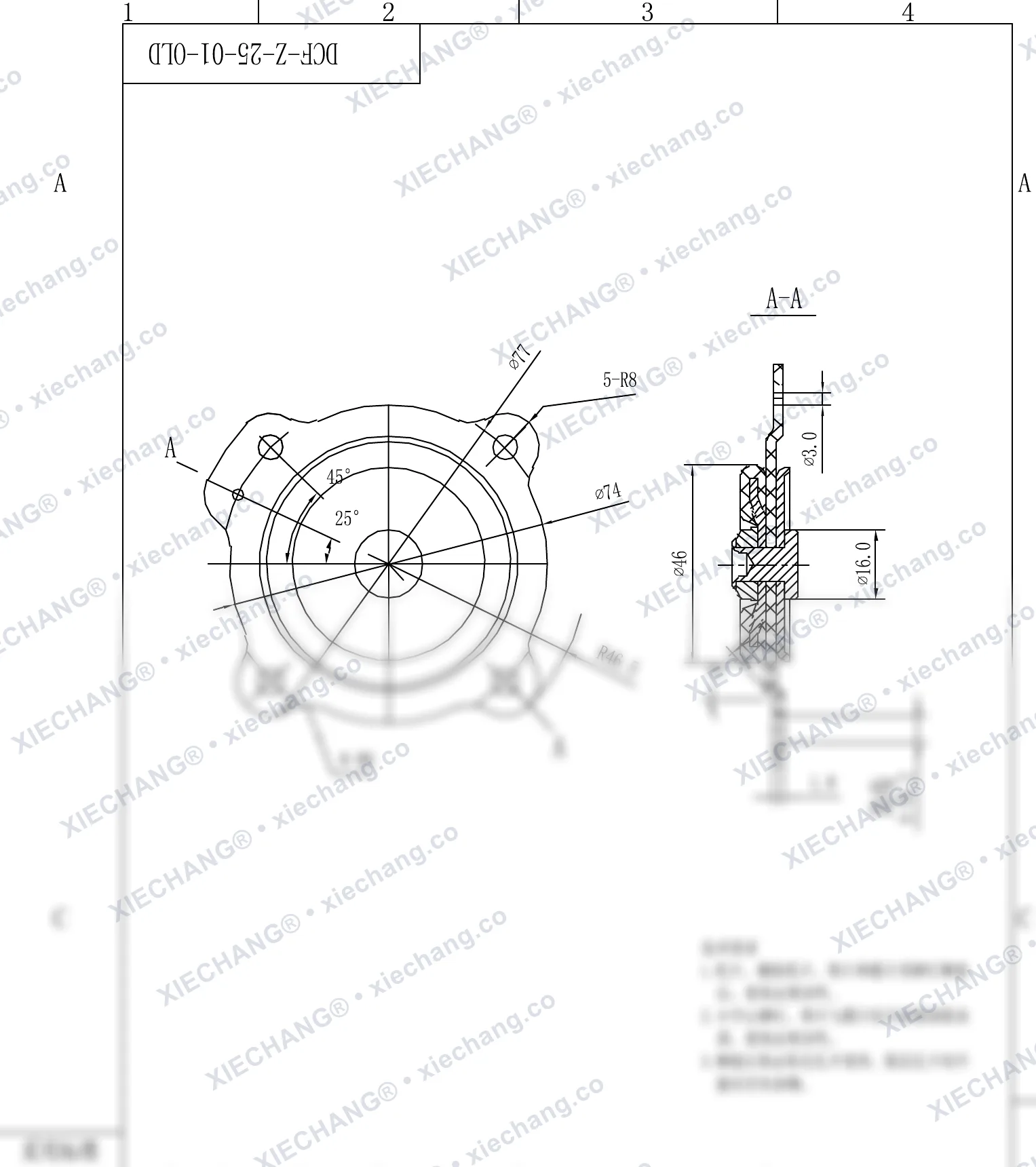

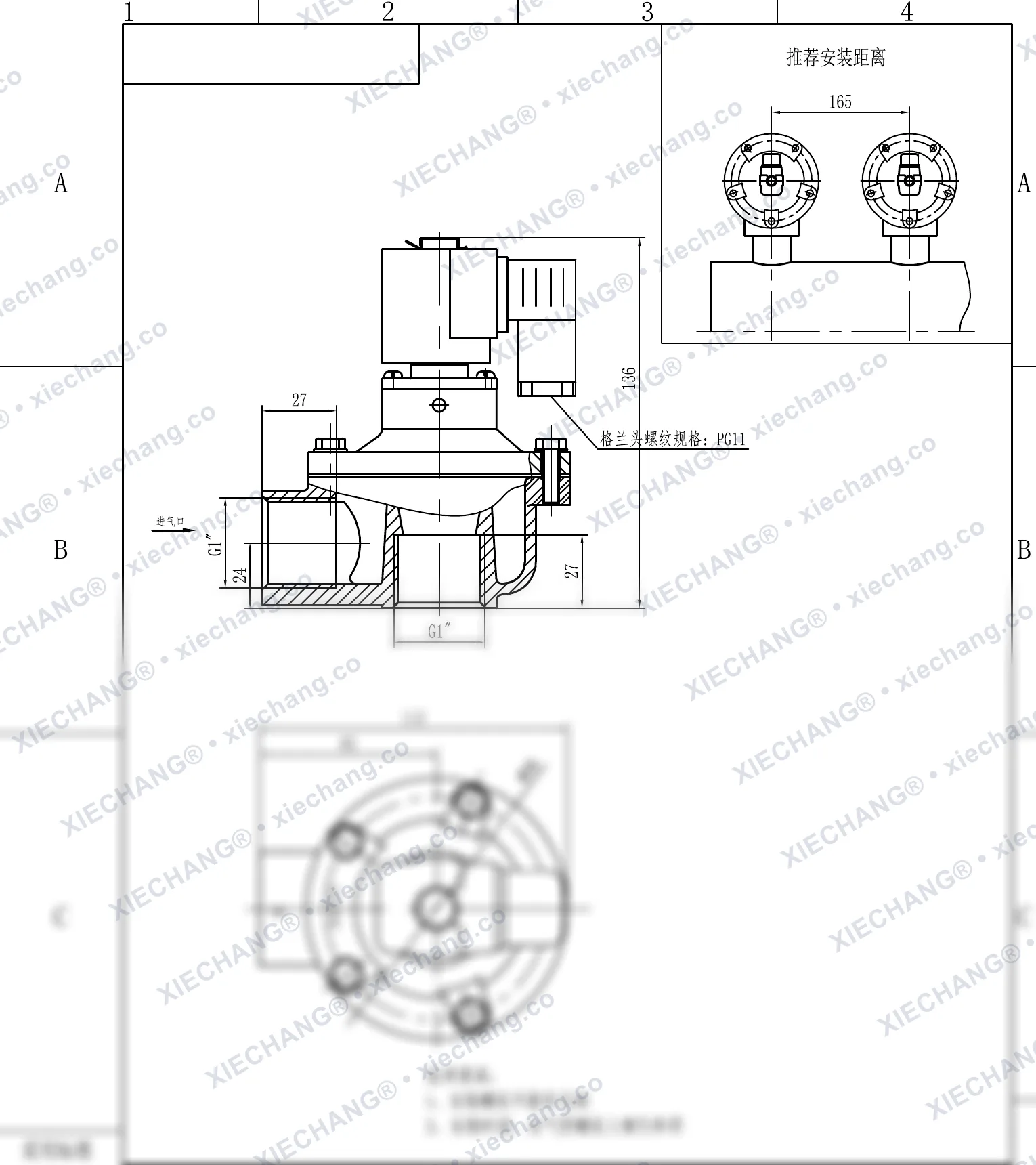

🔒 Dimensions disponibles sur demandeDCF-Z-25
| Overall height | 🔒 |
|---|---|
| Inlet height | 🔒 |
| Outlet height | 27 mm |
| Inlet length | 🔒 |
| Base length | 113 mm |
| Bolt spacing | 65 mm |
| Bolt circle diameter | Ø96 mm |
| Mounting spacing | 165 mm |

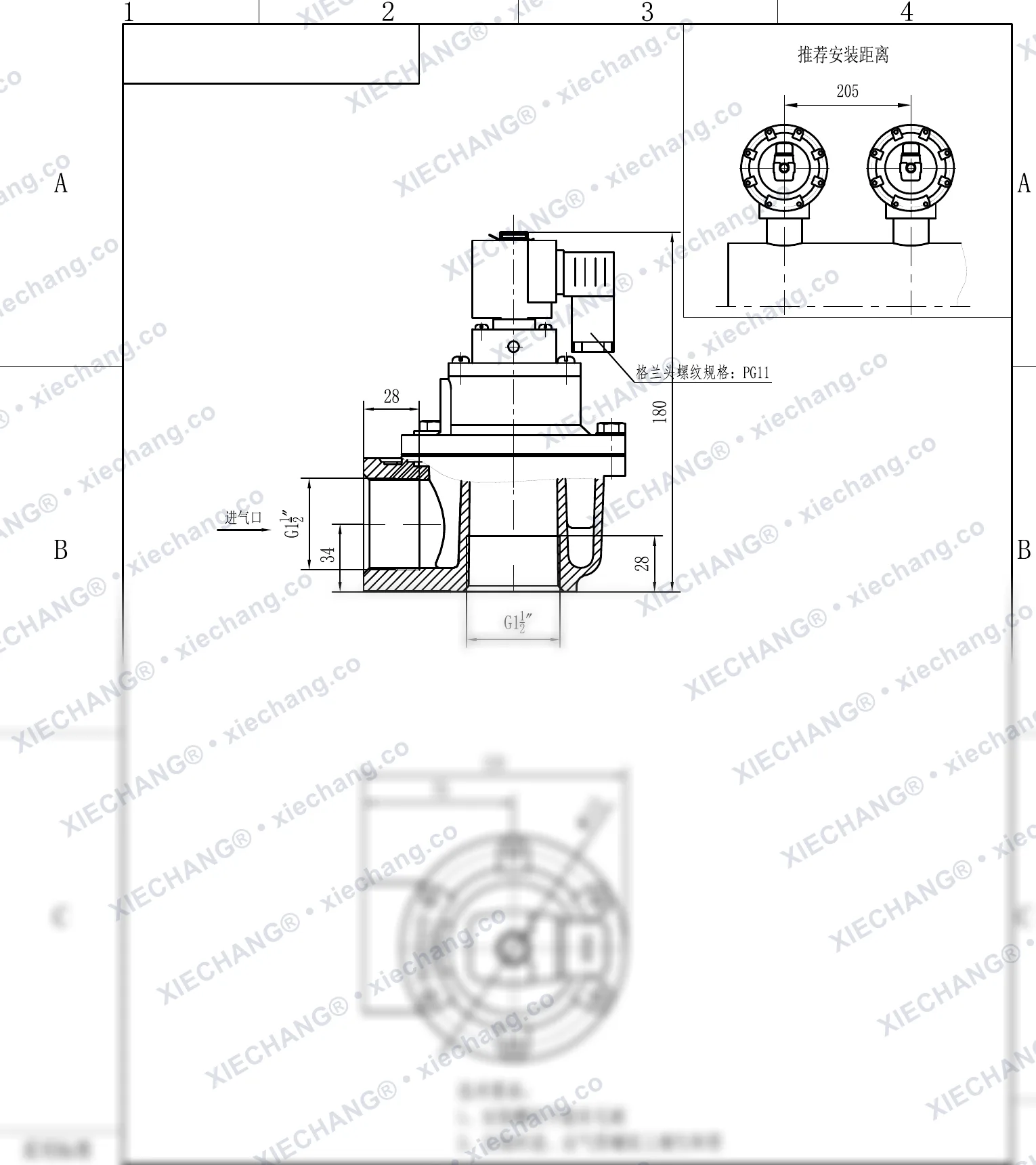

🔒 Dimensions disponibles sur demandeDCF-Z-40S
| Overall height | 🔒 |
|---|---|
| Inlet height | 🔒 |
| Outlet height | 🔒 |
| Inlet length | 28 mm |
| Base length | 131 mm |
| Bolt spacing | 75 mm |
| Bolt circle diameter | Ø112 mm |
| Mounting spacing | 205 mm |

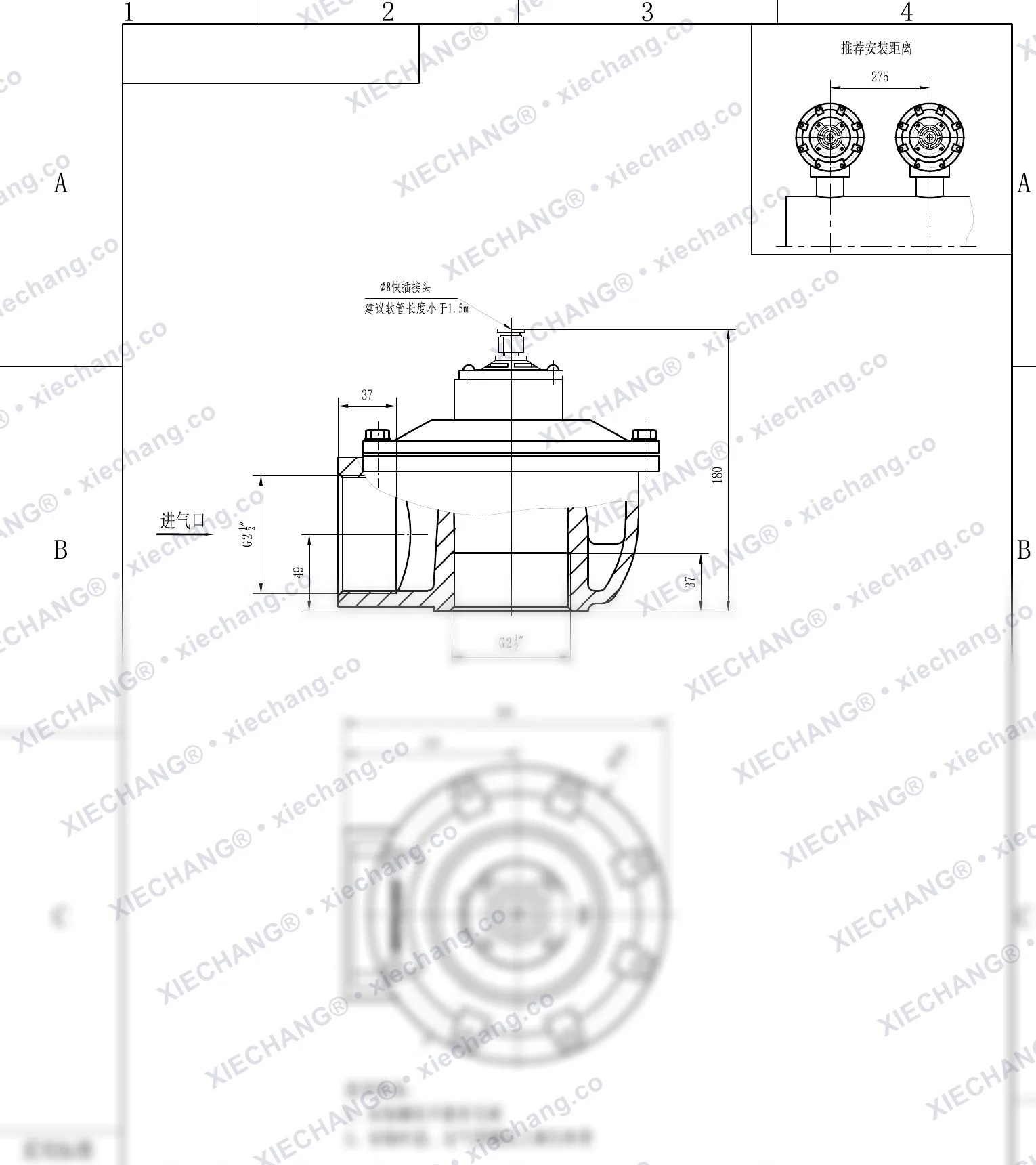

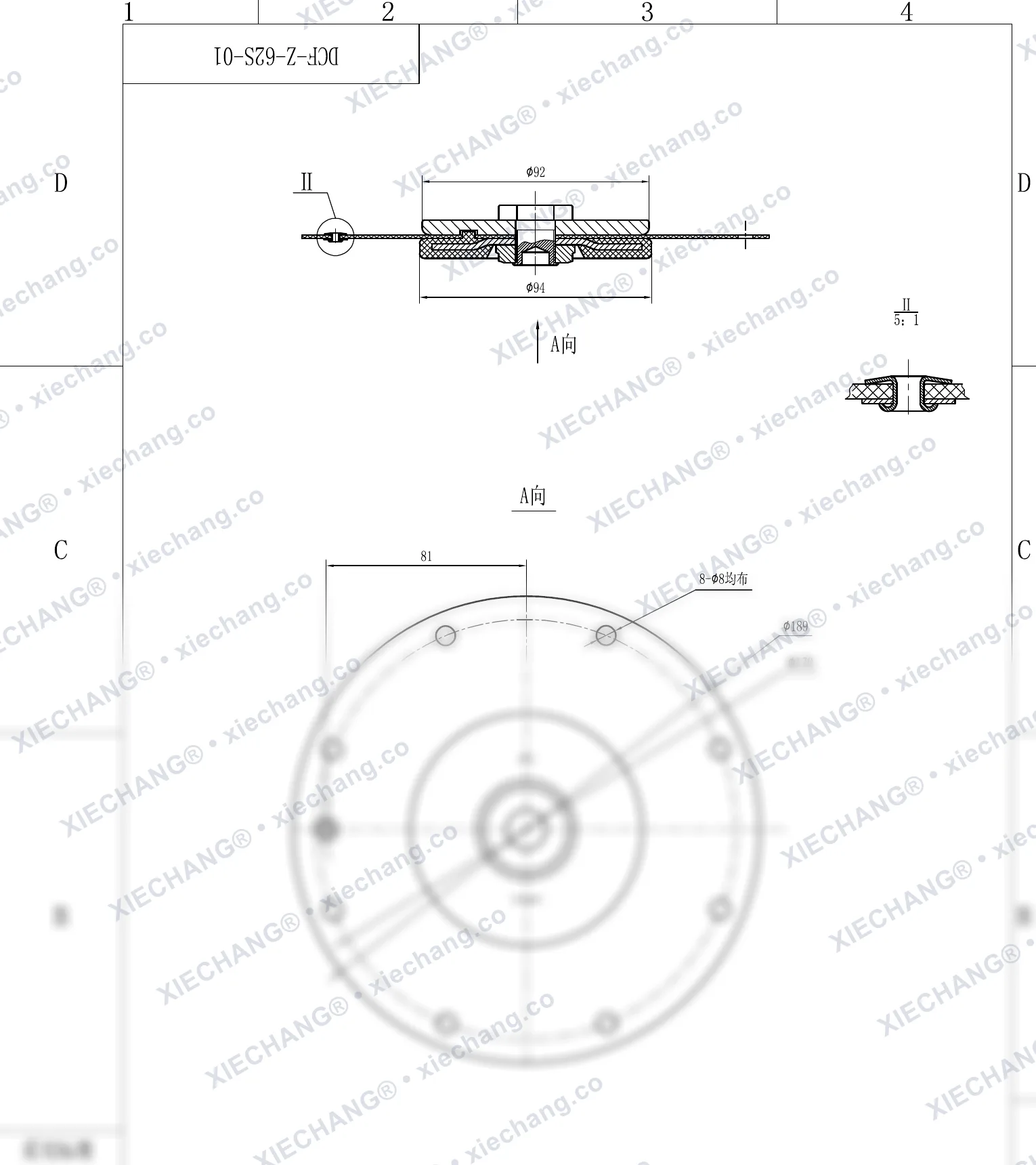

🔒 Dimensions disponibles sur demandeDCF-Z-62S
| Overall height | 226 mm |
|---|---|
| Inlet height | 49 mm |
| Outlet height | 37 mm |
| Inlet length | 37 mm |
| Base length | 🔒 |
| Bolt spacing | 110 mm |
| Bolt circle diameter | 🔒 |
| Mounting spacing | 🔒 |
🔒 Dimensions disponibles sur demandeDCF-ZM-25
| Overall height | 🔒 |
|---|---|
| Port center height low | 53 mm |
| Port center height high | 🔒 |
| Inlet outer diameter | 🔒 |
| Inlet bore diameter | Ø32 mm |
| Inlet socket depth | 30 mm |
| Base length | 47 mm |
| Outlet length | 93 mm |
| Overall length | 139 mm |

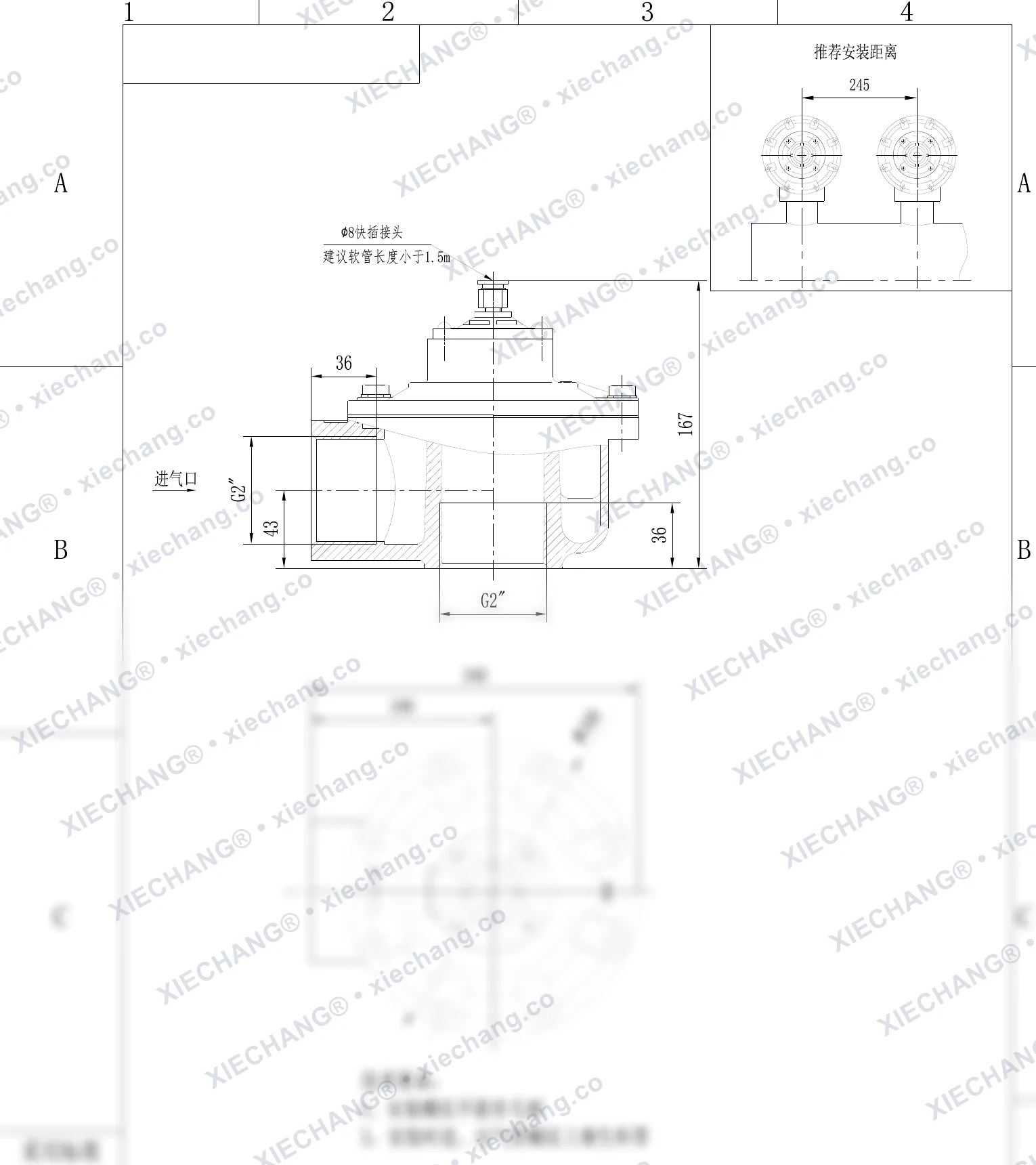

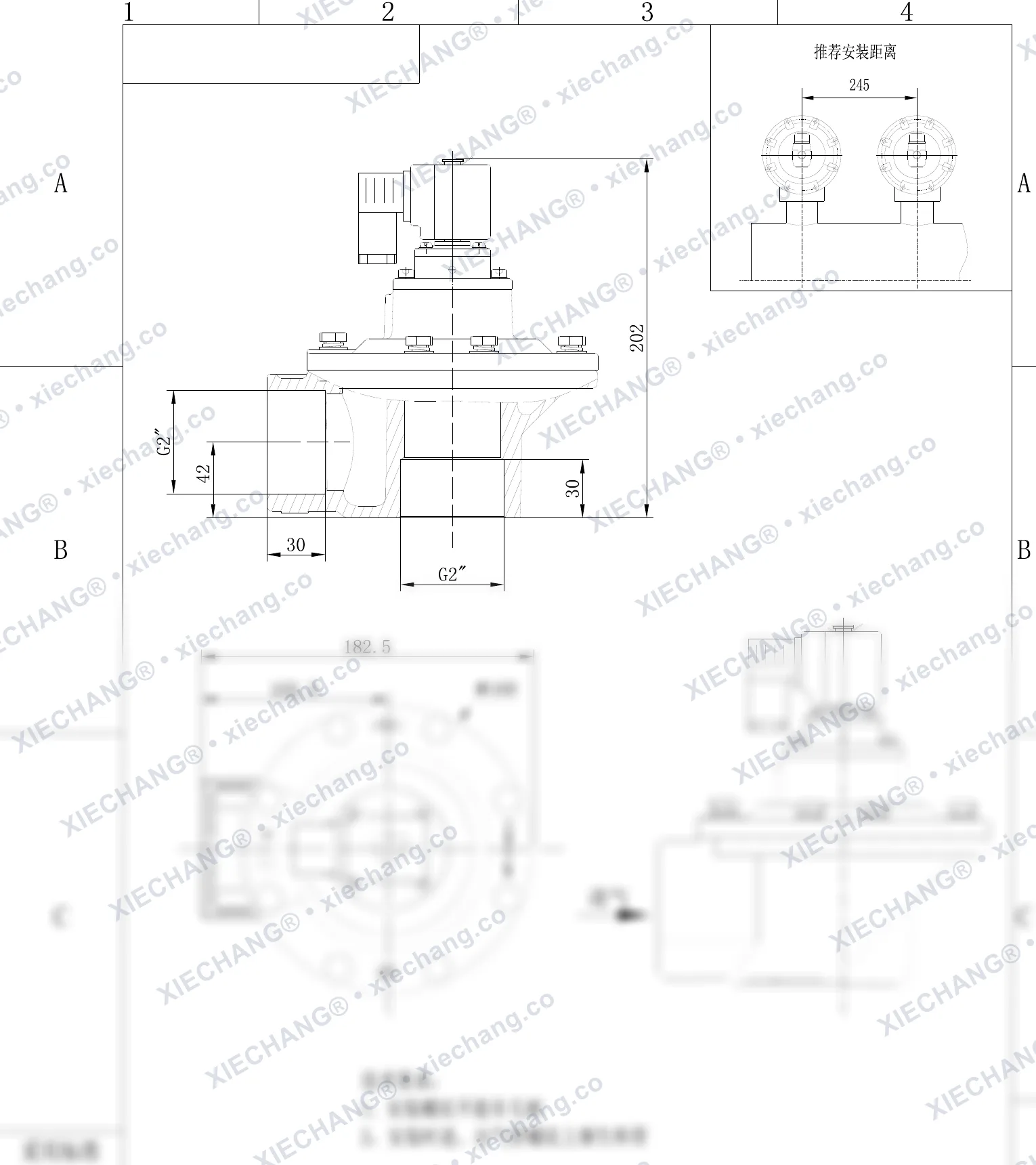

🔒 Dimensions disponibles sur demandeDCF-Z-50S
| Overall height | 206 mm |
|---|---|
| Body offset | 36 mm |
| Inlet center height | 43 mm |
| Outlet center height | 36 mm |
| Flange diameter | 🔒 |
| Bolt circle diameter | 🔒 |
| Base width | 🔒 |

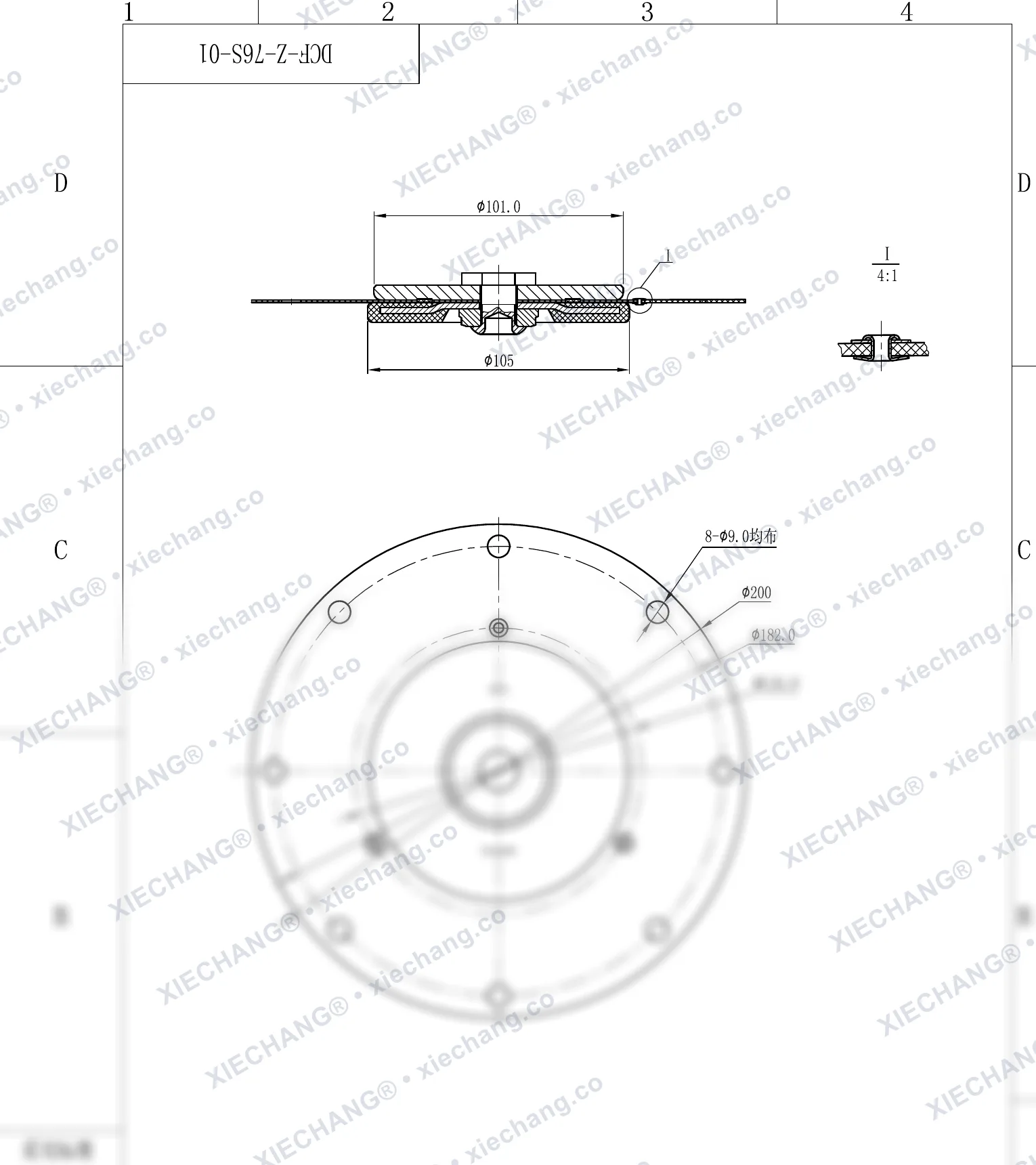

🔒 Dimensions disponibles sur demandeDCF-Z-76S
| Overall height | 🔒 |
|---|---|
| Inlet center height | 59 mm |
| Outlet center height | 38 mm |
| Flange diameter | Ø200 mm |
| Bolt circle diameter | 🔒 |
| Base width | 🔒 |
Électrovanne à impulsions à l'épreuve des flammes Ex db
🔒 Dimensions disponibles sur demandeDMY-F2-II-80
| Mounting spacing | 212 mm |
|---|---|
| Overall height | 240 mm |
| Seat height 1 | 38 mm |
| Seat height 2 | 52 mm |
| Seal bore | Ø85.5 mm |
| Inner step | 88 mm |
| Body flange | 165 mm |
| Outer flange | 198 mm |
| Bolt circle diameter | 🔒 |
| Face width | 🔒 |
| Spud flange | 185 mm |
| Nozzle outer | 224 mm |
| Nozzle flange | 198 mm |
| Nozzle step | 168 mm |
| Nozzle bore | Ø85 mm |
| Nozzle pipe | 89 mm |
| Nozzle pipe wall | 5.5 mm |
| Nozzle flange thk | 20 mm |
| Nozzle lip | 17 mm |
| Nozzle depth | 🔒 |
🔒 Dimensions disponibles sur demandeDCF-F2-Y-102S.B(special O-ring)
| Mounting spacing | 225 mm |
|---|---|
| Overall height | 254 mm |
| Flange thickness | 🔒 |
| Seat height 1 | 🔒 |
| Seat height 2 | 43 mm |
| Inner bore | Ø103 mm |
| Body flange | 160 mm |
| Mid flange | 176.5 mm |
| Outer flange | 227 mm |
| Bolt circle diameter | Ø200 mm |
| Base length | 249 mm |
| Nozzle flange | 227 mm |
| Nozzle step 1 | 181 mm |
| Nozzle step 2 | 172 mm |
| Nozzle bore | Ø101.5 mm |
| Nozzle pipe | 108 mm |
| Nozzle pipe wall | 7 mm |
| Nozzle base | 180 mm |
| Nozzle height | 219 mm |
| Nozzle flange thk | 20 mm |
| Nozzle lip | 🔒 |
🔒 Dimensions disponibles sur demandeDCF-F2-Y-102S.B(standard O-ring)
| Mounting spacing | 225 mm |
|---|---|
| Overall height | 254 mm |
| Flange thickness | 27 mm |
| Seat height 1 | 35 mm |
| Seat height 2 | 43 mm |
| Inner bore | Ø103 mm |
| Body flange | 160 mm |
| Mid flange | 176.5 mm |
| Outer flange | 227 mm |
| Bolt circle diameter | Ø200 mm |
| Base length | 🔒 |
| Nozzle flange | 🔒 |
| Nozzle step 1 | 181 mm |
| Nozzle step 2 | 172 mm |
| Nozzle bore | Ø102 mm |
| Nozzle pipe | 108 mm |
| Nozzle pipe wall | 7 mm |
| Nozzle base | 180 mm |
| Nozzle height | 219 mm |
| Nozzle flange thk | 20 mm |
| Nozzle lip | 🔒 |

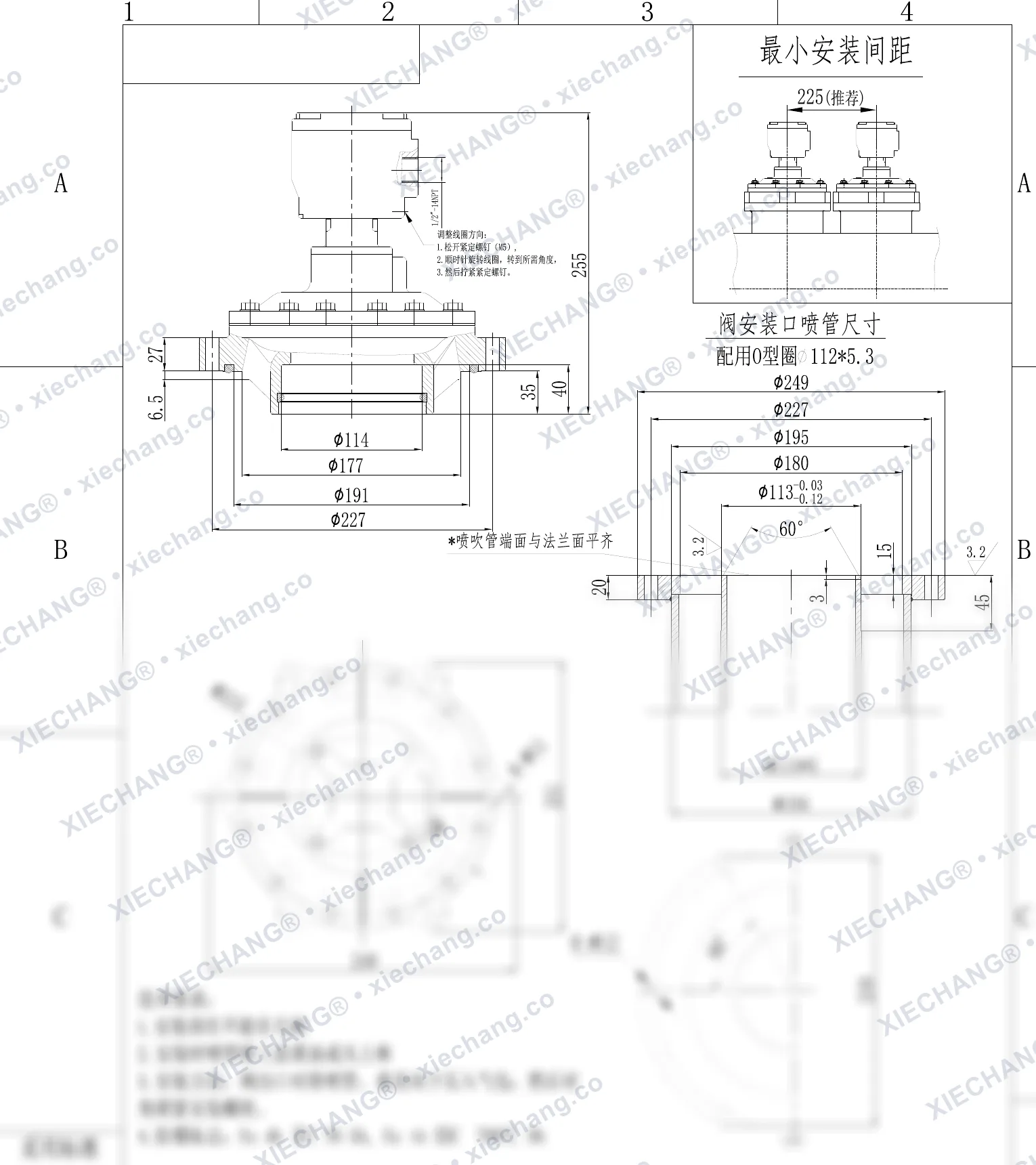

🔒 Dimensions disponibles sur demandeDCF-F2-Y-102S
| Mounting spacing | 225 mm |
|---|---|
| Overall height | 255 mm |
| Flange thickness | 27 mm |
| Lip | 6.5 mm |
| Seat height 1 | 35 mm |
| Seat height 2 | 40 mm |
| Inner bore | Ø114 mm |
| Body flange | 177 mm |
| Mid flange | 191 mm |
| Outer flange | 227 mm |
| Bolt circle diameter | Ø215 mm |
| Base length | 249 mm |
| Face width | 221 mm |
| Nozzle outer | 249 mm |
| Nozzle flange | 227 mm |
| Nozzle step 1 | 195 mm |
| Nozzle step 2 | 180 mm |
| Nozzle bore | 🔒 |
| Nozzle pipe | 🔒 |
| Nozzle pipe wall | 🔒 |
| Nozzle base | 194 mm |
| Nozzle height | 219 mm |
| Nozzle flange thk | 20 mm |
| Nozzle lip | 15 mm |
🔒 Dimensions disponibles sur demandeDCF-F2-Y-25
| Overall height | 174 mm |
|---|---|
| Mounting spacing | 130 mm |
| Seat height 1 | 40 mm |
| Seat height 2 | 33 mm |
| Lip | 13 mm |
| Outlet bore | Ø35 mm |
| Body diameter | Ø66 mm |
| Bolt circle diameter | Ø96 mm |
| Spud opening | 40 mm |
| Seat bore | Ø31 mm |
| Seat pipe | 🔒 |
| Seat pipe wall | 🔒 |
| Seat depth | 🔒 |
🔒 Dimensions disponibles sur demandeDCF-F2-Y-40S
| Overall height | 223 mm |
|---|---|
| Mounting spacing | 130 mm |
| Seat height 1 | 41 mm |
| Seat height 2 | 40 mm |
| Lip | 16 mm |
| Outlet bore | Ø48.5 mm |
| Body diameter | 🔒 |
| Bolt circle diameter | 🔒 |
| Face diameter | 🔒 |
| Spud opening | 71 mm |
| Seat bore | Ø44.7 mm |
| Seat pipe | 48 mm |
| Seat pipe wall | 5 mm |
| Seat depth | 25 mm |
🔒 Dimensions disponibles sur demandeDCF-F2-Y-50S
| Mounting spacing | 185 mm |
|---|---|
| Overall height | 225 mm |
| Flange thickness | 25 mm |
| Lip | 7 mm |
| Seat height 1 | 30 mm |
| Seat height 2 | 41 mm |
| Inner bore | Ø60.5 mm |
| Body flange | 122 mm |
| Mid flange | 130 mm |
| Outer flange | 180 mm |
| Bolt circle diameter | Ø160 mm |
| Base length | 202 mm |
| Nozzle outer | 202 mm |
| Nozzle flange | 180 mm |
| Nozzle step | 🔒 |
| Nozzle bore | 🔒 |
| Nozzle pipe | 🔒 |
| Nozzle pipe wall | 5 mm |
| Nozzle base | 127 mm |
| Nozzle height | 180 mm |
| Nozzle flange thk | 20 mm |
| Nozzle lip | 14 mm |
🔒 Dimensions disponibles sur demandeDCF-F2-Y-62S
| Mounting spacing | 🔒 |
|---|---|
| Overall height | 240 mm |
| Flange thickness | 🔒 |
| Lip | 🔒 |
| Seat height 1 | 35 mm |
| Seat height 2 | 44 mm |
| Inner bore | Ø75.5 mm |
| Body flange | 148 mm |
| Mid flange | 158 mm |
| Outer flange | 208 mm |
| Bolt circle diameter | Ø188 mm |
| Base length | 230 mm |
| Nozzle outer | 230 mm |
| Nozzle flange | 208 mm |
| Nozzle step 1 | 169.5 mm |
| Nozzle step 2 | 152 mm |
| Nozzle bore | Ø75 mm |
| Nozzle pipe | 76 mm |
| Nozzle pipe wall | 4 mm |
| Nozzle base | 168 mm |
| Nozzle height | 202 mm |
| Nozzle flange thk | 20 mm |
| Nozzle lip | 14 mm |
🔒 Dimensions disponibles sur demandeDCF-F2-Y-76S(special O-ring)
| Mounting spacing | 🔒 |
|---|---|
| Overall height | 🔒 |
| Flange thickness | 🔒 |
| Seat height 1 | 35 mm |
| Seat height 2 | 43 mm |
| Inner bore | Ø89.5 mm |
| Body flange | 160 mm |
| Mid flange | 174.6 mm |
| Outer flange | 227 mm |
| Bolt circle diameter | Ø200 mm |
| Base length | 249 mm |
| Nozzle outer | 249 mm |
| Nozzle flange | 227 mm |
| Nozzle step 1 | 181 mm |
| Nozzle step 2 | 164 mm |
| Nozzle bore | Ø88 mm |
| Nozzle pipe | 89 mm |
| Nozzle pipe wall | 4.5 mm |
| Nozzle base | 180 mm |
| Nozzle height | 219 mm |
| Nozzle flange thk | 20 mm |
| Nozzle lip | 11 mm |
🔒 Dimensions disponibles sur demandeDCF-F2-Y-76S(standard O-ring)
| Overall height | 254 mm |
|---|---|
| Inlet flange height | 27 mm |
| Neck height | 35 mm |
| Flange thickness | 43 mm |
| Neck diameter | Ø89.5 mm |
| Body diameter | 🔒 |
| Mid flange diameter | Ø174.6 mm |
| Flange diameter | Ø227 mm |
| Bolt circle diameter | Ø200 mm |
| Base width | 249 mm |
| Base height | 219 mm |
| Mounting spacing | 225 mm |
| Nozzle outer diameter | Ø249 mm |
| Nozzle flange diameter | Ø227 mm |
| Nozzle step 1 | 181 mm |
| Nozzle step 2 | 164 mm |
| Nozzle bore | Ø89 mm |
| Nozzle pipe outer diameter | Ø180 mm |
| Nozzle pipe wall | Φ89×4.5 |
| O ring | Φ87×5.6 |
| Bolt holes flange | 🔒 |
| Bolt holes base | 🔒 |

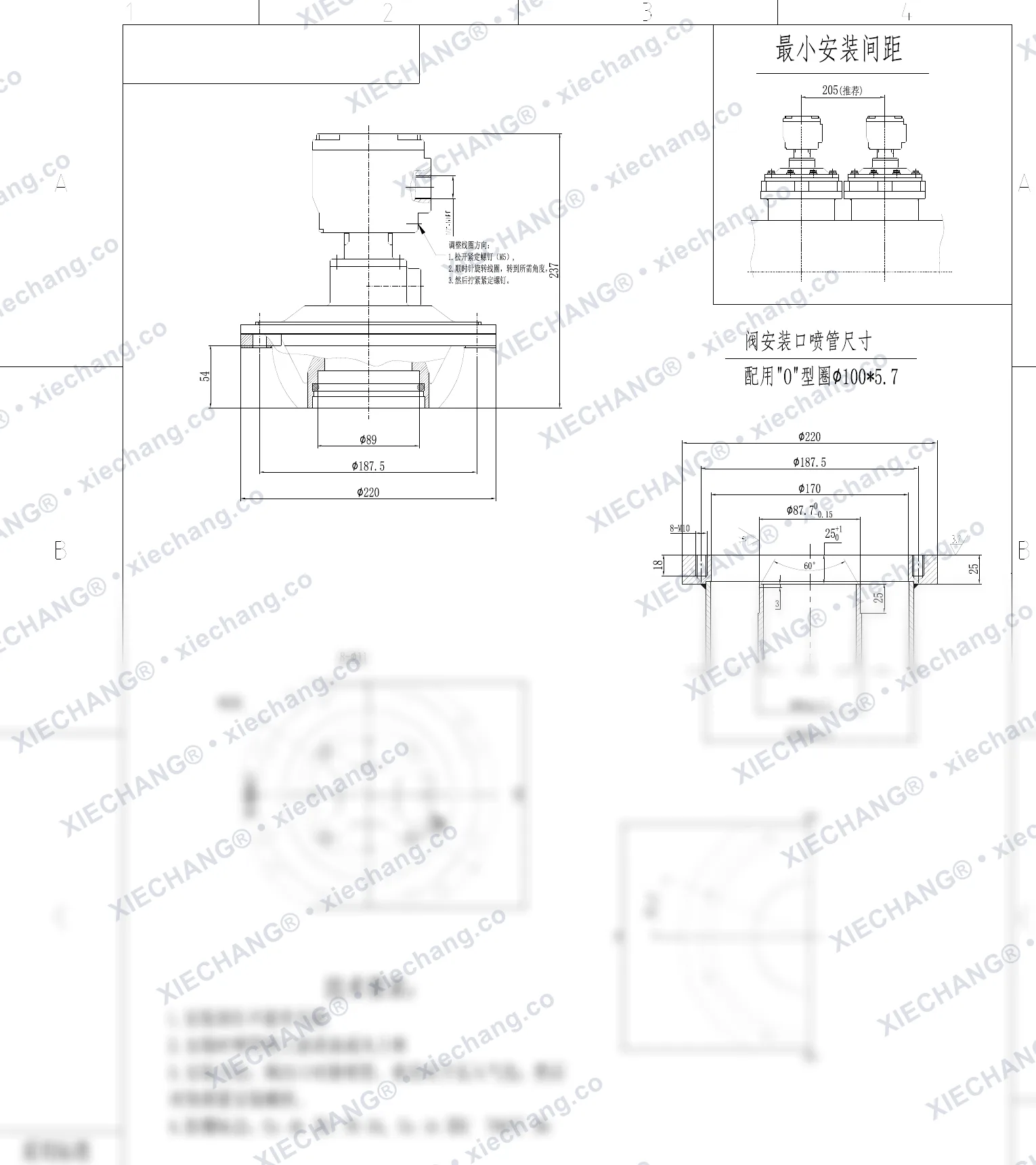

🔒 Dimensions disponibles sur demandeDCF-F2-YA-76S
| Neck diameter | Ø89 mm |
|---|---|
| Mid diameter | Ø187.5 mm |
| Flange diameter | Ø220 mm |
| Bolt circle diameter | Ø220 mm |
| Base height | 🔒 |
| Mounting spacing | 🔒 |
| Nozzle outer diameter | 🔒 |
| Nozzle step 1 | 187.5 mm |
| Nozzle step 2 | 170 mm |
| Nozzle seat | 87.7 mm |
| Nozzle pipe wall | Φ89×4.5 |
| Nozzle flange pipe | Φ180×4.5 |
| O ring | Φ100×5.7 |
| Bolt holes | 8-Φ11 |

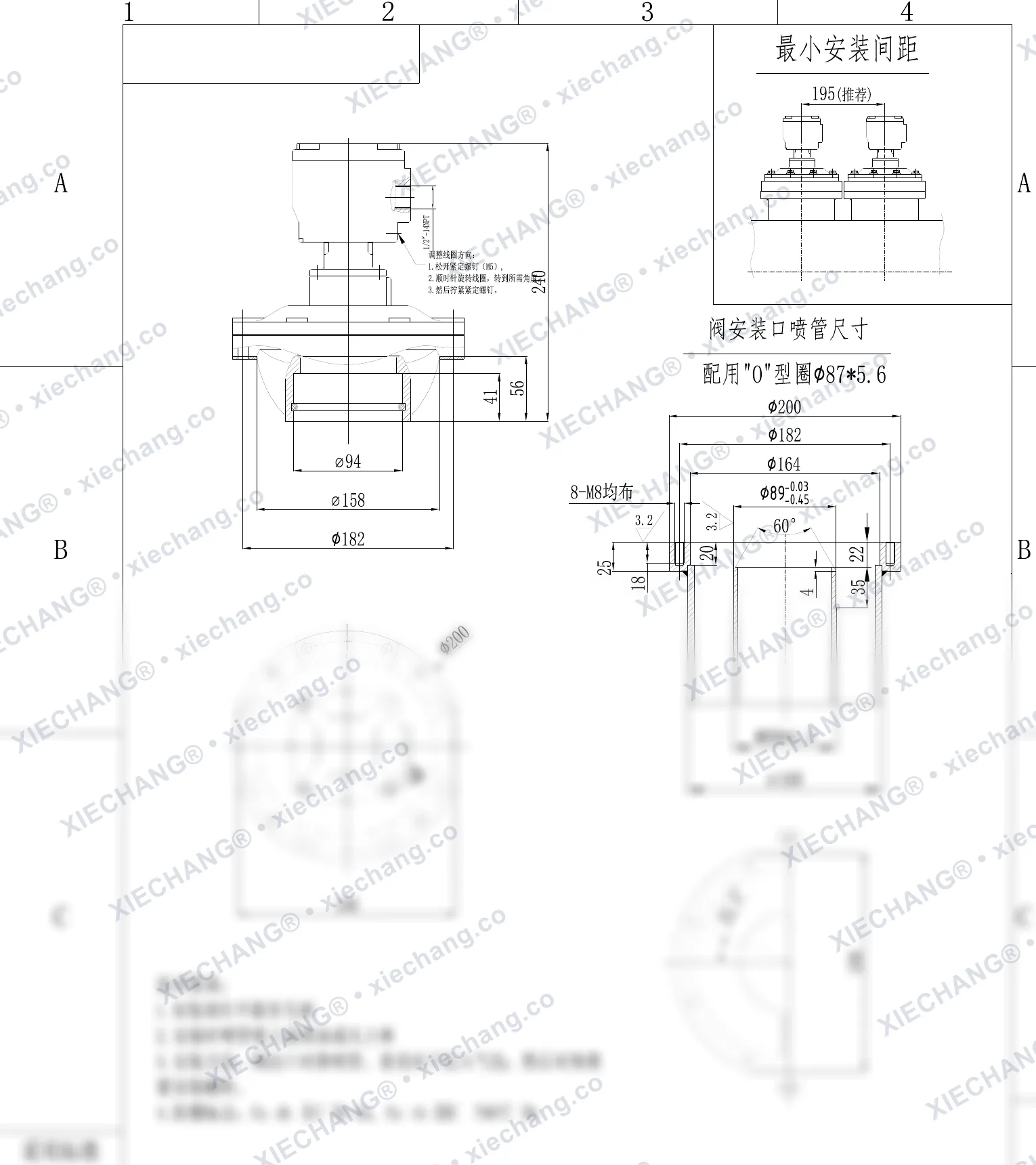

🔒 Dimensions disponibles sur demandeDCF-F2-YQ-76S(standard O-ring)
| Overall height | 240 mm |
|---|---|
| Inlet height | 41 mm |
| Flange thickness | 🔒 |
| Neck diameter | Ø94 mm |
| Body diameter | Ø158 mm |
| Flange diameter | Ø182 mm |
| Bolt circle diameter | Ø200 mm |
| Base width | 188 mm |
| Mounting spacing | 🔒 |
| Nozzle outer diameter | 🔒 |
| Nozzle step 1 | 182 mm |
| Nozzle step 2 | 164 mm |
| Nozzle bore | Ø89 mm |
| Nozzle pipe wall | Φ89×4.5 |
| Nozzle pipe outer diameter | Ø168 mm |
| Nozzle seat height | 35 mm |
| O ring | Φ87×5.6 |
| Bolt holes | 8-M8 |
🔒 Dimensions disponibles sur demandeDCF-F2-YQ-76S(special O-ring)
| Overall height | 240 mm |
|---|---|
| Inlet height | 41 mm |
| Flange thickness | 56 mm |
| Neck diameter | Ø94 mm |
| Body diameter | Ø158 mm |
| Flange diameter | Ø182 mm |
| Bolt circle diameter | Ø200 mm |
| Base width | 🔒 |
| Mounting spacing | 🔒 |
| Nozzle outer diameter | 🔒 |
| Nozzle step 1 | 182 mm |
| Nozzle step 2 | 164 mm |
| Nozzle seat | 88 mm |
| Nozzle pipe wall | Φ89×4.5 |
| Nozzle pipe outer diameter | Ø168 mm |
| Nozzle seat height | 35 mm |
| O ring | Φ87×6 |
| Bolt holes | 8-M8 |

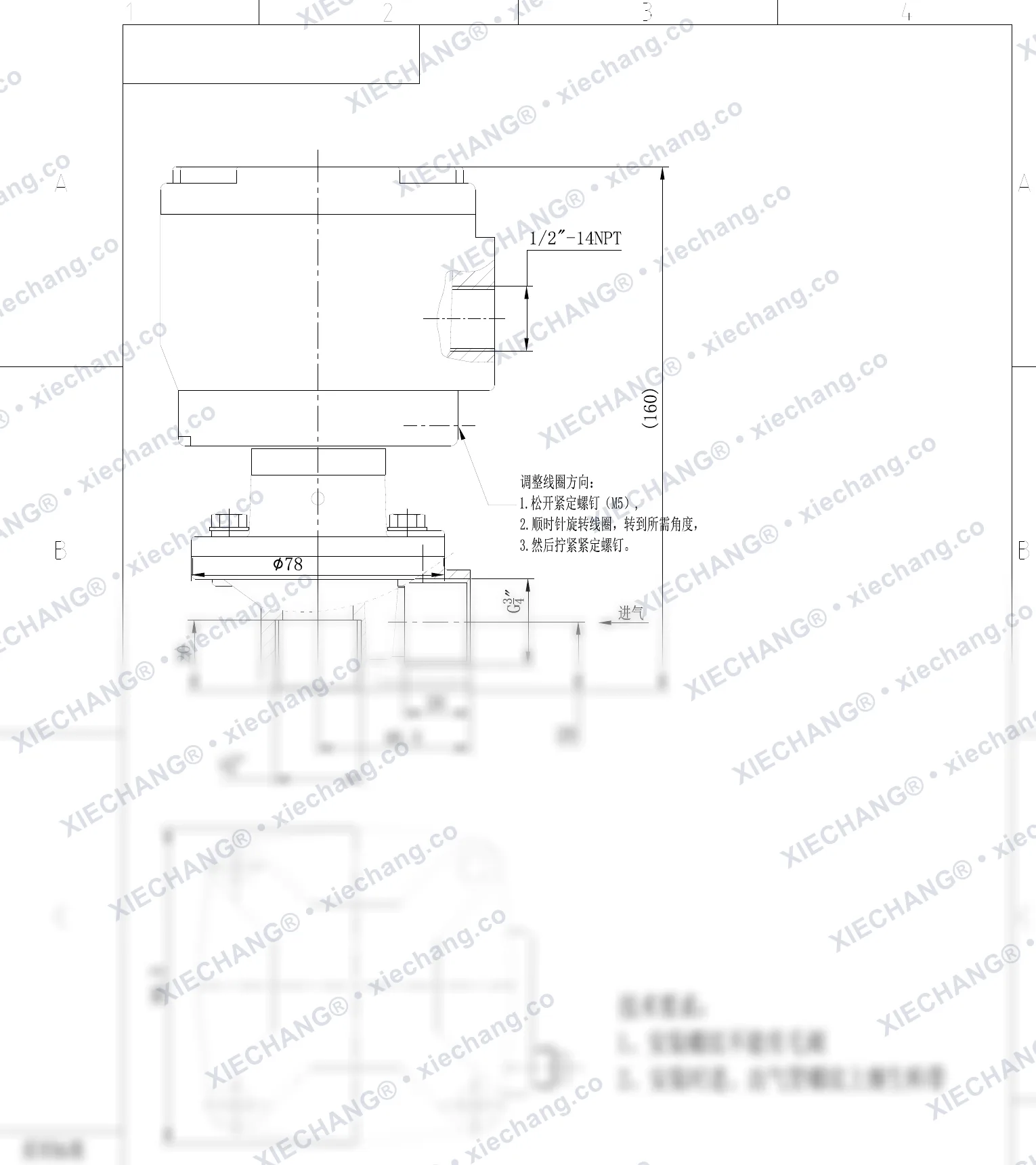

🔒 Dimensions disponibles sur demandeDCF-F2-Z-20
| Overall height | 160 mm |
|---|---|
| Diaphragm cover diameter | Ø80 mm |
| Inlet height | 20 mm |
| Inlet face height | 22 mm |
| Outlet height | 🔒 |
| Base width | 🔒 |
| Bolt spacing | 🔒 |
| Coil conduit | 1/2"-14NPT |

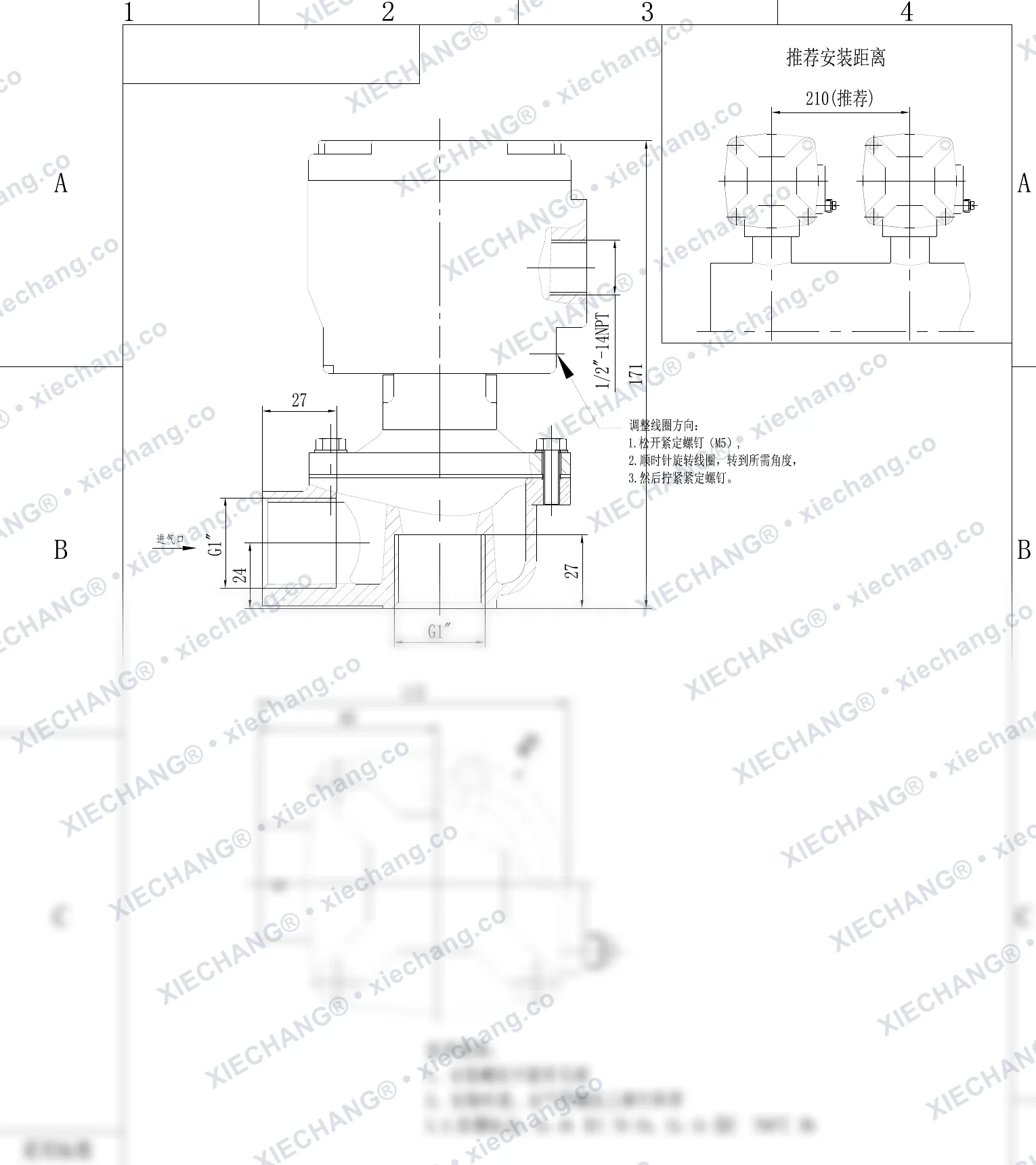

🔒 Dimensions disponibles sur demandeDCF-F2-Z-25
| Overall height | 171 mm |
|---|---|
| Inlet height | 24 mm |
| Inlet face height | 27 mm |
| Outlet height | 27 mm |
| Base length | 🔒 |
| Bolt spacing | 65 mm |
| Bolt hole diameter | 🔒 |
| Coil conduit | 🔒 |
🔒 Dimensions disponibles sur demandeDCF-F2-Z-40S
| Overall height | 230 mm |
|---|---|
| Inlet height | 🔒 |
| Inlet face height | 🔒 |
| Outlet height | 🔒 |
| Base length | 131 mm |
| Bolt spacing | 75 mm |
| Cover diameter | Ø112 mm |
| Coil conduit | 1/2"-14NPT |
🔒 Dimensions disponibles sur demandeDCF-F2-Z-50S
| Overall height | 241 mm |
|---|---|
| Inlet height | 🔒 |
| Inlet face height | 🔒 |
| Outlet height | 🔒 |
| Base length | 180 mm |
| Bolt spacing | 100 mm |
| Cover diameter | Ø160 mm |
| Coil conduit | 1/2"-14NPT |
🔒 Dimensions disponibles sur demandeDCF-F2-Z-62S
| Overall height | 264 mm |
|---|---|
| Inlet height | 49 mm |
| Inlet face height | 37 mm |
| Outlet height | 37 mm |
| Base length | 🔒 |
| Bolt spacing | 🔒 |
| Cover diameter | 🔒 |
| Coil conduit | 1/2"-14NPT |
🔒 Dimensions disponibles sur demandeDCF-F2-Z-76S
| Overall height | 🔒 |
|---|---|
| Inlet height | 🔒 |
| Inlet face height | 38 mm |
| Outlet height | 🔒 |
| Base length | 220 mm |
| Bolt spacing | 120 mm |
| Cover diameter | Ø200 mm |
| Coil conduit | 1/2"-14NPT |
🔒 Dimensions disponibles sur demandeDCF-F2-ZM-20
| Overall height | 198 mm |
|---|---|
| Inlet pipe outer diameter | Ø27 mm |
| Inlet pipe seat | 25 mm |
| Inlet pipe bore | Ø20 mm |
| Inlet pipe chamfer | 3×30° |
| Outlet pipe outer diameter | Ø27 mm |
| Port spacing | 26 mm |
| Outlet center height | 25 mm |
| Seat height | 38 mm |
| Body height | 58 mm |
| Outlet offset | 🔒 |
| Base length | 🔒 |
| Inlet projection | 80 mm |
| Mounting spacing | 120 mm |
| Coil conduit | 🔒 |
🔒 Dimensions disponibles sur demandeDCF-F2-ZM-25
| Overall height | 233 mm |
|---|---|
| Inlet pipe outer diameter | Ø34 mm |
| Inlet pipe seat | 32.5 mm |
| Inlet pipe bore | Ø30 mm |
| Inlet pipe chamfer | 3×30° |
| Outlet pipe outer diameter | Ø34 mm |
| Port spacing | 32 mm |
| Seat offset | 47 mm |
| Seat height | 38 mm |
| Body height | 53 mm |
| Outlet height | 83 mm |
| Base length | 139 mm |
| Inlet projection | 🔒 |
| Mounting spacing | 🔒 |
| Coil conduit | 🔒 |
🔒 Dimensions disponibles sur demandeDCF-F2-ZM-40S
| Overall height | 284 mm |
|---|---|
| Inlet pipe outer diameter | Ø48 mm |
| Inlet pipe seat | 45.5 mm |
| Inlet pipe bore | Ø30 mm |
| Inlet pipe chamfer | 3×30° |
| Outlet pipe outer diameter | Ø48 mm |
| Port spacing | 52 mm |
| Seat offset | 64 mm |
| Seat height | 42 mm |
| Body height | 55 mm |
| Outlet height | 92 mm |
| Base length | 170 mm |
| Inlet projection | 🔒 |
| Mounting spacing | 🔒 |
| Coil conduit | 🔒 |
🔒 Dimensions disponibles sur demandeDCF-F2-Z-20-C(304)
| Overall height | 160 mm |
|---|---|
| Diaphragm cover diameter | Ø78 mm |
| Inlet height | 20 mm |
| Inlet offset | 20 mm |
| Base length | 🔒 |
| Base width | 🔒 |
| Coil conduit | 🔒 |
Électrovanne à impulsions à raccord DCF-ZM
🔒 Dimensions disponibles sur demandeDCF-ZM-20
| Inlet tube outer diameter | 🔒 |
|---|---|
| Inlet tube bore | 🔒 |
| Port seat depth | 🔒 |
| Connector length | 38 mm |
| Port spacing | 80 mm |
| Overall length | 118 mm |
| Overall height | 162 mm |
| Port center height | 58 mm |
| Outlet height | 38 mm |
| Outlet pipe diameter | Ø27 mm |
🔒 Dimensions disponibles sur demandeDCF-ZM-25
| Inlet tube outer diameter | Ø34 mm |
|---|---|
| Inlet tube bore | Ø32 mm |
| Port seat depth | 30 mm |
| Connector length | 47 mm |
| Port spacing | 93 mm |
| Overall length | 🔒 |
| Overall height | 192 mm |
| Port center height | 83 mm |
| Outlet height | 🔒 |
| Outlet pipe diameter | 🔒 |
🔒 Dimensions disponibles sur demandeDCF-ZM-40S
| Inlet tube outer diameter | Ø48 mm |
|---|---|
| Inlet tube bore | Ø45.5 mm |
| Port seat depth | 30 mm |
| Connector length | 64 mm |
| Port spacing | 🔒 |
| Overall length | 🔒 |
| Overall height | 236 mm |
| Port center height | 🔒 |
| Outlet height | 55 mm |
| Outlet pipe diameter | Ø48 mm |
Électrovanne à impulsions antidéflagrante

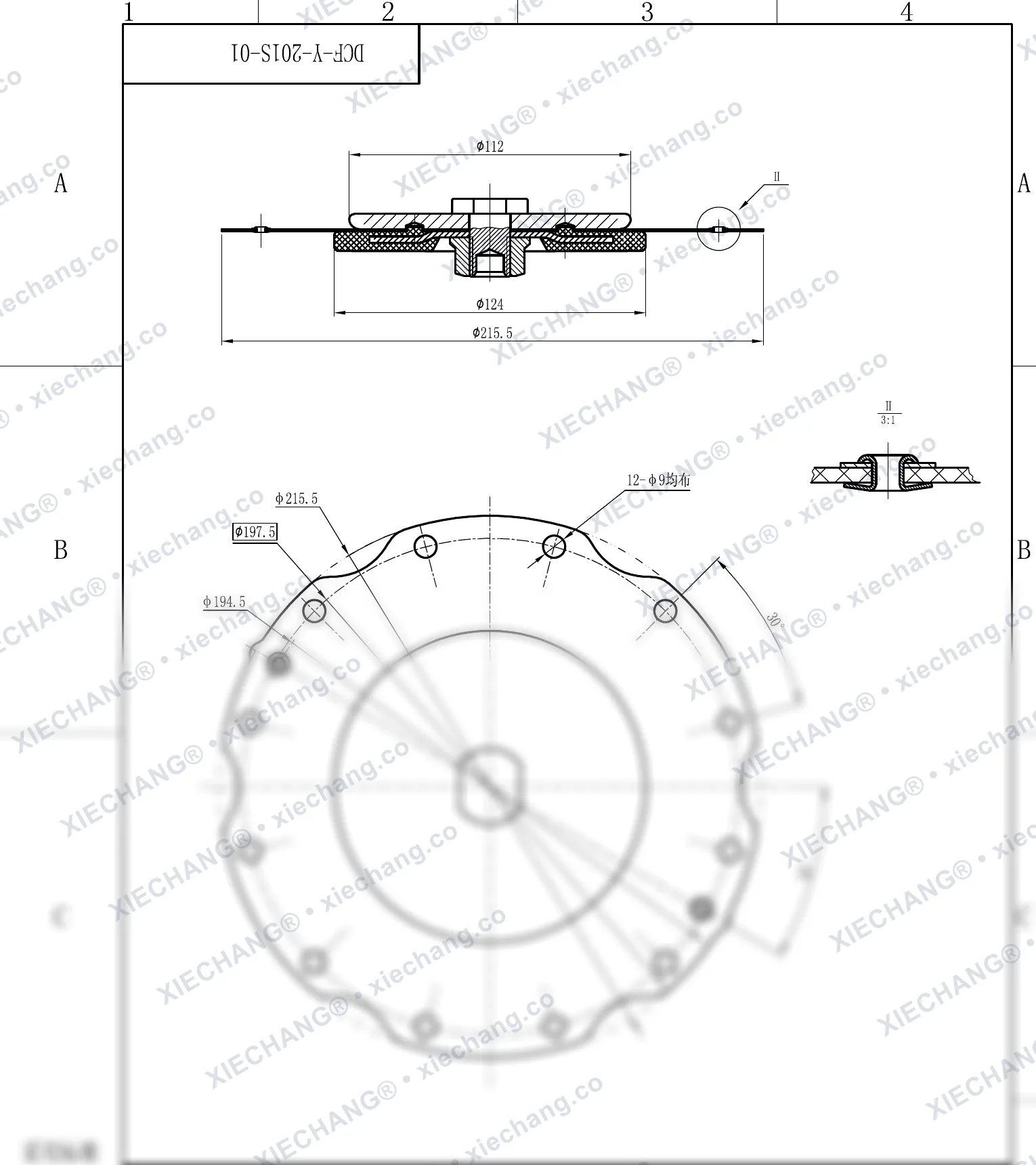

🔒 Dimensions disponibles sur demandeDCF-F-Y-102S
| Mounting spacing | 225 mm |
|---|---|
| Overall height | 211 mm |
| Flange diameter | Ø227 mm |
| Inner step 1 | 191 mm |
| Inner step 2 | 177 mm |
| Inner bore | Ø114 mm |
| Bolt circle diameter | Ø215 mm |
| Base length | 249 mm |
| Flange thickness | 27 mm |
| Seat height 1 | 35 mm |
| Seat height 2 | 40 mm |
| Lip | 6.5 mm |
| Nozzle outer | 249 mm |
| Nozzle flange | 227 mm |
| Nozzle step | 🔒 |
| Nozzle bore | 🔒 |
| Nozzle pipe | 114 mm |
| Nozzle pipe wall | 🔒 |
| Nozzle base | 194 mm |
| Nozzle height | 219 mm |
| Nozzle bolt holes | 12 |
| Nozzle flange thk | 20 mm |
| Nozzle lip | 15 mm |
🔒 Dimensions disponibles sur demandeDMY-F-II-80
| Mounting spacing | 212 mm |
|---|---|
| Overall height | 198 mm |
| Seat height 1 | 38 mm |
| Seat height 2 | 52 mm |
| Seal bore | Ø85.5 mm |
| Inner step | 88 mm |
| Body flange | 165 mm |
| Bolt circle diameter | Ø224 mm |
| Face width | 204 mm |
| Spud flange | 185 mm |
| Nozzle outer | 🔒 |
| Nozzle flange | 198 mm |
| Nozzle step | 🔒 |
| Nozzle bore | 🔒 |
| Nozzle pipe | 89 mm |
| Nozzle pipe wall | 5.5 mm |
| Nozzle flange thk | 20 mm |
| Nozzle lip | 17 mm |
| Nozzle depth | 40 mm |
🔒 Dimensions disponibles sur demandeDCF-F-YQ-76S(standard O-ring)
| Mounting spacing | 195 mm |
|---|---|
| Overall height | 🔒 |
| Seat height 1 | 🔒 |
| Seat height 2 | 🔒 |
| Inner bore | Ø94 mm |
| Body flange | 158 mm |
| Outer flange | 182 mm |
| Bolt circle diameter | Ø200 mm |
| Face width | 188 mm |
| Nozzle outer | 200 mm |
| Nozzle flange | 182 mm |
| Nozzle step | 164 mm |
| Nozzle bore | Ø89 mm |
| Nozzle pipe | 89 mm |
| Nozzle pipe wall | 4.5 mm |
| Nozzle base | 168 mm |
| Nozzle flange thk | 25 mm |
| Nozzle depth | 35 mm |
Électrovanne à impulsions en acier inoxydable
🔒 Dimensions disponibles sur demandeDCF-Z-20-C(304)
| Overall height | 🔒 |
|---|---|
| Flange diameter | Ø78 mm |
| Base length | 🔒 |
| Base width | 🔒 |
| Port spacing | 46.5 mm |
| Inlet height | 20 mm |
| Outlet length | 20 mm |
| Outlet offset | 20 mm |
| Mounting spacing | 140 mm |
🔒 Dimensions disponibles sur demandeDCF-Z-25-C(304)
| Overall height | 🔒 |
|---|---|
| Flange diameter | Ø94.5 mm |
| Base length | 🔒 |
| Base width | 🔒 |
| Inlet height | 20 mm |
| Outlet length | 20 mm |
| Outlet offset | 24.5 mm |
| Mounting spacing | 160 mm |
🔒 Dimensions disponibles sur demandeDCF-Z-40S-C
| Overall height | 177 mm |
|---|---|
| Flange diameter | Ø111 mm |
| Base length | 130 mm |
| Base width | 74.5 mm |
| Inlet height | 🔒 |
| Outlet length | 🔒 |
| Outlet offset | 30.5 mm |
| Mounting spacing | 🔒 |
🔒 Dimensions disponibles sur demandeDCF-Z-50S-C
| Overall height | 🔒 |
|---|---|
| Flange diameter | 🔒 |
| Base length | 182.5 mm |
| Base width | 🔒 |
| Inlet height | 42 mm |
| Outlet length | 30 mm |
| Outlet offset | 30 mm |
| Mounting spacing | 245 mm |
🔒 Dimensions disponibles sur demandeDCF-Z-62S-C
| Overall height | 224 mm |
|---|---|
| Flange diameter | Ø188 mm |
| Base length | 206.6 mm |
| Base width | 113.1 mm |
| Inlet height | 🔒 |
| Port center height | 🔒 |
| Outlet offset | 🔒 |
| Mounting spacing | 275 mm |
🔒 Dimensions disponibles sur demandeDCF-ZM-20-C
| Overall height | 🔒 |
|---|---|
| Inlet center height | 🔒 |
| Outlet length | 81 mm |
| Overall length | 120 mm |
| Port offset | 28 mm |
| Inlet pipe OD | 27 mm |
| Inlet pipe ID | 25 mm |
| Chamfer height | 20 mm |
| Mounting spacing | 🔒 |
🔒 Dimensions disponibles sur demandeDCF-ZM-25-C
| Overall height | 190 mm |
|---|---|
| Port offset | 33.5 mm |
| Outlet length | 39 mm |
| Inlet center height | 35 mm |
| Base length | 98.2 mm |
| Inlet pipe length | 89.5 mm |
| Overall length | 145.7 mm |
| Inlet pipe OD | 34 mm |
| Inlet pipe ID | 🔒 |
| Chamfer height | 🔒 |
| Mounting spacing | 🔒 |
🔒 Dimensions disponibles sur demandeDCF-ZM-40S-C
| Overall height | 244.5 mm |
|---|---|
| Port offset | 50 mm |
| Outlet length | 40 mm |
| Inlet center height | 40 mm |
| Base length | 🔒 |
| Inlet pipe length | 95.1 mm |
| Inlet pipe OD | 48 mm |
| Inlet pipe ID | 45.5 mm |
| Chamfer height | 🔒 |
| Mounting spacing | 🔒 |
🔒 Dimensions disponibles sur demandeDCF-F-Z-20-C(304)
| Overall height | 120 mm |
|---|---|
| Flange diameter | Ø78 mm |
| Base length | 85 mm |
| Base width | 46 mm |
| Port spacing | 46.5 mm |
| Inlet height | 20 mm |
| Outlet length | 🔒 |
| Outlet offset | 🔒 |
| Mounting spacing | 🔒 |
🔒 Dimensions disponibles sur demandeDCF-F-Z-25-C(304)
| Overall height | 132 mm |
|---|---|
| Flange diameter | Ø94.5 mm |
| Base length | 106 mm |
| Base width | 59 mm |
| Inlet height | 🔒 |
| Outlet length | 🔒 |
| Outlet offset | 24.5 mm |
| Mounting spacing | 🔒 |
🔒 Dimensions disponibles sur demandeDCF-F-Z-40S-C
| Overall height | 🔒 |
|---|---|
| Flange diameter | Ø111 mm |
| Base length | 🔒 |
| Base width | 🔒 |
| Inlet height | 25 mm |
| Outlet length | 25 mm |
| Outlet offset | 30.5 mm |
| Mounting spacing | 205 mm |
🔒 Dimensions disponibles sur demandeDCF-F-Z-50S-C
| Overall height | 🔒 |
|---|---|
| Flange diameter | 🔒 |
| Base length | 182.5 mm |
| Base width | 🔒 |
| Inlet height | 42 mm |
| Outlet length | 30 mm |
| Outlet offset | 30 mm |
| Mounting spacing | 245 mm |
🔒 Dimensions disponibles sur demandeDCF-F-Z-62S-C
| Overall height | 224 mm |
|---|---|
| Flange diameter | Ø188 mm |
| Base length | 206.6 mm |
| Base width | 113.1 mm |
| Inlet height | 51.2 mm |
| Port center height | 🔒 |
| Outlet offset | 🔒 |
| Mounting spacing | 🔒 |
🔒 Dimensions disponibles sur demandeDCF-F-ZM-20-C
| Overall height | 164 mm |
|---|---|
| Inlet center height | 58 mm |
| Outlet length | 81 mm |
| Overall length | 120 mm |
| Port offset | 🔒 |
| Inlet pipe OD | 27 mm |
| Inlet pipe ID | 🔒 |
| Chamfer height | 🔒 |
| Mounting spacing | 95 mm |
🔒 Dimensions disponibles sur demandeDCF-F-ZM-25-C
| Overall height | 190 mm |
|---|---|
| Port offset | 33.5 mm |
| Outlet length | 39 mm |
| Inlet center height | 35 mm |
| Base length | 98.2 mm |
| Inlet pipe length | 89.5 mm |
| Overall length | 145.7 mm |
| Inlet pipe OD | 34 mm |
| Inlet pipe ID | 🔒 |
| Chamfer height | 🔒 |
| Mounting spacing | 🔒 |
🔒 Dimensions disponibles sur demandeDCF-F-ZM-40S-C
| Overall height | 🔒 |
|---|---|
| Port offset | 🔒 |
| Outlet length | 40 mm |
| Inlet center height | 🔒 |
| Base length | 115.2 mm |
| Inlet pipe length | 95.1 mm |
| Inlet pipe OD | 48 mm |
| Inlet pipe ID | 45.5 mm |
| Chamfer height | 30 mm |
| Mounting spacing | 120 mm |
Électrovanne à impulsions filetée
Dimensions disponibles sur demandeWPS-CA/TD20
| Overall height | 🔒 |
|---|---|
| Inlet pipe-port outer diameter (top of detail) | 🔒 |
| Inlet pipe-port inner/seat diameter | 🔒 |
| Inlet pipe-port chamfer | 🔒 |
| Inlet pipe-port depth 1 | 🔒 |
| Inlet pipe-port wall/step | 🔒 |
| Inlet pipe-port surface finish | 🔒 |
| In port diameter | 🔒 |
| Out port diameter | 🔒 |
| Positioning steel rings inlet length | 🔒 |
| Inlet flange/socket length | 🔒 |
| Out port center height (lower) | 🔒 |
| Out port center height (upper) | 58 [2.28] |
| Outlet horizontal offset | 80 [3.15] |
| Overall width / inlet-to-outlet length | 118 [4.66] |
Plan authentique envoyé sur demande · réponse sous un jour ouvré
Dimensions disponibles sur demandeWPS-CA/TD25
| Overall height | 🔒 |
|---|---|
| Inlet pipe-port outer diameter (top of detail) | 🔒 |
| Inlet pipe-port inner/seat diameter | 🔒 |
| Inlet pipe-port chamfer | 🔒 |
| Inlet pipe-port depth 1 | 30 [1.18] |
| Inlet pipe-port wall/step | 2 [0.08] |
| Inlet pipe-port surface finish | 🔒 |
| In port diameter | phi34 [1.34] |
| Out port diameter | 🔒 |
| Positioning steel rings inlet length | 🔒 |
| Inlet flange/socket length | 🔒 |
| Out port center height (lower) | 🔒 |
| Out port center height (upper) | 🔒 |
| Outlet horizontal offset | 🔒 |
| Overall width / inlet-to-outlet length | 🔒 |
Plan authentique envoyé sur demande · réponse sous un jour ouvré
Dimensions disponibles sur demandeWPS-CA/TD40
| Overall height | 🔒 |
|---|---|
| Inlet pipe-port outer diameter (top of detail) | 🔒 |
| Inlet pipe-port inner/seat diameter | 🔒 |
| Inlet pipe-port chamfer | 🔒 |
| Inlet pipe-port depth 1 | 🔒 |
| Inlet pipe-port wall/step | 🔒 |
| Inlet pipe-port surface finish | 🔒 |
| In port diameter | 🔒 |
| Out port diameter | 🔒 |
| Positioning steel rings inlet length | 🔒 |
| Inlet flange/socket length | 64 [2.51] |
| Out port center height (lower) | 55 [2.17] |
| Out port center height (upper) | 🔒 |
| Outlet horizontal offset | 🔒 |
| Overall width / inlet-to-outlet length | 170 [6.69] |
Plan authentique envoyé sur demande · réponse sous un jour ouvré
Dimensions disponibles sur demandeWPS-F-CA/TG25
| Overall height | 136 [5.35] |
|---|---|
| Inlet port thread | 🔒 |
| Outlet port thread | 🔒 |
| Inlet neck length / in offset | 🔒 |
| Body seat to flange dimension (top-left) | 🔒 |
| Outlet neck length (right) | 27 [1.06] |
| Bolt-hole / mounting span (bottom view) | 🔒 |
| Diaphragm cover / flange outer diameter | phi96 [phi3.78] |
| Overall diameter across cover (bottom view width) | 🔒 |
Plan authentique envoyé sur demande · réponse sous un jour ouvré
Dimensions disponibles sur demandeWPS-F-CA/TG40
| Overall height | 🔒 |
|---|---|
| Inlet port thread | 🔒 |
| Outlet port thread | 🔒 |
| Inlet neck length / in offset | 🔒 |
| Body seat to flange dimension (top-left) | 🔒 |
| Outlet neck length (right) | 28 [1.1] |
| Bolt-hole / mounting span (bottom view) | 🔒 |
| Diaphragm cover / flange outer diameter | phi112 [phi4.4] |
| Overall diameter across cover (bottom view width) | 131 [5.2] |
Plan authentique envoyé sur demande · réponse sous un jour ouvré
Électrovanne à impulsions immergée
Dimensions disponibles sur demandeWPS-CA/EP102
| Overall length (valve) | 🔒 |
|---|---|
| Diaphragm cover flange OD | 🔒 |
| Inner bolt/ring diameter | 🔒 |
| Diaphragm bore | 🔒 |
| Cover thickness / lip | 🔒 |
| Solenoid/pilot boss offset | 27 [1.06] |
| Mounting flange face to body | 35 [1.36] |
| Base offset (2nd) | 40 [1.57] |
| Front view outer bolt-circle / envelope | 🔒 |
| Bolt circle diameter (bcd) | 🔒 |
| Mounting hole pattern | 🔒 |
| Exit-pipe outer flange OD | 🔒 |
| Exit-pipe flange OD (2nd) | 🔒 |
| Exit-pipe step ø | 🔒 |
| Exit-pipe bore ø | 🔒 |
| Exit-pipe key dimension (tol) | 🔒 |
| Exit-pipe inner clearance ø | 🔒 |
| Exit-pipe seat ø | 🔒 |
| Exit-pipe flange thickness | 🔒 |
| Chamfer | 🔒 |
| Surface finish | 🔒 |
Plan authentique envoyé sur demande · réponse sous un jour ouvré
Dimensions disponibles sur demandeWPS-CA/EP102.B
| Overall length (valve) | 🔒 |
|---|---|
| Diaphragm cover flange OD | 🔒 |
| Inner ring diameter | 🔒 |
| Diaphragm ring ø | 🔒 |
| Diaphragm bore | 🔒 |
| Cover thickness / lip | 🔒 |
| Solenoid/pilot boss offset | 🔒 |
| Mounting flange face to body | 🔒 |
| Base offset (2nd) | 🔒 |
| Front view outer envelope | 🔒 |
| Bolt circle diameter (bcd) | 🔒 |
| Mounting hole pattern | 🔒 |
| Exit-pipe flange OD | Ø227 [8.94] |
| Exit-pipe key dimension | 🔒 |
| Exit-pipe bore ø | 🔒 |
| Exit-pipe seat ø | 🔒 |
| Exit-pipe key ø (tol) | 🔒 |
| Exit-pipe flange thickness | 45 [1.77] |
| Chamfer | 3*30° |
| Surface finish | 🔒 |
Plan authentique envoyé sur demande · réponse sous un jour ouvré
Dimensions disponibles sur demandeWPS-CA/EP102.B
| Overall length (valve) | 🔒 |
|---|---|
| Diaphragm cover flange OD | 🔒 |
| Inner ring diameter | 🔒 |
| Diaphragm ring ø | 🔒 |
| Diaphragm bore | 🔒 |
| Cover thickness / lip | 🔒 |
| Solenoid/pilot boss offset | 🔒 |
| Mounting flange face to body | 🔒 |
| Base offset (2nd) | 🔒 |
| Front view outer envelope | 🔒 |
| Bolt circle diameter (bcd) | 🔒 |
| Mounting hole pattern | 🔒 |
| Exit-pipe flange OD | 🔒 |
| Exit-pipe key dimension | 🔒 |
| Exit-pipe bore ø | 🔒 |
| Exit-pipe seat ø | 🔒 |
| Exit-pipe key ø (tol) | 🔒 |
| Exit-pipe flange thickness | 45 [1.77] |
| Chamfer | 3*30° |
| Surface finish | 1.6 and 3.2 |
Plan authentique envoyé sur demande · réponse sous un jour ouvré
Dimensions disponibles sur demandeWPS-CA/EP115
| Overall length (valve) | 🔒 |
|---|---|
| Diaphragm cover flange OD | Ø239 [9.41] |
| Inner ring diameter | 🔒 |
| Diaphragm ring ø | 🔒 |
| Diaphragm bore | 🔒 |
| Cover/top boss offset | 🔒 |
| Mounting flange face to body | 🔒 |
| Base offset (2nd) | 🔒 |
| Front view envelope | 261 [10.276] |
| Front view outer flange | Ø239 [Ø9.41] |
| Mounting hole pattern | 🔒 |
| Exit-pipe outer flange OD | 🔒 |
| Exit-pipe flange OD (2nd) | 🔒 |
| Exit-pipe step ø | 🔒 |
| Exit-pipe seat ø | 🔒 |
| Exit-pipe key ø (tol) | 🔒 |
| Exit-pipe inner clearance ø | 🔒 |
| Exit-pipe flange thickness | 🔒 |
| Chamfer | 🔒 |
| Surface finish | 🔒 |
Plan authentique envoyé sur demande · réponse sous un jour ouvré
Dimensions disponibles sur demandeWPS-CA/EP50
| Overall length (valve) | 188 [7.4] |
|---|---|
| Mounting flange OD | Ø180 [7.09] |
| Ring ø | Ø130 [5.12] |
| Diaphragm/seat ø | 🔒 |
| Seat bore ø (tol) | 🔒 |
| Cover/top boss offset | 🔒 |
| Solenoid/pilot boss offset | 🔒 |
| Mounting flange face to body | 🔒 |
| Base offset (2nd) | 🔒 |
| Front view envelope | 🔒 |
| Bolt circle diameter (bcd) | 🔒 |
| Mounting hole pattern | 🔒 |
| Exit-pipe outer flange OD | 🔒 |
| Exit-pipe flange OD (2nd) | 🔒 |
| Exit-pipe step ø | 🔒 |
| Exit-pipe seat bore ø (tol) | 🔒 |
| Exit-pipe outer body ø | 🔒 |
| Exit-pipe inner bore ø | 🔒 |
| Exit-pipe flange thickness | 🔒 |
| Chamfer | 🔒 |
| Surface finish | 🔒 |
Plan authentique envoyé sur demande · réponse sous un jour ouvré
Dimensions disponibles sur demandeWPS-CA/EP62
| Overall length (valve) | 🔒 |
|---|---|
| Mounting flange OD | 🔒 |
| Ring ø | 🔒 |
| Diaphragm ø | 🔒 |
| Seat bore ø (tol) | 🔒 |
| Cover/top boss offset | 🔒 |
| Solenoid/pilot boss offset | 🔒 |
| Mounting flange face to body | 🔒 |
| Base offset (2nd) | 🔒 |
| Front view envelope | 🔒 |
| Bolt circle diameter (bcd) | 🔒 |
| Mounting hole pattern | 🔒 |
| Exit-pipe outer flange OD | 🔒 |
| Exit-pipe flange OD (2nd) | 🔒 |
| Exit-pipe step ø | Ø152 [5.98] |
| Exit-pipe body ø | 🔒 |
| Exit-pipe bore ø (tol) | 🔒 |
| Exit-pipe flange thickness | 🔒 |
| Chamfer | 3*30° |
| Surface finish | 3.2 |
Plan authentique envoyé sur demande · réponse sous un jour ouvré
Dimensions disponibles sur demandeWPS-CA/EP76
| Overall height (valve incl. solenoid) | 🔒 |
|---|---|
| Diaphragm cover flange OD | 🔒 |
| Ring ø | 🔒 |
| Inner ring ø | 🔒 |
| Seat/diaphragm bore ø | 🔒 |
| Cover/side boss offset | 🔒 |
| Mounting flange face to body | 🔒 |
| Base offset (2nd) | 🔒 |
| Top-view envelope | 🔒 |
| Bolt circle diameter (bcd) | 🔒 |
| Mounting hole pattern | 🔒 |
| Exit-pipe outer flange OD | Ø249 |
| Exit-pipe flange OD (2nd) | 🔒 |
| Exit-pipe step ø | 🔒 |
| Exit-pipe key bore ø (tol) | 🔒 |
| Exit-pipe seat ø | 🔒 |
| Exit-pipe bore ø | 🔒 |
| Exit-pipe flange thickness | 🔒 |
| Chamfer | 3*30° |
| Surface finish | 3.2 |
Plan authentique envoyé sur demande · réponse sous un jour ouvré
Dimensions disponibles sur demandeWPS-CA/EP76
| Overall height (valve incl. solenoid) | 🔒 |
|---|---|
| Diaphragm cover flange OD | 🔒 |
| Ring ø | 🔒 |
| Inner ring ø | 🔒 |
| Cover/side boss offset | 27 [1.06] |
| Mounting flange face to body | 35 [1.38] |
| Base offset (2nd) | 🔒 |
| Top-view envelope | 249 [9.8] |
| Bolt circle diameter (bcd) | 🔒 |
| Mounting hole pattern | 🔒 |
| Exit-pipe outer flange OD | 🔒 |
| Exit-pipe flange OD (2nd) | 🔒 |
| Exit-pipe step ø | 🔒 |
| Exit-pipe key bore ø (tol) | 🔒 |
| Exit-pipe seat ø | 🔒 |
| Exit-pipe bore ø | 🔒 |
| Exit-pipe flange thickness | 🔒 |
| Chamfer | 🔒 |
Plan authentique envoyé sur demande · réponse sous un jour ouvré
Dimensions disponibles sur demandeWPS-CA/EG25
| Overall length (valve) | 140 [5.51] |
|---|---|
| Inlet flange/hub OD | Ø59 [2.32] |
| Port bore ø | 🔒 |
| Thread | G1" |
| Top boss offset | 🔒 |
| Mounting flange face to body | 🔒 |
| Front-view body ø | 🔒 |
| Exit-pipe outer ø | 🔒 |
| Exit-pipe thread | 🔒 |
| Exit-pipe chamfer | 🔒 |
| Exit-pipe wall/step | 🔒 |
| Exit-pipe engagement length | 🔒 |
| Valve opening size (bore) | 🔒 |
| Valve opening slot radius | 🔒 |
Plan authentique envoyé sur demande · réponse sous un jour ouvré
Dimensions disponibles sur demandeWPS-CA/EG40
| Overall length (valve) | 🔒 |
|---|---|
| Inlet flange/hub OD | 🔒 |
| Port bore ø | 🔒 |
| Thread (inlet) | 🔒 |
| Top boss offset | 🔒 |
| Mounting flange face to body | 🔒 |
| Front-view body ø | 🔒 |
| Exit-pipe outer ø | 🔒 |
| Exit-pipe thread | 🔒 |
| Exit-pipe chamfer | 🔒 |
| Exit-pipe wall/step | 3 [0.12] |
| Exit-pipe engagement length | 25 [0.98] |
| Valve opening size (bore) | 🔒 |
| Valve opening slot radius | R4 [R0.16] |
Plan authentique envoyé sur demande · réponse sous un jour ouvré
Dimensions disponibles sur demandeWPS-CA/EP200
| Overall outer / mounting flange OD | Φ490 [Φ19.29] |
|---|---|
| Bolt-circle diameter (bcd) | 🔒 |
| Inner opening / port diameter | Φ435 [Φ17.13] |
| Diaphragm / spring seat diameter (bolt pattern *10) | 🔒 |
| Bolt holes | 🔒 |
| Flange thickness (top) | 20 [0.79] |
| Center / lower height (toleranced) | 🔒 |
Plan authentique envoyé sur demande · réponse sous un jour ouvré
Dimensions disponibles sur demandeWPS-CA/EP250
| Overall outer / mounting flange OD | Φ600 [Φ23.62] |
|---|---|
| Bolt-circle diameter (bcd) | 🔒 |
| Inner opening / port diameter | Φ512 [Φ20.16] |
| Diaphragm / spring seat diameter (bolt pattern *10) | 🔒 |
| Bolt holes | 🔒 |
| Flange thickness (top) | 20 [0.79] |
| Center / lower height (toleranced) | 🔒 |
Plan authentique envoyé sur demande · réponse sous un jour ouvré
Dimensions disponibles sur demandeWPS-CA/EP300
| Overall outer / mounting flange OD | Φ730 [Φ28.74] |
|---|---|
| Bolt-circle diameter (bcd) | 🔒 |
| Inner opening / port diameter | Φ616 [Φ24.25] |
| Diaphragm / spring seat diameter (bolt pattern *10) | 🔒 |
| Bolt holes | 🔒 |
| Flange thickness (top) | 20 [0.79] |
| Center / lower height | 🔒 |
Plan authentique envoyé sur demande · réponse sous un jour ouvré
Dimensions disponibles sur demandeWPS-CA/EP350
| Overall outer / mounting flange OD | Φ842 [Φ33.15] |
|---|---|
| Bolt-circle diameter (bcd) | 🔒 |
| Inner opening / port diameter | Φ716 [Φ28.19] |
| Diaphragm / spring seat diameter (bolt pattern *10) | 🔒 |
| Bolt holes | 🔒 |
| Flange thickness (top) | 20 [0.79] |
| Center / lower height (toleranced) | 🔒 |
Plan authentique envoyé sur demande · réponse sous un jour ouvré
Dimensions disponibles sur demandeWPS-CA/EP400
| Overall outer / mounting flange OD | Φ940 [Φ37.01] |
|---|---|
| Bolt-circle diameter (bcd) | 🔒 |
| Inner opening / port diameter | Φ806 [Φ31.73] |
| Diaphragm / spring seat diameter (bolt pattern *10) | 🔒 |
| Bolt holes | 🔒 |
| Flange thickness (top) | 🔒 |
| Center / lower height | 50 [1.97] |
Plan authentique envoyé sur demande · réponse sous un jour ouvré
Électrovanne à impulsions pneumatique déportée
🔒 Dimensions disponibles sur demandeSXC-DXK-M-12
| Width | 🔒 |
|---|---|
| Overall height | 🔒 |
| Box depth | 🔒 |
| Cover height | 101 mm |
| Mounting hole spacing | 249.5 |
| Port spacing | 36.5 mm |
| Port diameter | Ø10 mm |
| Waterproof hole inner diameter | Ø17.5 mm |

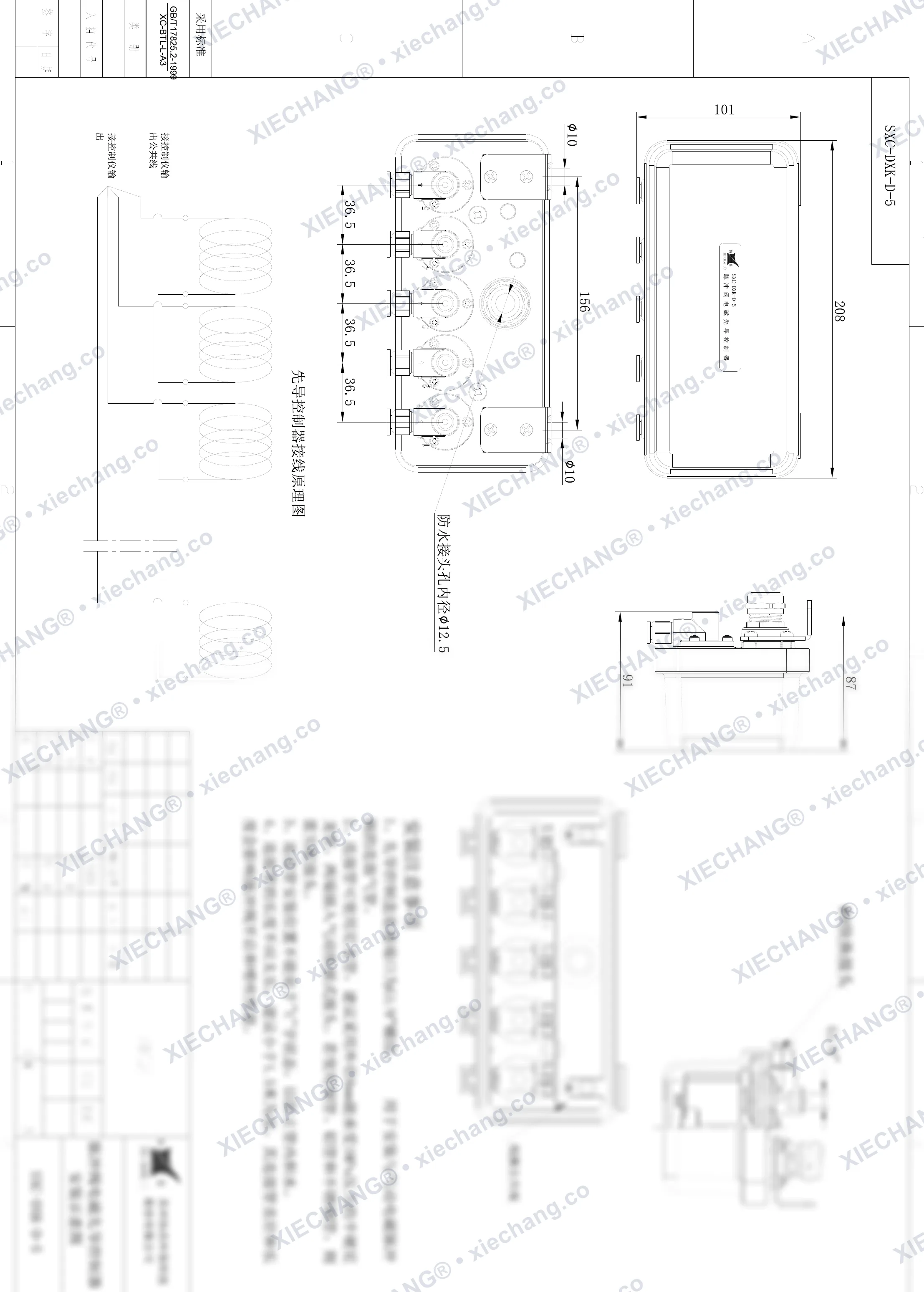

🔒 Dimensions disponibles sur demandeSXC-DXK-M-5
| Width | 101 mm |
|---|---|
| Overall height | 🔒 |
| Inner height | 🔒 |
| Box depth | 🔒 |
| Cover height | 91 mm |
| Port spacing | 36.5 mm |
| Port diameter | Ø10 mm |
| Waterproof hole inner diameter | Ø12.5 mm |

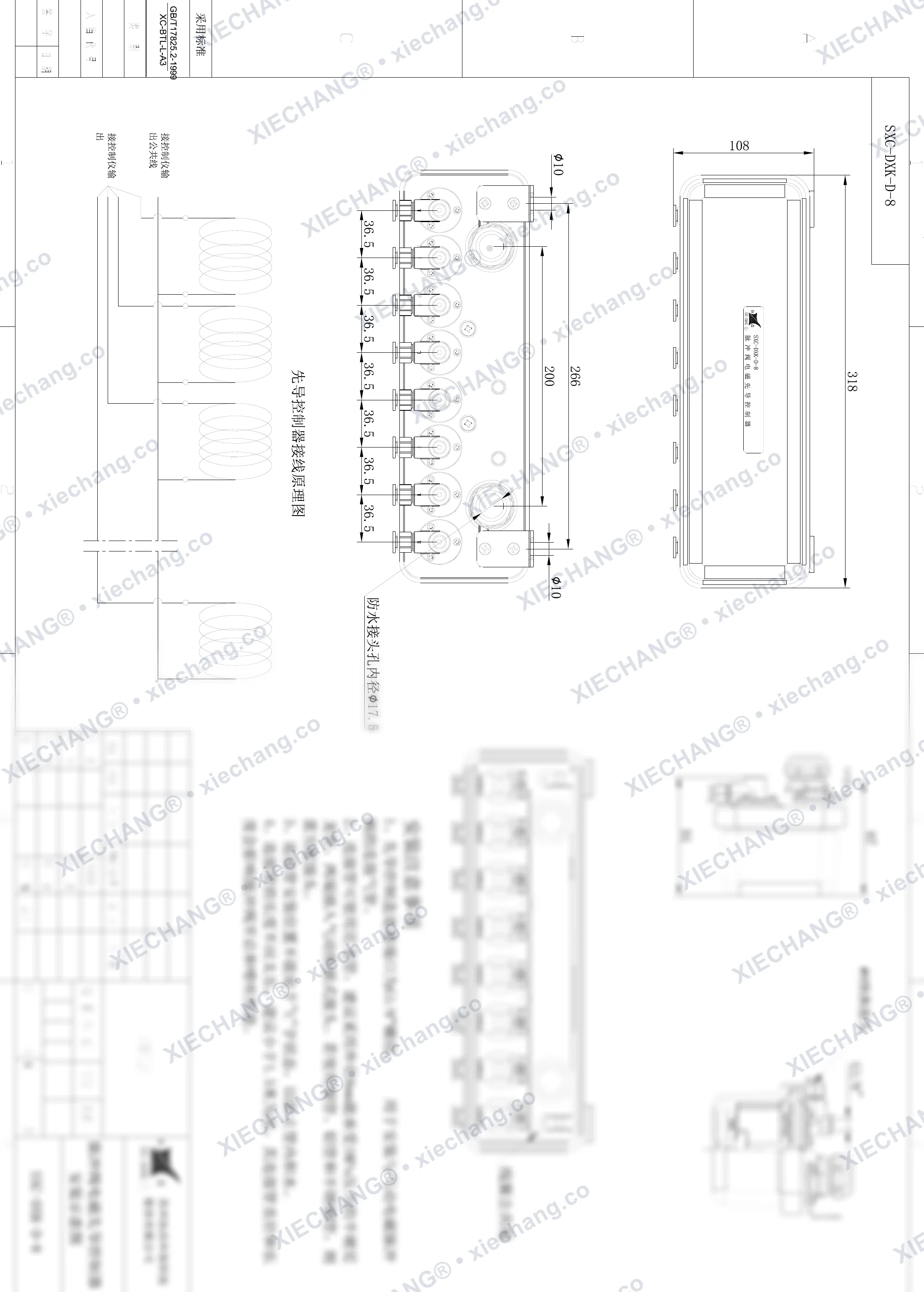

🔒 Dimensions disponibles sur demandeSXC-DXK-M-8
| Width | 108 mm |
|---|---|
| Overall height | 318 mm |
| Inner height | 🔒 |
| Mounting hole spacing | 🔒 |
| Box depth | 87 mm |
| Cover height | 91 mm |
| Port spacing | 36.5 mm |
| Port diameter | Ø10 mm |
| Waterproof hole inner diameter | 🔒 |
🔒 Dimensions disponibles sur demandeDCF-Y-102S.B-DXK(standard O-ring)
| Overall height | 161 mm |
|---|---|
| Flange thickness | 27 mm |
| Port center height | 35 mm |
| Inlet height | 43 mm |
| Inlet bore | Ø103 mm |
| Bolt circle diameter | Ø176.5 mm |
| Flange diameter | 🔒 |
| Inner flange diameter | Ø160 mm |
| Cover bolt circle | 🔒 |
| Bolt holes | 🔒 |
| Base width | 249 mm |
| Mounting spacing | 225 mm |
| Nozzle flange diameter | Ø249 mm |
| Nozzle bolt circle | Ø227 mm |
| Nozzle diameter 181 | Ø181 mm |
| Nozzle diameter 172 | Ø172 mm |
| Nozzle bore | Ø102 mm |
| Nozzle pipe | 108x7 |
| Nozzle base diameter | Ø180 mm |
| Nozzle height | 20 mm |
| Nozzle flange thickness | 13 mm |
| Nozzle chamfer | 45 mm |
| Nozzle bolt circle 219 | Ø219 mm |
| Nozzle bolt holes | 6-Φ12 |
| O ring | 101*5.3 |
🔒 Dimensions disponibles sur demandeDCF-Y-25
| Overall height | 140 mm |
|---|---|
| Thread length | 33 mm |
| Port center height | 40 mm |
| Inlet height | 13 mm |
| Inlet bore | 🔒 |
| Body diameter | Ø66 mm |
| Cover bolt circle | Ø96 mm |
| Air tank opening | 80 mm |
| Corner radius | 🔒 |
| Nozzle length | 🔒 |
| Nozzle bore | Ø31 mm |
| Nozzle outer diameter | Ø50 mm |
| Outlet diameter | Ø32.5 mm |
| Nozzle flange thickness | 20 mm |
| Mounting spacing | 105 mm |
🔒 Dimensions disponibles sur demandeDCF-Y-40S-DXK
| Overall height | 🔒 |
|---|---|
| Thread length | 41 mm |
| Port center height | 🔒 |
| Inlet height | 🔒 |
| Inlet bore | Ø48.5 mm |
| Body diameter | Ø73 mm |
| Flange diameter | Ø102 mm |
| Cover bolt circle | Ø112 mm |
| Air tank opening | 74 mm |
| Corner radius | 4-R4 |
| Nozzle length | 240 mm |
| Nozzle bore | Ø44.7 mm |
| Nozzle outer diameter | Ø62 mm |
| Outlet diameter | Ø47 mm |
| Nozzle flange thickness | 25 mm |
| Mounting spacing | 120 mm |
🔒 Dimensions disponibles sur demandeDCF-Y-50S-DXK
| Overall height | 143 mm |
|---|---|
| Flange thickness | 25 mm |
| Port center height | 30 mm |
| Inlet height | 41 mm |
| Flange step | 7.25 mm |
| Inlet bore | 🔒 |
| Bolt circle diameter | 🔒 |
| Inner flange diameter | 🔒 |
| Flange diameter | Ø180 mm |
| Cover bolt circle | Ø160 mm |
| Bolt holes | 6-Φ11 |
| Base width | 202 mm |
| Mounting spacing | 185 mm |
| Nozzle flange diameter | Ø202 mm |
| Nozzle base diameter | Ø180 mm |
| Nozzle diameter 124 | Ø124 mm |
| Nozzle bore | Ø60 mm |
| Nozzle pipe | 63.5*5 |
| Nozzle diameter 127 | Ø127 mm |
| Nozzle height | 20 mm |
| Nozzle flange thickness | 14 mm |
| Nozzle chamfer | 45 mm |
| Nozzle bolt circle 180 | Ø180 mm |
| Nozzle bolt holes | 6-Φ12 |
| O ring | 58*5.6 |
🔒 Dimensions disponibles sur demandeDCF-Y-76S-DXK(standard O-ring)
| Overall height | 155 mm |
|---|---|
| Flange thickness | 27 mm |
| Port center height | 35 mm |
| Inlet height | 43 mm |
| Inlet bore | Ø89.5 mm |
| Bolt circle diameter | Ø174.6 mm |
| Inner flange diameter | Ø160 mm |
| Flange diameter | Ø227 mm |
| Cover bolt circle | Ø200 mm |
| Bolt holes | 6-Φ11 |
| Base width | 🔒 |
| Mounting spacing | 🔒 |
| Nozzle flange diameter | 🔒 |
| Nozzle bolt circle | Ø227 mm |
| Nozzle diameter 181 | Ø181 mm |
| Nozzle diameter 164 | Ø164 mm |
| Nozzle bore | Ø89 mm |
| Nozzle pipe | 89x4.5 |
| Nozzle base diameter | Ø180 mm |
| Nozzle height | 20 mm |
| Nozzle flange thickness | 11 mm |
| Nozzle chamfer | 45 mm |
| Nozzle bolt circle 219 | Ø219 mm |
| Nozzle bolt holes | 6-Φ12 |
| O ring | 87*5.6 |
🔒 Dimensions disponibles sur demandeDCF-ZM-25-DXK
| Inlet port outer diameter | 🔒 |
|---|---|
| Inlet port bore | 🔒 |
| Inlet thread length | 30 mm |
| Cover height | 66 mm |
| Outlet center height | 83 mm |
| Outlet offset | 53 mm |
| Inlet length | 47 mm |
| Body length | 93 mm |
| Overall length | 139 mm |
| Outlet diameter | Ø34 mm |
| Mounting spacing | 🔒 |
🔒 Dimensions disponibles sur demandeDCF-ZM-40S-DXK
| Inlet port outer diameter | Ø48 mm |
|---|---|
| Inlet port bore | Ø45.5 mm |
| Inlet thread length | 30 mm |
| Overall height | 195 mm |
| Outlet center height | 92 mm |
| Outlet offset | 55 mm |
| Inlet length | 52 mm |
| Inlet length 2 | 64 mm |
| Outlet height | 42 mm |
| Body length | 116 mm |
| Overall length | 🔒 |
| Outlet diameter | 🔒 |
| Mounting spacing | 🔒 |
🔒 Dimensions disponibles sur demandeDCF-Z-20-DXK
| Inlet thread length | 🔒 |
|---|---|
| Overall height | 🔒 |
| Outlet center height | 🔒 |
| Inlet height | 20 mm |
| Flange width | 88 mm |
| Bolt spacing | 48 mm |
| Flange diameter | Ø90 mm |
| Mounting spacing | 155 mm |
🔒 Dimensions disponibles sur demandeDCF-Z-25-DXK
| Inlet thread length | 27 mm |
|---|---|
| Overall height | 95 mm |
| Outlet center height | 27 mm |
| Inlet height | 24 mm |
| Flange width | 113 mm |
| Bolt spacing | 🔒 |
| Flange diameter | 🔒 |
| Mounting spacing | 🔒 |
🔒 Dimensions disponibles sur demandeDCF-Z-40S-DXK
| Mounting spacing | 205 mm |
|---|---|
| Top offset | 28 mm |
| Overall height | 141 mm |
| Inlet height | 34 mm |
| Outlet height | 🔒 |
| Base length | 🔒 |
| Bolt spacing | 75 mm |
| Flange diameter | 🔒 |
🔒 Dimensions disponibles sur demandeDCF-Z-50S-DXK
| Mounting spacing | 245 mm |
|---|---|
| Top offset | 36 mm |
| Overall height | 167 mm |
| Inlet height | 43 mm |
| Outlet height | 🔒 |
| Base length | 🔒 |
| Bolt spacing | 100 mm |
| Flange diameter | 🔒 |
🔒 Dimensions disponibles sur demandeDCF-Z-62S-DXK
| Mounting spacing | 275 mm |
|---|---|
| Top offset | 37 mm |
| Overall height | 180 mm |
| Inlet height | 49 mm |
| Outlet height | 🔒 |
| Base length | 🔒 |
| Bolt spacing | 🔒 |
| Flange diameter | Ø180 mm |
Électrovanne à impulsions pour filtre à manches
Dimensions disponibles sur demandeWPS-CA/TG25
| Mounting pitch (top view, horizontal) | 🔒 |
|---|---|
| Flange / body outer diameter ø | 🔒 |
| Overall base width (top view) | 🔒 |
| Inlet flange offset (front view) | 🔒 |
| Outlet flange / base pitch (front view, right) | 27 [1.06] |
| Inlet port center height | 24 [0.94] |
| Overall height | 136 [5.35] |
Plan authentique envoyé sur demande · réponse sous un jour ouvré
Dimensions disponibles sur demandeWPS-CA/TG40
| Mounting pitch (top view, horizontal) | 🔒 |
|---|---|
| Flange / body outer diameter ø | 🔒 |
| Overall base width (top view) | 🔒 |
| Inlet flange offset (front view) | 🔒 |
| Outlet flange / base pitch (front view, right) | 28 [1.1] |
| Inlet port center height | 34 [1.3] |
| Overall height | 180 [7.1] |
Plan authentique envoyé sur demande · réponse sous un jour ouvré
Dimensions disponibles sur demandeWPS-CA/TG50
| Mounting pitch (top view, horizontal) | 🔒 |
|---|---|
| Flange / body outer diameter ø | 160 [6.3] |
| Overall base width (top view) | 180 [7.09] |
| Inlet flange offset (front view) | 36 [1.42] |
| Outlet flange / base pitch (front view, right) | 🔒 |
| Inlet port center height | 🔒 |
| Overall height | 🔒 |
Plan authentique envoyé sur demande · réponse sous un jour ouvré
Dimensions disponibles sur demandeWPS-CA/TG62
| Mounting pitch (top view, horizontal) | 🔒 |
|---|---|
| Flange / body outer diameter ø | 🔒 |
| Overall base width (top view) | 🔒 |
| Inlet flange offset (front view) | 🔒 |
| Outlet flange / base pitch (front view, right) | 37 [1.46] |
| Inlet port center height | 49 [1.93] |
| Overall height | 226 [8.9] |
Plan authentique envoyé sur demande · réponse sous un jour ouvré
Dimensions disponibles sur demandeWPS-CA/TG76
| Mounting pitch (top view, horizontal) | 🔒 |
|---|---|
| Flange / body outer diameter ø | 🔒 |
| Overall base width (top view) | 🔒 |
| Outlet flange offset (front view, left of pair) | 🔒 |
| Outlet flange / base pitch (front view, right) | 45 [1.77] |
| Inlet port center height | 59 [2.32] |
| Overall height | 250 [9.84] |
Plan authentique envoyé sur demande · réponse sous un jour ouvré
Instrument de contrôle à impulsions SXC-C5A1-8-L

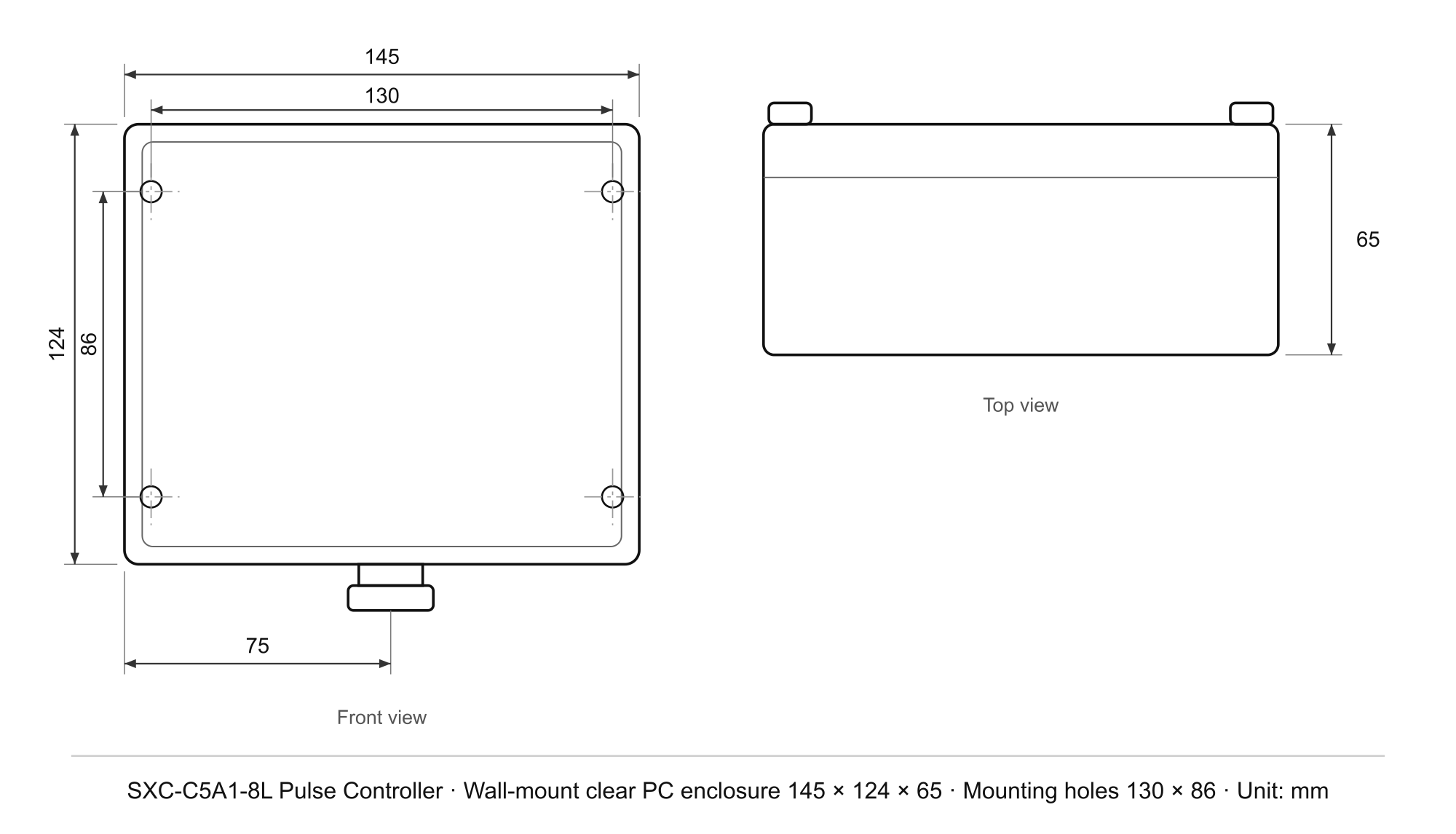

🔍 Cliquer pour agrandirSXC-C5A1-8L
| Overall width | 145 mm |
|---|---|
| Overall height | 124 mm |
| Depth | 65 mm |
| Mounting hole spacing (W) | 130 mm |
| Mounting hole spacing (H) | 86 mm |
| Cable entry offset from left | 75 mm |
Kit de réparation de membrane pour électrovanne à impulsions DN76
Dimensions disponibles sur demandeWPS-CA/TG20
| Outer diameter | Ø80 |
|---|---|
| Bolt hole circle diameter | 🔒 |
| Bolt holes | 🔒 |
| Bolt hole angular spacing | 🔒 |
| Vertical ref dimension | 33 |
| Center hub outer diameter_section bb | Ø34 |
| Center hub inner diameter_section bb | 🔒 |
| Membrane thickness | 🔒 |
| Detail scale | 🔒 |
Plan authentique envoyé sur demande · réponse sous un jour ouvré
Dimensions disponibles sur demandeWPS-CA/TG25
| Outer diameter | Ø82 [Ø3.23] |
|---|---|
| Bolt hole circle diameter | 🔒 |
| Bolt holes | 🔒 |
| Bolt hole angular spacing | 🔒 |
| Overall dimension | 106 [4.17] |
| Mid dimension | 40 [1.57] |
| Tab dimension | 🔒 |
| Center hub outer diameter_section | 🔒 |
| Center hub inner diameter_section | 🔒 |
| Membrane thickness | 🔒 |
| Detail scale | 🔒 |
Plan authentique envoyé sur demande · réponse sous un jour ouvré
Dimensions disponibles sur demandeWPS-CA/TG40
| Outer diameter | Ø112 [Ø4.41] |
|---|---|
| Bolt hole circle diameter | 🔒 |
| Bolt holes | 🔒 |
| Bolt hole angular spacing | 🔒 |
| Overall dimension | 🔒 |
| Mid dimension | 🔒 |
| Center hub outer diameter_section | 🔒 |
| Center hub inner diameter_section | 🔒 |
| Membrane thickness | δ=1.27 [0.047] |
| Detail scale | Detail II = 5:1 |
Plan authentique envoyé sur demande · réponse sous un jour ouvré
Dimensions disponibles sur demandeWPS-CA/EP50
| Outer diameter | Ø160.0 |
|---|---|
| Bolt hole circle diameter | 🔒 |
| Bolt holes | 🔒 |
| Bolt hole angular spacing | 🔒 |
| Vertical ref dimension | 🔒 |
| Center hub outer diameter_section | 🔒 |
| Center hub inner diameter_section | Ø75.0 |
| Membrane thickness | δ=1.27 [0.047] |
| Detail scale | 🔒 |
Plan authentique envoyé sur demande · réponse sous un jour ouvré
Dimensions disponibles sur demandeWPS-CA/EP62
| Outer diameter | Ø189 |
|---|---|
| Bolt hole circle diameter | 🔒 |
| Bolt holes | 🔒 |
| Vertical ref dimension | 81 |
| Center hub outer diameter_section | 🔒 |
| Center hub inner diameter_section | 🔒 |
| Membrane thickness | δ=1.27 [0.047] |
| Detail scale | 🔒 |
Plan authentique envoyé sur demande · réponse sous un jour ouvré
Dimensions disponibles sur demandeWPS-CA/EP76
| Outer diameter | Ø200 |
|---|---|
| Bolt hole circle diameter | 🔒 |
| Inner bead circle diameter | 🔒 |
| Bolt holes | 🔒 |
| Center hub outer diameter_section | Ø105 |
| Center hub inner diameter_section | Ø101.0 |
| Membrane thickness | 🔒 |
| Detail scale | 🔒 |
Plan authentique envoyé sur demande · réponse sous un jour ouvré
Dimensions disponibles sur demandeWPS-CA/EP102B
| Outer diameter | Ø202 |
|---|---|
| Bolt hole circle diameter | 🔒 |
| Bolt holes | 🔒 |
| Bolt hole angular spacing | 🔒 |
| Corner radius | R5 |
| Flange plate diameter_section | Ø202 |
| Center hub outer diameter_section | 🔒 |
| Center hub inner diameter_section | 🔒 |
| Membrane thickness | 🔒 |
| Detail scale | 🔒 |
Plan authentique envoyé sur demande · réponse sous un jour ouvré
Dimensions disponibles sur demandeWPS-CA/EP102
| Outer diameter_scalloped | 🔒 |
|---|---|
| Bolt hole circle diameter | 🔒 |
| Inner bead circle diameter | 🔒 |
| Bolt holes | 🔒 |
| Bolt hole angular spacing | 🔒 |
| Center hub outer diameter_section | Ø124 |
| Center hub inner diameter_section | 🔒 |
| Membrane thickness | δ=1.27 [0.047] |
| Detail scale | Detail II = 3:1 |
Plan authentique envoyé sur demande · réponse sous un jour ouvré
Dimensions disponibles sur demandeWPS-CA/EP115
| Outer diameter_scalloped | Ø241 |
|---|---|
| Bolt hole circle diameter | 🔒 |
| Scallop radius | R111 |
| Overall dimension | 232 |
| Bolt holes | 🔒 |
| Bolt hole angular spacing | 🔒 |
| Center hub outer diameter_section | 🔒 |
| Center hub inner diameter_section | 🔒 |
| Membrane thickness | 🔒 |
| Detail scale | 🔒 |
Plan authentique envoyé sur demande · réponse sous un jour ouvré
Dimensions disponibles sur demandeWPS-TZ-XMP
| Outer diameter | Ø66 |
|---|---|
| Bolt hole circle diameter | 🔒 |
| Bolt holes | 🔒 |
| Bead radius | R24 |
| Center hub diameter_section | 🔒 |
| Membrane thickness | 🔒 |
| Detail scale | Detail II = 3:1 |
Plan authentique envoyé sur demande · réponse sous un jour ouvré
Dimensions disponibles sur demandeWPS-CA/EP200
| Outer diameter | φ505 [φ19.88] |
|---|---|
| Bolt hole circle diameter | 🔒 |
| Number and size of bolt holes | 🔒 |
| Inner circle diameter | 🔒 |
| Backing plate diameter (side view) | φ236 [φ9.29] |
| Center hub / small plate diameter (side view) | φ127 [φ5.00] |
| Center hole / small hole | 🔒 |
| Thickness (δ) | 🔒 |
Plan authentique envoyé sur demande · réponse sous un jour ouvré
Dimensions disponibles sur demandeWPS-CA/EP250/I
| Outer diameter | 🔒 |
|---|---|
| Bolt hole circle diameter | 🔒 |
| Number and size of bolt holes | 🔒 |
| Inner circle diameter | 🔒 |
| Number and size of inner holes | 🔒 |
| Backing plate diameter (side view) | 🔒 |
| Hub plate diameter (side view) | φ98 [φ3.86] |
| Center hub diameter (side view) | φ73 [φ2.87] |
| Thickness (δ) | 3.2 [0.126] |
Plan authentique envoyé sur demande · réponse sous un jour ouvré
Dimensions disponibles sur demandeWPS-CA/EP250/II
| Outer diameter | 🔒 |
|---|---|
| Inner circle diameter | 🔒 |
| Number and size of bolt holes | 🔒 |
| Small hole offset from center (linear) | 🔒 |
| Backing plate / molded plate diameter (side view) | φ80 [φ3.15] |
| Center hub diameter (side view) | φ58 [φ1.48] |
| Thickness (δ) | 1.8 [0.07] |
Plan authentique envoyé sur demande · réponse sous un jour ouvré
Dimensions disponibles sur demandeWPS-CA/EP300/I
| Outer diameter | 🔒 |
|---|---|
| Bolt hole circle diameter | 🔒 |
| Number and size of bolt holes | 🔒 |
| Inner circle diameter | 🔒 |
| Number and size of inner holes | 🔒 |
| Backing plate diameter (side view) | φ550 [φ21.78] |
| Hub plate diameter (side view) | 🔒 |
| Center hub diameter (side view) | φ50 [φ1.98] |
| Thickness (δ) | 3.2 [0.126] |
Plan authentique envoyé sur demande · réponse sous un jour ouvré
Dimensions disponibles sur demandeWPS-CA/EP300/II
| Outer diameter (side view) | φ265 [φ10.35] |
|---|---|
| Bolt hole circle diameter | 🔒 |
| Inner circle diameter | 🔒 |
| Number and size of bolt holes | 🔒 |
| Small feature circle diameter | 🔒 |
| Small hole | 🔒 |
| Angular position callout | 90° |
| Molded plate diameter (side view) | φ85 [φ3.35] |
| Center hub diameter (side view) | 🔒 |
| Thickness (δ) | 🔒 |
Plan authentique envoyé sur demande · réponse sous un jour ouvré
Dimensions disponibles sur demandeWPS-CA/EP350/I
| Outer diameter | 🔒 |
|---|---|
| Bolt hole circle diameter | 🔒 |
| Number and size of bolt holes | 🔒 |
| Inner circle diameter | 🔒 |
| Number and size of inner holes | 🔒 |
| Backing plate diameter (side view) | φ410 [φ16.14] |
| Second plate diameter (side view) | 🔒 |
| Third plate diameter (side view) | φ315 [φ12.40] |
| Hub plate diameter (side view) | 🔒 |
| Center hub diameter (side view) | 🔒 |
| Thickness (δ) | 3.2 [0.126] |
Plan authentique envoyé sur demande · réponse sous un jour ouvré
Dimensions disponibles sur demandeWPS-CA/EP350/II
| Outer / mounting circle diameter | 🔒 |
|---|---|
| Inner circle diameter | 🔒 |
| Number and size of bolt holes | 🔒 |
| Small hole offset from center (linear) | 🔒 |
| Molded plate diameter (side view) | φ104 [φ4.09] |
| Center hub diameter (side view) | φ84 [φ3.31] |
| Thickness (δ) | 1.8 [0.07] |
Plan authentique envoyé sur demande · réponse sous un jour ouvré
Dimensions disponibles sur demandeWPS-CA/EP400/I
| Outer diameter | 🔒 |
|---|---|
| Bolt hole circle diameter | 🔒 |
| Number and size of bolt holes | 🔒 |
| Number and size of inner holes | 🔒 |
| Inner circle / active plate diameter (side view) | 🔒 |
| Hub plate diameter (side view) | φ124 [φ4.88] |
| Center hub diameter (side view) | φ100 [φ3.94] |
| Thickness (δ) | 3.2 [0.126] |
Plan authentique envoyé sur demande · réponse sous un jour ouvré
Dimensions disponibles sur demandeWPS-CA/EP400/II
| Outer / mounting circle diameter | 🔒 |
|---|---|
| Inner circle diameter | 🔒 |
| Number and size of bolt holes | 🔒 |
| Small hole offset from center (linear) | 🔒 |
| Molded plate diameter (side view) | φ110 [φ4.33] |
| Center hub diameter (side view) | φ48 [φ1.80] |
| Thickness (δ) | not shown on drawing |
Plan authentique envoyé sur demande · réponse sous un jour ouvré
Kits de réparation de membrane haute performance pour électrovannes à impulsions Xiechang®
🔒 Dimensions disponibles sur demandeDCF-2L-B-01
| Upper plate diameter | Ø32.4 mm |
|---|---|
| Lower plate diameter | Ø28.5 mm |
| Outer diameter | Ø90 mm |
| Bolt circle diameter | Ø75 mm |
| Hole count | 🔒 |
| Hole diameter | Ø6 mm |
| Center offset | 🔒 |
| Diaphragm thickness | 🔒 |
🔒 Dimensions disponibles sur demandeDCF-Y-102S.B-01
| Upper plate diameter | 🔒 |
|---|---|
| Lower plate diameter | 🔒 |
| Outer diameter | 🔒 |
| Bolt circle diameter | Ø186 mm |
| Hole count | 8 |
| Hole diameter | Ø8.5 mm |
| Fillet radius | 5 mm |
| Diaphragm thickness | 1.2 mm |
🔒 Dimensions disponibles sur demandeDCF-Y-102S-01
| Upper plate diameter | 🔒 |
|---|---|
| Lower plate diameter | Ø124 mm |
| Outer diameter | 🔒 |
| Bolt circle diameter | 🔒 |
| Inner circle diameter | Ø194.5 mm |
| Hole count | 12 |
| Hole diameter | Ø9 mm |
| Diaphragm thickness | 1.27 mm |
🔒 Dimensions disponibles sur demandeDCF-Y-115S-01
| Upper plate diameter | Ø130 mm |
|---|---|
| Lower plate diameter | Ø143 mm |
| Outer diameter | Ø241 mm |
| Across flats | 232 mm |
| Bolt circle diameter | 🔒 |
| Lobe radius | 🔒 |
| Hole count | 12 |
| Hole diameter | Ø9 mm |
| Diaphragm thickness | 🔒 |
🔍 Cliquer pour agrandirDCF-Y-102S (assumed)
🔒 Dimensions disponibles sur demandeDCF-Z-102S.B-01
| Upper plate diameter | Ø112 mm |
|---|---|
| Lower plate diameter | Ø120 mm |
| Outer diameter | Ø228 mm |
| Bolt circle diameter | Ø210 mm |
| Hole count | 🔒 |
| Hole diameter | 🔒 |
| Diaphragm thickness | 🔒 |
🔒 Dimensions disponibles sur demandeDCF-Z-20-01
| Upper plate diameter | Ø32 mm |
|---|---|
| Lower plate diameter | Ø34 mm |
| Outer diameter | Ø80 mm |
| Bolt circle diameter | Ø65.5 mm |
| Hole count | 6 |
| Hole diameter | Ø6.5 mm |
| Center offset | 🔒 |
| Diaphragm thickness | 🔒 |
| Weight kg | 🔒 |
🔒 Dimensions disponibles sur demandeDCF-Z-25-01
| Upper plate diameter | 🔒 |
|---|---|
| Lower plate diameter | Ø46 mm |
| Outer diameter | Ø96 mm |
| Bolt circle diameter | Ø82 mm |
| Hole count | 5 |
| Hole diameter | Ø6.5 mm |
| Port diameter | Ø14 mm |
| Port offset | 40 mm |
| Overall length | 🔒 |
| Diaphragm thickness | 🔒 |
🔒 Dimensions disponibles sur demandeDCF-Z-40S-01
| Upper plate diameter | 🔒 |
|---|---|
| Lower plate diameter | Ø62 mm |
| Outer diameter | 🔒 |
| Bolt circle diameter | 🔒 |
| Hole count | 6 |
| Hole diameter | Ø5 mm |
| Overall length | 122 mm |
| Port offset | 47.5 mm |
| Diaphragm thickness | 1.2 mm |
🔒 Dimensions disponibles sur demandeDCF-Z-50S-01
| Upper plate diameter | Ø75 mm |
|---|---|
| Lower plate diameter | Ø76 mm |
| Outer diameter | Ø160 mm |
| Bolt circle diameter | Ø142 mm |
| Hole count | 8 |
| Hole diameter | 🔒 |
| Port offset | 🔒 |
| Diaphragm thickness | 🔒 |
🔒 Dimensions disponibles sur demandeDCF-Z-62S-01
| Upper plate diameter | 🔒 |
|---|---|
| Lower plate diameter | 🔒 |
| Outer diameter | Ø189 mm |
| Bolt circle diameter | 🔒 |
| Hole count | 8 |
| Hole diameter | Ø8 mm |
| Port offset | 81 mm |
| Diaphragm thickness | 1.2 mm |
🔒 Dimensions disponibles sur demandeDCF-Z-76S-01
| Upper plate diameter | Ø101 mm |
|---|---|
| Lower plate diameter | Ø105 mm |
| Outer diameter | Ø200 mm |
| Bolt circle diameter | Ø182 mm |
| Inner circle diameter | 🔒 |
| Hole count | 🔒 |
| Hole diameter | 🔒 |
| Diaphragm thickness | 1.2 mm |
🔒 Dimensions disponibles sur demandeDMY-Ⅱ-80-01
| Upper plate diameter | Ø96 mm |
|---|---|
| Inner bore diameter | 🔒 |
| Mid diameter | 🔒 |
| Outer diameter | 🔒 |
| Bolt circle diameter | Ø198 mm |
| Hole count | 8 |
| Hole diameter | Ø10.5 mm |
| Diaphragm thickness | 1.2 mm |
🔒 Dimensions disponibles sur demandeDCF-Z-25-01-OLD
| Outer diameter | Ø77 mm |
|---|---|
| Bolt circle diameter | Ø74 mm |
| Bore diameter | Ø46 mm |
| Center hole diameter | Ø16 mm |
| Small hole diameter | Ø3 mm |
| Lobe radius | 46.5 mm |
| Section thickness | 🔒 |
| Hole count | 🔒 |
| Hole diameter | Ø6.2 mm |
| Corner radius large | 8 mm |
| Corner radius small | 🔒 |
🔒 Dimensions disponibles sur demandeDCF-TZ-XMP-01
| Hub diameter | Ø24 mm |
|---|---|
| Outer diameter | Ø66 mm |
| Bolt circle diameter | Ø54 mm |
| Hole count | 4 |
| Hole diameter | 🔒 |
| Port offset | 🔒 |
| Diaphragm thickness | 🔒 |
🔒 Dimensions disponibles sur demandeDMY-Ⅲ-250C-01
| Outer diameter | Ø296 mm |
|---|---|
| Hub diameter | Ø73 mm |
| Side view diameter | Ø48 mm |
| Outer hole count | 16 |
| Outer hole diameter | 🔒 |
| Inner hole count | 🔒 |
| Inner hole diameter | Ø8 mm |
| Diaphragm thickness | 🔒 |
🔒 Dimensions disponibles sur demandeDMY-Ⅲ-250C-02
| Outer diameter | Ø200 mm |
|---|---|
| Bolt circle diameter | Ø182 mm |
| Center plate diameter | Ø80 mm |
| Hub diameter | Ø38 mm |
| Bolt hole diameter | 🔒 |
| Bolt hole count | 🔒 |
| Top hole offset | 25 mm |
| Thickness | 🔒 |
🔒 Dimensions disponibles sur demandeDMY-Ⅲ-300C-01
| Outer diameter | Ø350 mm |
|---|---|
| Center plate diameter | 🔒 |
| Hub diameter | 🔒 |
| Bolt circle diameter | 🔒 |
| Inner diameter | Ø180 mm |
| Bolt hole diameter | Ø9 mm |
| Bolt hole count | 16 |
| Thickness | 3.2 mm |
🔒 Dimensions disponibles sur demandeDMY-Ⅲ-300C-02
| Outer diameter | 🔒 |
|---|---|
| Bolt circle diameter | Ø172 mm |
| Center plate diameter | Ø85 mm |
| Hub diameter | Ø38 mm |
| Bolt hole diameter | Ø10 mm |
| Bolt hole count | 8 |
| Center hole diameter | Ø3 mm |
| Fillet radius | 25 mm |
| Hole angle | 🔒 |
| Thickness | 🔒 |
🔒 Dimensions disponibles sur demandeDMY-Ⅲ-350C-01
| Outer diameter | Ø410 mm |
|---|---|
| Center plate diameter | 🔒 |
| Hub diameter | Ø100 mm |
| Bolt circle diameter | Ø370 mm |
| Inner circle diameter | Ø310 mm |
| Bolt hole diameter | Ø22 mm |
| Bolt hole count | 20 |
| Inner hole diameter | Ø12 mm |
| Inner hole count | 🔒 |
| Thickness | 🔒 |
🔒 Dimensions disponibles sur demandeDMY-III-350C-02
| Outer diameter | Ø235 mm |
|---|---|
| Bolt circle diameter | Ø208 mm |
| Center plate diameter | Ø104 mm |
| Hub diameter | Ø48 mm |
| Bolt hole diameter | 🔒 |
| Bolt hole count | 🔒 |
| Hole spacing | 32 |
| Thickness | 🔒 |
🔒 Dimensions disponibles sur demandeDMY-Ⅲ-400C-01
| Outer diameter | Ø483 mm |
|---|---|
| Center plate diameter | 🔒 |
| Hub diameter | 🔒 |
| Bolt circle diameter | 🔒 |
| Inner circle diameter | Ø365 mm |
| Bolt hole diameter | Ø20 mm |
| Bolt hole count | 24 |
| Inner hole diameter | Ø14 mm |
| Inner hole count | 8 |
| Thickness | 3.2 mm |
🔒 Dimensions disponibles sur demandeDMY-Ⅲ-400C-04
| Outer diameter | 🔒 |
|---|---|
| Bolt circle diameter | 🔒 |
| Center plate diameter | Ø110 mm |
| Hub diameter | 🔒 |
| Bolt hole diameter | Ø9 mm |
| Bolt hole count | 8 |
| Hole spacing | 32 |
| Thickness | 1.8 mm |
🔒 Dimensions disponibles sur demandeDMY-Ⅲ-200C-01
| Outer ring diameter | Ø505 mm |
|---|---|
| Bolt circle diameter | Ø465 mm |
| Inner circle diameter | Ø270 mm |
| Side view outer diameter | Ø206 mm |
| Hub diameter | Ø127 mm |
| Center hole diameter | Ø5 mm |
| Bolt hole diameter | 🔒 |
| Bolt hole count | 🔒 |
| Thickness | 🔒 |
Série complète d'électrovannes à impulsions
🔒 Dimensions disponibles sur demandeXC-PGQ-Y40S
| Inner bore | Ø44.7 mm |
|---|---|
| Thread section length | 🔒 |
| Chamfer | 3 mm |
| Inner length | 240 mm |
| Overall length | 300 mm |
| Tube diameter | Ø60 mm |
| Connector height | 54 mm |
| Nozzle bore | Ø47 mm |
| Nozzle diameter | 🔒 |
| Flange diameter | 🔒 |
🔒 Dimensions disponibles sur demandeXC-PGQ-Y25
| Inner bore | Ø31 mm |
|---|---|
| Thread section length | 20 mm |
| Chamfer | 3 mm |
| Inner length | 184 mm |
| Overall length | 🔒 |
| Tube diameter | Ø48 mm |
| Connector height | 47 mm |
| Nozzle bore | Ø33 mm |
| Nozzle diameter | 🔒 |
| Flange diameter | 🔒 |

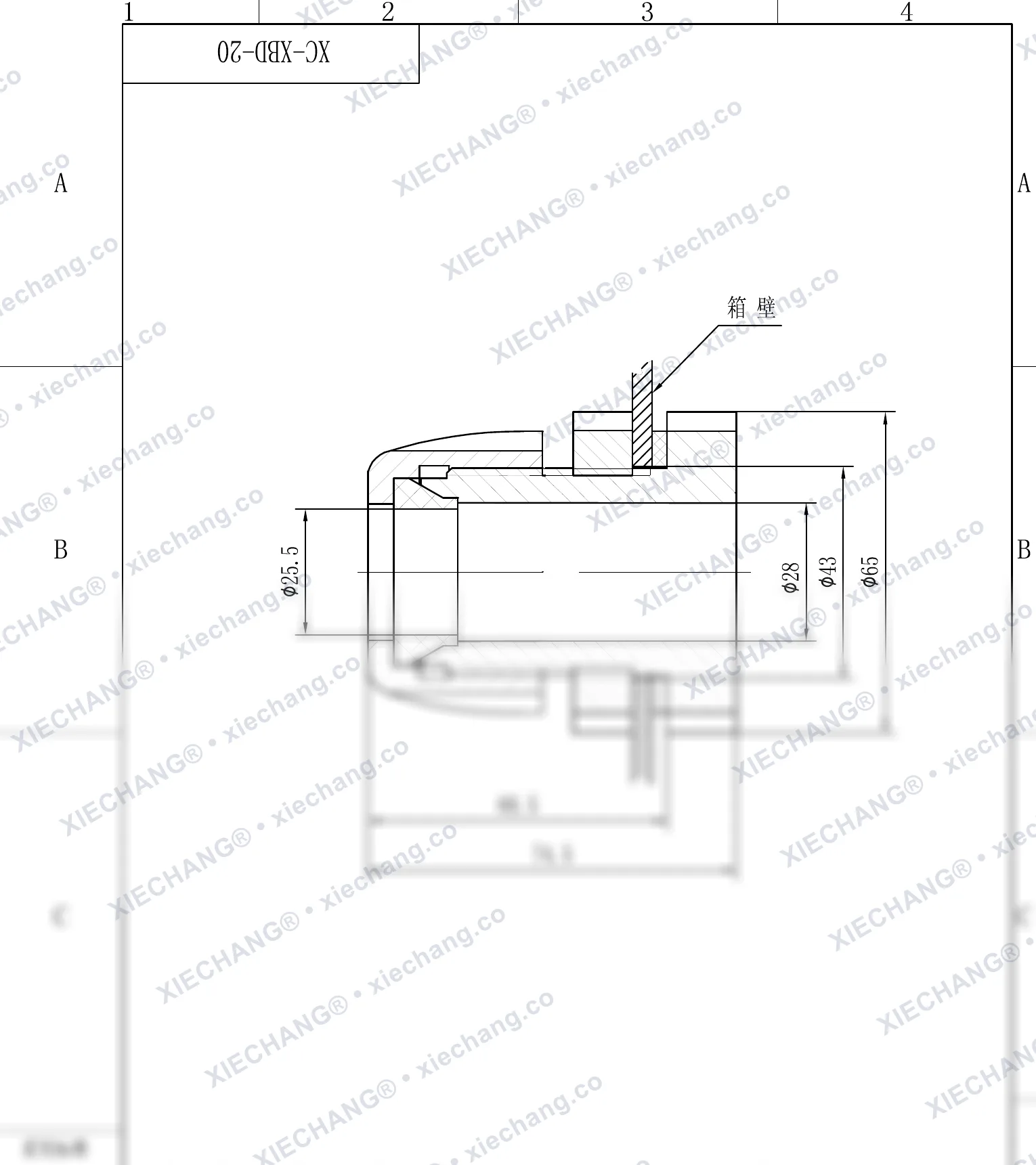

🔒 Dimensions disponibles sur demandeXC-XBD-20
| Bore diameter | 🔒 |
|---|---|
| Inner diameter | 🔒 |
| Mid flange diameter | 🔒 |
| Outer flange diameter | Ø65 mm |
| Inner length | 60.5 mm |
| Overall length | 74.5 mm |
🔒 Dimensions disponibles sur demandeXC-XBD-25
| Bore diameter | Ø32.5 mm |
|---|---|
| Inner diameter | Ø34 mm |
| Mid flange diameter | 🔒 |
| Outer flange diameter | Ø77 mm |
| Inner length | 🔒 |
| Overall length | 🔒 |
🔒 Dimensions disponibles sur demandeXC-XBD-40
| Bore diameter | Ø47 mm |
|---|---|
| Inner diameter | 🔒 |
| Mid flange diameter | 🔒 |
| Outer flange diameter | 🔒 |
| Inner length | 62.2 mm |
| Overall length | 76.2 mm |
| Weight kg | 0.5 mm |

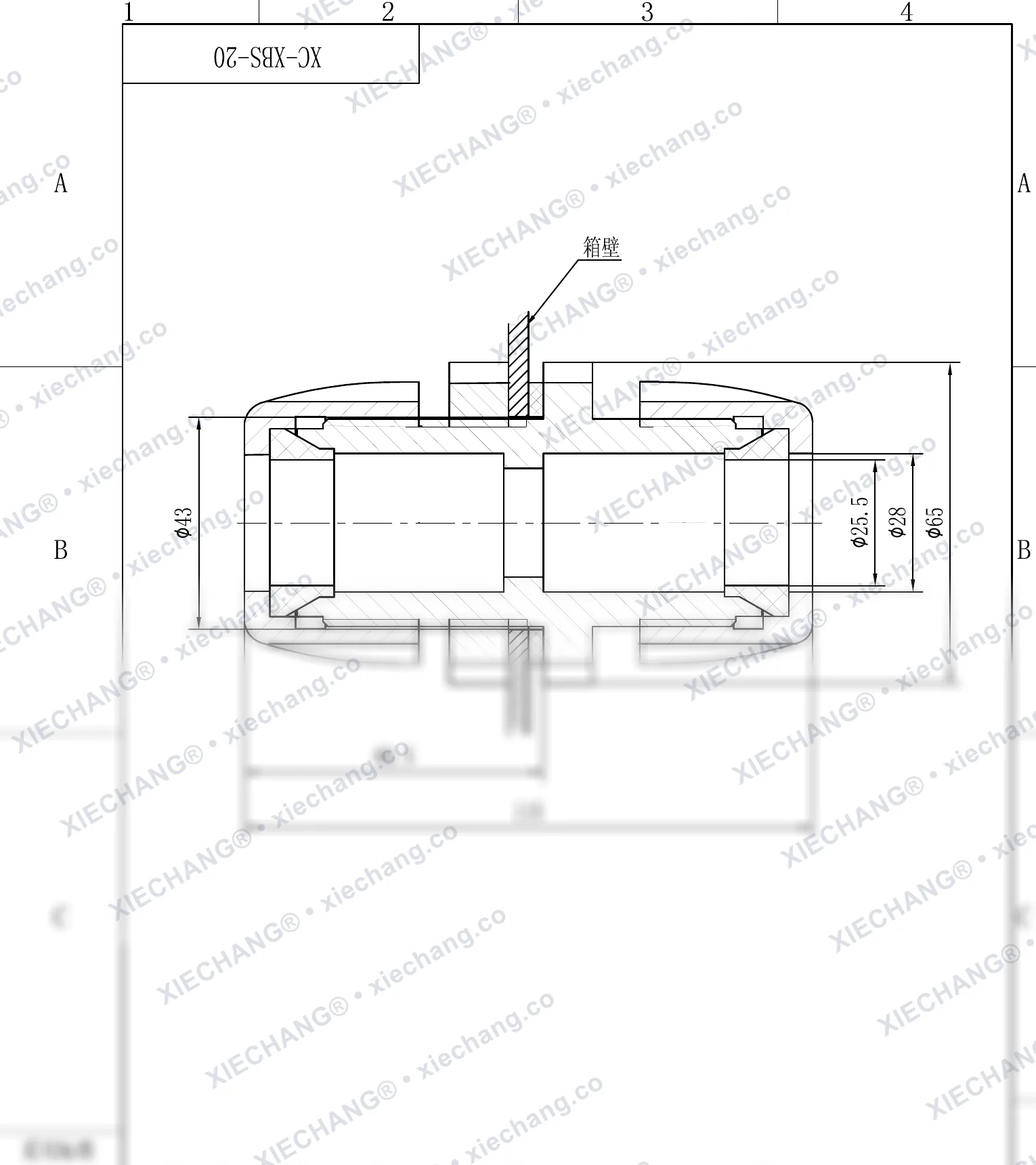

🔒 Dimensions disponibles sur demandeXC-XBS-20
| Bore diameter | Ø25.5 mm |
|---|---|
| Inner diameter | 🔒 |
| End flange diameter | Ø43 mm |
| Outer flange diameter | Ø65 mm |
| Inner length | 🔒 |
| Overall length | 🔒 |
🔒 Dimensions disponibles sur demandeXC-XBS-25
| Bore diameter | 🔒 |
|---|---|
| Inner diameter | 🔒 |
| End flange diameter | Ø55 mm |
| Outer flange diameter | 🔒 |
| Inner length | 62.4 mm |
| Overall length | 115 mm |
| Weight kg | 0.635 mm |
🔒 Dimensions disponibles sur demandeXC-XBS-40
| Bore diameter | 🔒 |
|---|---|
| Inner diameter | Ø50 mm |
| End flange diameter | 🔒 |
| Outer flange diameter | 🔒 |
| Inner length | 62.2 mm |
| Overall length | 120 mm |
| Weight kg | 0.72 mm |
🔒 Dimensions disponibles sur demandeW11-150-155
| Flange diameter | 🔒 |
|---|---|
| Throat mouth diameter | Ø100 mm |
| Outlet diameter | Ø69 mm |
| Throat diameter | Ø63 mm |
| Overall length | 🔒 |
| Flange thickness | 🔒 |
🔒 Dimensions disponibles sur demandeMM113
| Overall height | 207 mm |
|---|---|
| Inlet flange length | 27 mm |
| Inlet flange thickness | 6.5 mm |
| Seat height | 35 mm |
| Mounting height | 40 mm |
| Inner bore diameter | Ø114 mm |
| Seal diameter | 🔒 |
| Mid flange diameter | Ø191 mm |
| Outer flange diameter | 🔒 |
| Bolt circle diameter | 🔒 |
| Bolt holes | 6-Φ11 |
| Diaphragm cover width | 221 mm |
| Mounting spacing | 225 mm |
| Nozzle outer diameter | Ø249 mm |
| Nozzle flange diameter | Ø227 mm |
| Nozzle bore 195 | Ø195 mm |
| Nozzle bore 180 | Ø180 mm |
| Nozzle fit diameter | Ø113 mm |
| Nozzle tube diameter | Ø114 mm |
| Nozzle tube wall | 5 mm |
| Nozzle spigot diameter | Ø194 mm |
| Nozzle depth | 45 mm |
🔒 Dimensions disponibles sur demandeXC-XBD-20
| Seamless tube diameter | Ø27 mm |
|---|---|
| Bulkhole diameter | 🔒 |
| Bore diameter | Ø25.5 mm |
| Inner diameter | Ø28 mm |
| Inner length | 🔒 |
| Overall length | 🔒 |

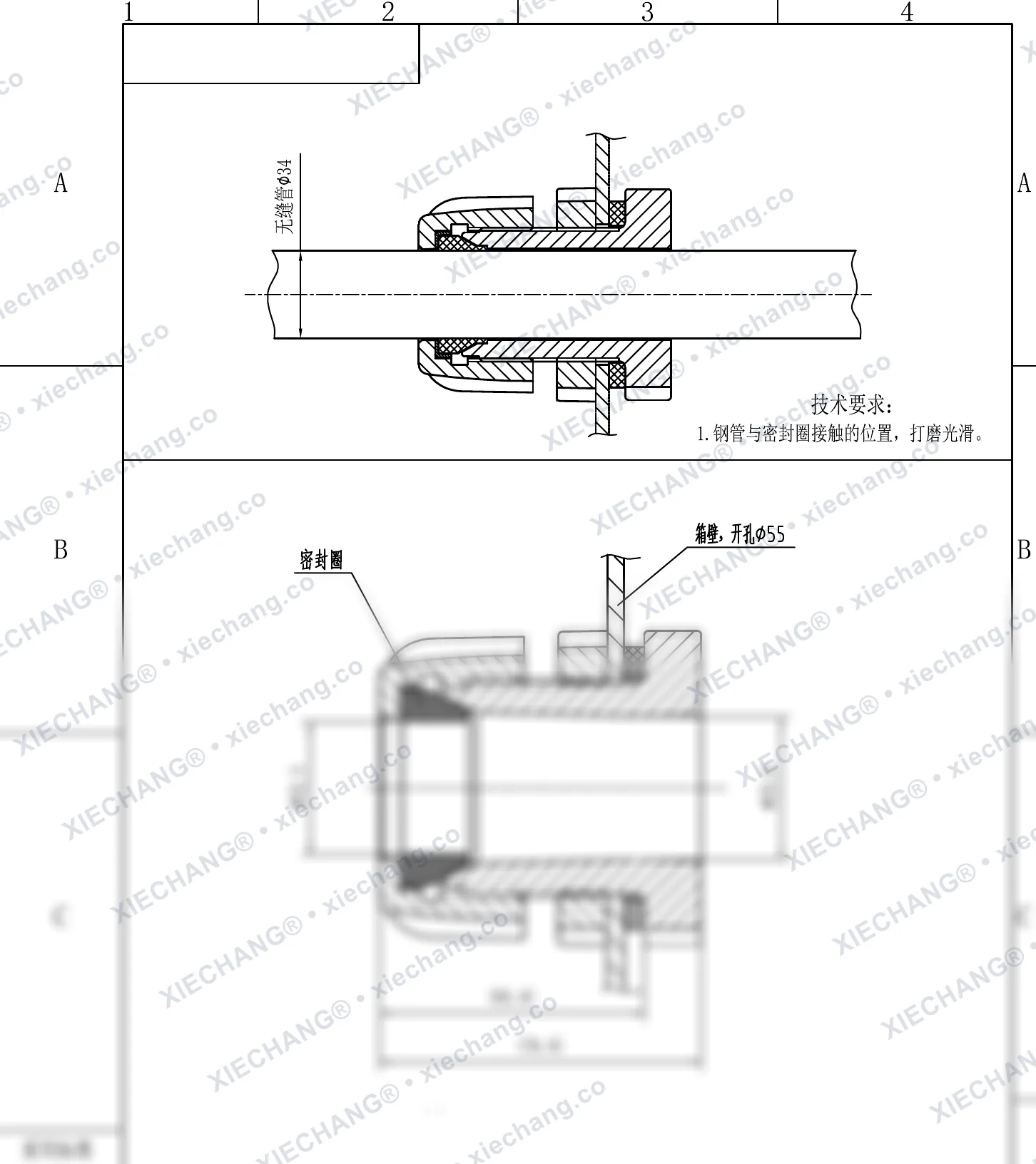

🔒 Dimensions disponibles sur demandeXC-XBD-25
| Seamless tube diameter | 🔒 |
|---|---|
| Bulkhole diameter | Ø55 mm |
| Bore diameter | 🔒 |
| Inner diameter | 🔒 |
| Inner length | 65.6 mm |
| Overall length | 76.6 mm |

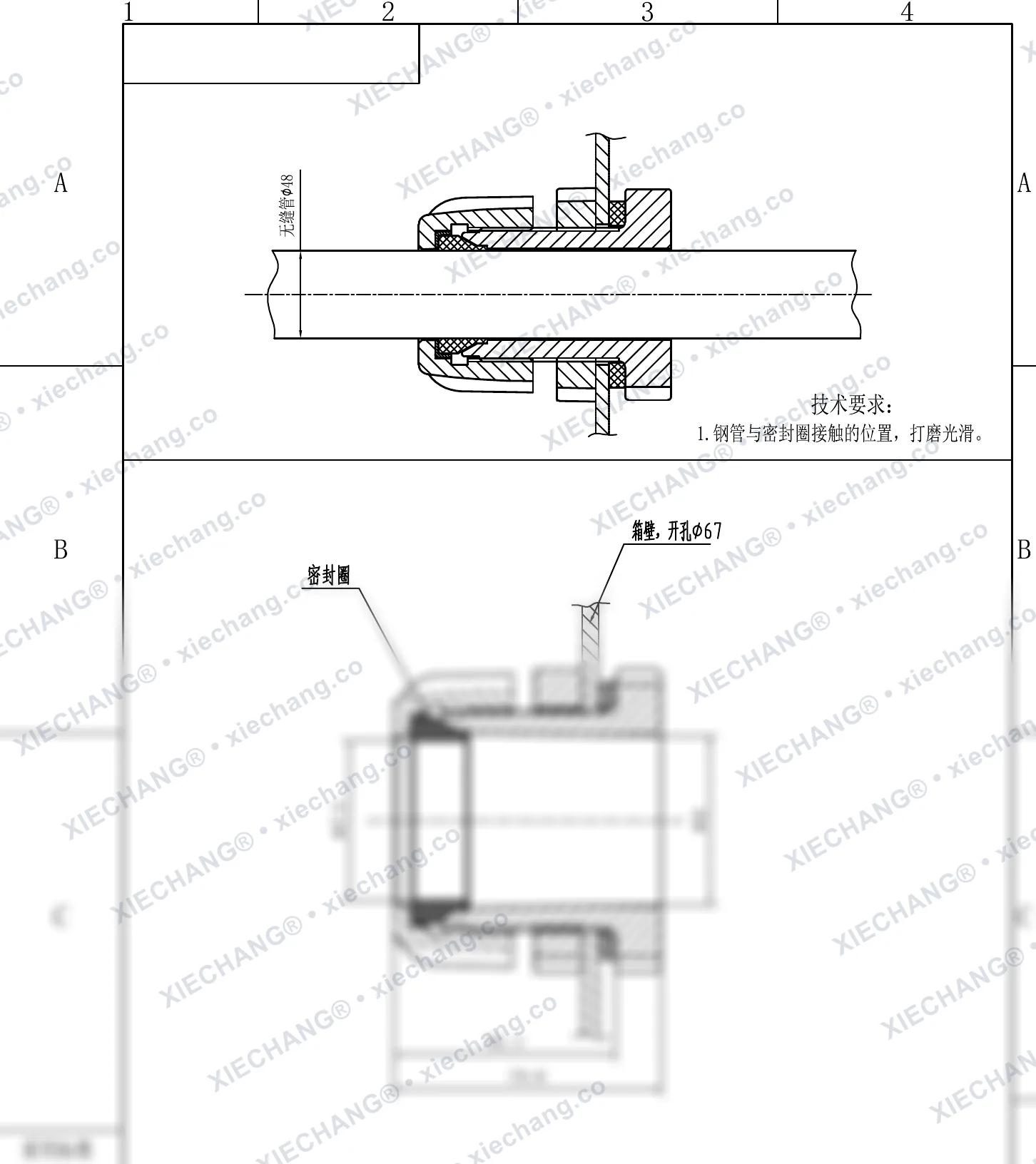

🔒 Dimensions disponibles sur demandeXC-XBD-40
| Tube outer diameter | 🔒 |
|---|---|
| Box wall hole | 67 mm |
| Flange diameter | Ø50 mm |
| Inner bore | Ø47 mm |
| Body length | 🔒 |
| Overall length | 🔒 |
🔒 Dimensions disponibles sur demandeXC-XBS-20
| Tube outer diameter | Ø27 mm |
|---|---|
| Box wall hole | 43 mm |
| Port diameter | Ø25.5 mm |
| Thread length 1 | 42 mm |
| Thread length 2 | 46 mm |
| Wall thickness | 🔒 |
| Body length | 🔒 |
| Overall length | 🔒 |

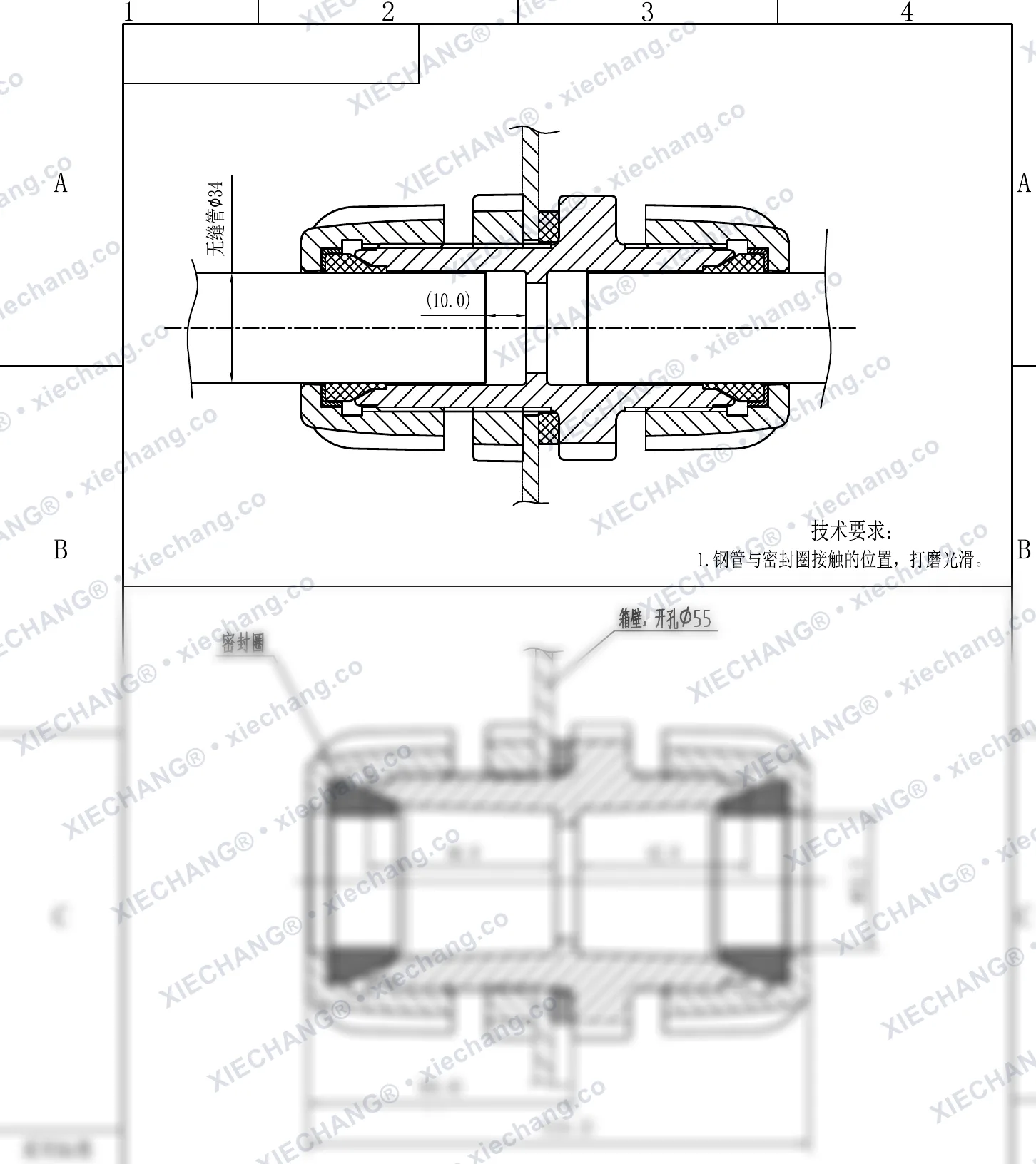

🔒 Dimensions disponibles sur demandeXC-XBS-25
| Tube outer diameter | 🔒 |
|---|---|
| Box wall hole | 🔒 |
| Port diameter | 🔒 |
| Thread length 1 | 46 mm |
| Thread length 2 | 42 mm |
| Wall thickness | 10 mm |
| Body length | 65.6 mm |
| Overall length | 124.2 mm |

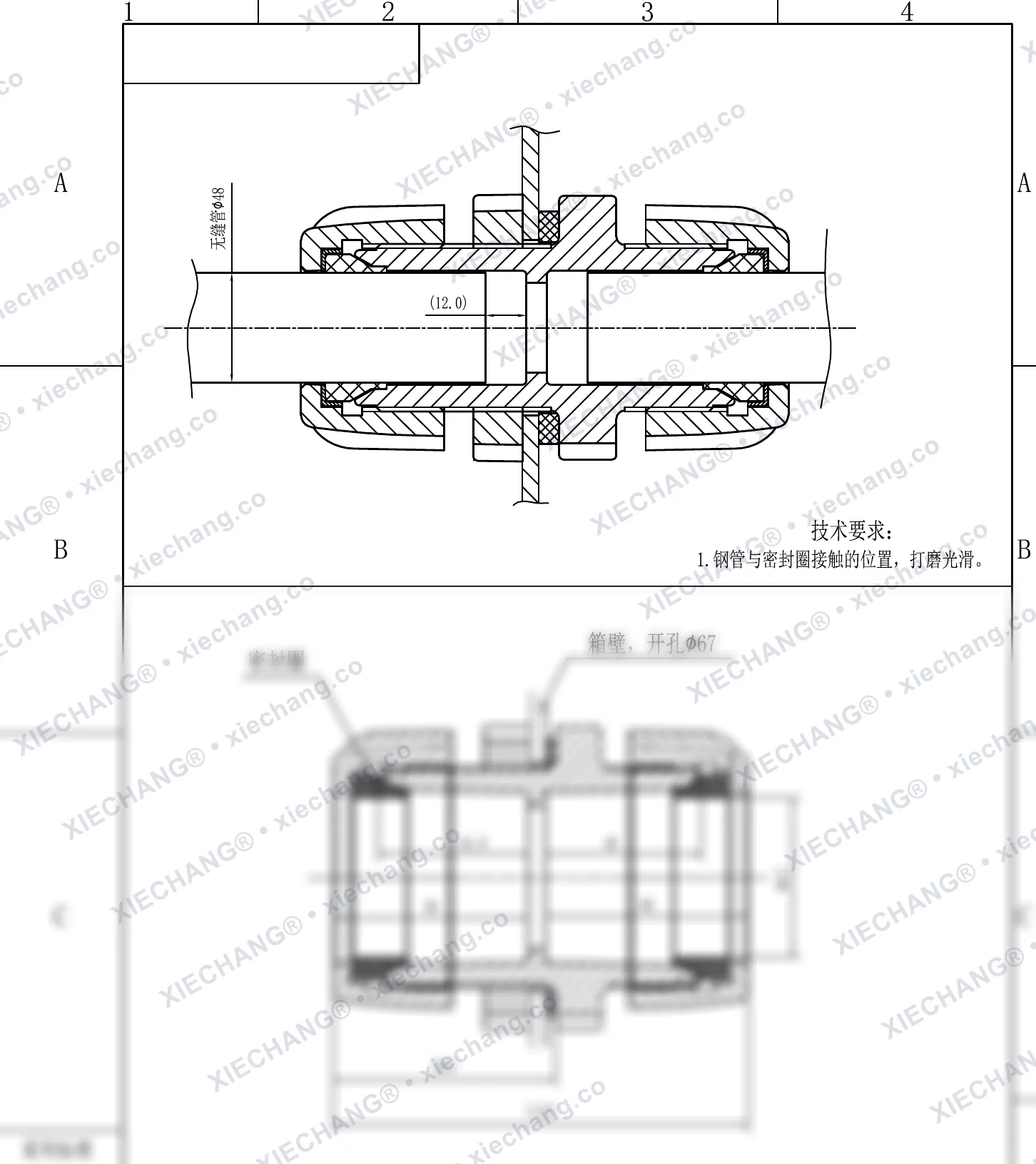

🔒 Dimensions disponibles sur demandeXC-XBS-40
| Tube outer diameter | Ø48 mm |
|---|---|
| Box wall hole | 🔒 |
| Port diameter | Ø47 mm |
| Thread length 1 | 44 mm |
| Thread length 2 | 46 mm |
| Body length 1 | 58 mm |
| Body length 2 | 60 mm |
| Wall thickness | 12 mm |
| Body length | 🔒 |
| Overall length | 🔒 |
Autres plans
🔒 Dimensions disponibles sur demandeDCF-TZ-XQA-F-00 (24V)
| Overall length | 🔒 |
|---|---|
| Body height | 🔒 |
| Body width | 🔒 |
| Mount hole diameter | Ø13.5 mm |
| Thread length | 14 mm |
